2-STROKE POWERHEAD GASKETS & SEAL KITS
ALL 2-STROKE GASKET KITS INCLUDE CRANK SEALS

YAMAHA GASKET SETS & HEAD GASKETS
HP & MODEL MODEL YEAR # CYL. POWERHEAD GASKET KIT HEAD
GASKET
9.9 & 15 HP 1984-97 2 4411 3828
25 & 30 HP 2-cyl 1984-87 2 2333 3804
25 HP 2-cyl 1988-94 2 4422 3847
C25, CV25 1990-93 2 4417 3849
25 HP 3-cyl 1996-99 3 4425 3829
30 HP 3-cyl 1987-93 3 4425 3829
40 HP (except C40)
50 HP, P50 (exc. below)		 1984-UP 3 2144 3830
C40 (6R6) 1991 2 4414 3892
C40 1992-93 2 4413 18-3892
50 1992-93 2 4409 3830
PRO 50, 50 (6H5) 1984-94 3 2144 3830
CV55, C55 1989, 1991-94 2 4418 3848
60, 70 HP 1984-98 3 2145 3831
75, 80, 85, 90 HP
90 (6H1)		 1984-UP 3 2157 3805
C85E
 1989-UP
 3 4418 3848
HP & MODEL MODEL YEAR # CYL. POWERHEAD GASKET KIT HEAD
GASKET
V4 115 HP,
V4 130 HP 		1986-UP
1988-UP		 4 2120 3832
150, 275, 200 HP  HPDI 2.6L 90° BLOCK 6 2850 3893
150 - 200 HP  EFI 2.6L 90° BLOCK
1999-UP		 6 2849-1 3894
V6 150 HP (CARB & EFI)
PRO V 150
175
200 90° BLOCK
225 90° BLOCK		 1984-98
1986-88
1984-87
1984-87
1990-94		 6 2849 3894
200, 225 HP
L250 (61A), 250 (61B) 		76° BLOCK 1990, 1992-01
76° BLOCK CARB ONLY		 6 4400 3891
225, 250 HP ALL EFI 0X66 76° BLOCK 6 4400-1 3891
225-250 HP  3.3L  HPDI 2000-UP 6 2850-1 3890
300 HP  3.3L  HPDI 2000-UP 6 2850-2 3890
 POWERHEAD GASKET KITS CONTAIN ALL NECESSARY O-RINGS AND CRANK SEALS.
DON'T SEE WHAT YOU NEED? JUST ASK.
 QUICK QUOTE FORM

YAMAHA HEAD GASKETS
DESCRIPTION PART # PRICE ORDER
HEAD GASKET
REPLACES YAMAHA
689-11181-02-00		 3804
Click Image For Larger
 $39.95
HEAD GASKET
REPLACES YAMAHA
688-11181-AG-00 		3805
Click Image For Larger
 $
HEAD GASKET
REPLACES YAMAHA
6E7-11181-A1-00 		3828
Click Image For Larger
$13.50
HEAD GASKET
REPLACES YAMAHA
6J8-11181-A1-00 		3829
Click Image For Larger
$21.50
HEAD GASKET
REPLACES YAMAHA
6H4-11181-00-00		 3830
Click Image For Larger
$
HEAD GASKET
REPLACES YAMAHA
6H3-11181-01-00		 3831
Click Image For Larger
 $31.65
HEAD GASKET
REPLACES YAMAHA
6E5-11181-02-00		 3832
Click Image For Larger
 $
HEAD GASKET
REPLACES YAMAHA
6L2-11181-A1-00		 3847
Click Image For Larger
 $
HEAD GASKET
REPLACES YAMAHA
697-11181-A0-00		 3848
Click Image For Larger
 $21.50
HEAD GASKET
REPLACES YAMAHA
695-11181-A1-00		 3849
Click Image For Larger
 $32.00

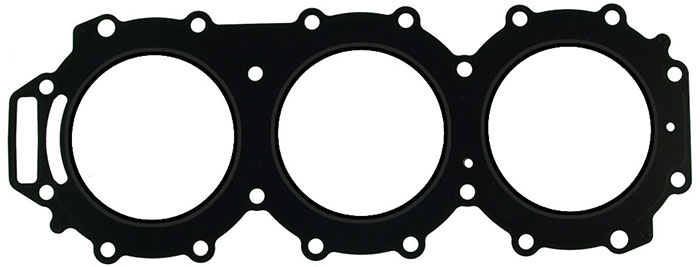

HEAD GASKET 3.3L HPDI
REPLACES YAMAHA
6D0-11181-00-00		 3890
Click Image For Larger
 $58.20
HEAD GASKET 76° V6
REPLACES YAMAHA
61A-11181-00-A0		 3891
Click Image For Larger
 $58.20
HEAD GASKET
REPLACES YAMAHA
676-11181-A1-00		 18-3892
Click Image For Larger
 $
HEAD GASKET
90° V6 HPDI
REPLACES YAMAHA
68F-11181-00-00		 3893
Click Image For Larger
 $48.40
HEAD GASKET 90° V6
REPLACES YAMAHA
6G5-11181-A0		 3894
Click Image For Larger
 $33.75
YAMAHA GASKET SETS
 INCLUDES HEAD GASKETs or O-RINGS AND SEALS
GASKET SET
REPLACES YAMAHA
6F3-W0001-04-00,
6F3-W0001-A4-00,		 2120
Click Image For Larger
$
GASKET SET
REPLACES YAMAHA
63D-W0001-00-00		 2144-1
Click Image For Larger
$81.00
GASKET SET
REPLACES YAMAHA
6H4-W0001-01-00,
6H4-W0001-A1-00		 2144
Click Image For Larger
$88.00
GASKET SET
REPLACES YAMAHA
6H3-W0001-00-00,
6H3-W0001-A0-00		 2145
Click Image For Larger
$91.00
GASKET SET
REPLACES YAMAHA
6H1-W0001-00-00,
6H1-W0001-A0-00		 2157
Click Image For Larger
$
GASKET SET
REPLACES YAMAHA
689-W0001-04-00,
689-W0001-A4-00		 2333
Click Image For Larger
$61.25
GASKET SET
REPLACES YAMAHA
6G5-W0001-03-00,
6G5-W0001-A3-00		 2849
Click Image For Larger
 $191.87
GASKET SET
REPLACES YAMAHA
67H-W0001-00-00		 2849-1
Click Image For Larger
 $220.27
GASKET SET
REPLACES YAMAHA
68F-W0001-01-00		 2850
Click Image For Larger
 $258.95
GASKET SET HPDI
REPLACES YAMAHA
60V-W0001-00-00 		2850-1
$310.24
GASKET SET
REPLACES YAMAHA
6D0-W0001-01-00		 2850-2 $0.00
GASKET SET
REPLACES YAMAHA
61A-W0001-01-00,
61A-W0001-A1-00		 4400
Click Image For Larger
$213.48
GASKET SET
REPLACES YAMAHA
65L-W0001-02-00		 4400-1
Click Image For Larger
$219.30
GASKET SET
REPLACES YAMAHA
6H4-W0001-04-00		 4409
Click Image For Larger
 $
GASKET SET
REPLACES YAMAHA
6E7-W0001-01-00
68F-W0001-01-00
 4411
Click Image For Larger
 $168.50
GASKET SET
REPLACES YAMAHA
6R6-W0001-01-00		 4413
Click Image For Larger
 $126.00
GASKET SET
REPLACES YAMAHA
6R6-W0001-02-00		 4414
Click Image For Larger
 $
GASKET SET
REPLACES YAMAHA
695-W0001-A2-00		 4417
Click Image For Larger
 $
GASKET SET
REPLACES YAMAHA
697-W0001-00-00,
697-W0001-A0-00		 18-4418
Click Image For Larger
 $
GASKET SET
REPLACES YAMAHA
6L2-W0001-02-00		 4422-1
Click Image For Larger
 $171.85
GASKET SET
REPLACES YAMAHA
6J8-W0001-01-00		 4425
Click Image For Larger
 $
DON'T SEE WHAT YOU NEED? JUST ASK.
 QUICK QUOTE FORM
QUICK SECURE ORDER FORM

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
