CARB KITS

GEARCASE SEAL KITS

Here's a listing of what we have available in these aftermarket parts for SUZUKI outboards.
Those not listed are OEM ONLY and are not available to us at this time. They must be ordered from a franchised Suzuki dealer.

Need help with your carburetor?
Try our carburetor help pages #1 and #2 or our carb tech data page.

Concerned about your gearcase or water pump? Try our gearcase tips page.

Please Note: Carb kits are 1 per carburetor. If you have more than 1 carburetor then you need more than 1 kit.

SUZUKI CARBURETOR KIT APPLICATION

MODEL YEAR(S) CARB KIT
DF4, DF6  2005 & UP 18-7761
DT 25C
DT 30C
All Model Years 2-STROKE
All Model Years 2-STROKE
18-7755
DF 25
DF 30
All Model Years 4-STROKE
All Model Years 4-STROKE
18-7773
DT 35
DT 40
1987 - 1989
1980 - 1998
18-7753
DT 55   1985 - 1997 18-7754
DT 65   1985 - 1997 18-7753
DT 75   1983 - 1997 18-7754
DT 85   1980 - 2000 18-7753
DT 90
DT 100
1989 - 1997
18-7752
DT 115 1989 - 2001 18-7754
DT 140 1981 - 2001 18-7753
DT 150
DT 175
DT 200
1986 - 1994
1987 - 1992
1986 - 1992
18-7752



SUZUKI GEARCASE SEAL KIT APPLICATION

 2-STROKE
HP & MODEL YEARS SUZUKI NUMBER SEAL KIT
DT20 & Smaller --- None None
DT25C
DT30C
1989-2000
1988-97
25700-95D00
25700-95D01
18-8341
DT40C 1984-98 25700-94400 18-8337
DT55, DT65 1985-97 25700-94700 18-8339
DT75 1985-97 25700-95501 18-8340
DT85 1985-98 25700-95501 18-8340
DT90 1989-97 25700-87E00 18-8336
DT100 1989-00 25700-87E00 18-8336
DT115, DT140 1986-98 25700-94500 18-8338
V6 2-stroke ALL 25700-87000 18-3335


 4-STROKE
HP & MODEL YEARS SUZUKI NUMBER SEAL KIT
DF20 & Smaller --- None None
DF25
EXCEPT V-TWIN DF30
ALL 25700-95D01 18-8341
DF 25 V-Twin ALL 25700-95J00 18-8385
DT40C
DF40
DF40A
DF50
DF50A
ALL 25700-94400
25700-88L00
18-8337
DF50A, DF60A
STD Gearcase
2010 - UP 25700-88L00 18-8337
DF50A, DF60A
TYPE-V Gearcase
2010 - UP 25700-99E00 18-8381
DF60
DF70
  1998 - 2000
1998 - 2000
25700-87E00 18-8336
DF60
DF70
2001- 2008 25700-99E00 18-8381
DF70
DF80A
DF90A
2009 -UP 25700-87L00 Dealer-Only
DF100
DF115
ALL 25700-90J01 18-8373
DF115A
DF140, DF140A
2011 - UP
ALL
25700-92J00 18-8374
DF150
DF175
DF200
DF225
DF250 STD case
ALL 25700-93J00 18-8380
DF250 TYPE S case
DF300
  25700-98J00 18-8386
DF250A
DF300A
ALL 25700-93L00 Dealer-Only

SUZUKI CARB KITS AND GEARCASE SEAL KITS
DESCRIPTION PART # PRICE SELECT

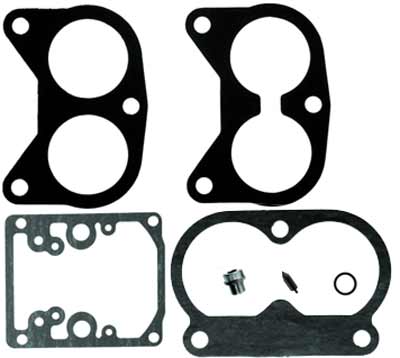

CARB KIT
Repl. Suzuki
13910-87D00
18-7752

13910-87D00 18-7752
Click Image For Larger
$36.00

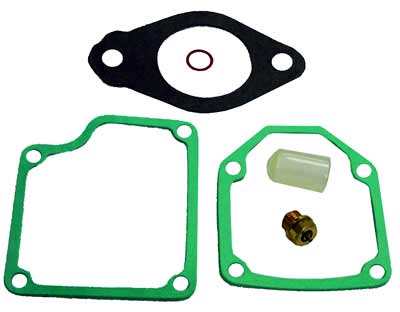

CARB KIT
Repl. Suzuki
13910-94400
18-7753

13910-94400 18-7753
Click Image For Larger
$32.00
CARB KIT
Repl. Suzuki
13910-94701
18-7754

13910-94701 18-7754
Click Image For Larger
$31.00
CARB KIT
Repl. Suzuki
13910-95D00
18-7755

13910-95D00 18-7755
Click Image For Larger
$46.00

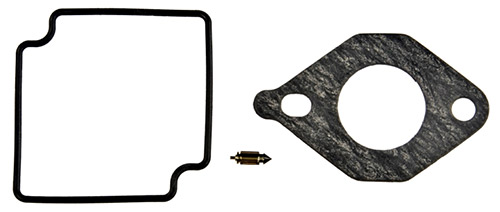

CARB KIT
Suzuki makes
no kit
18-7761

13910-95D00 18-7755
Click Image For Larger
$46.50

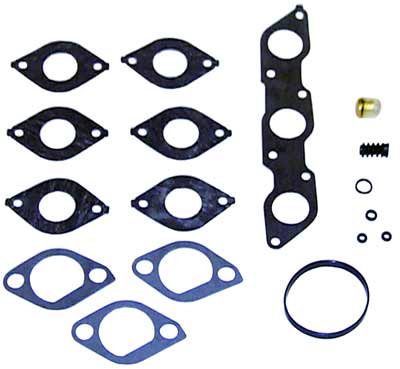

CARB KIT
Repl. Suzuki
13910-89J01
18-7773

13910-89J01 18-7773
Click Image For Larger
$53.00

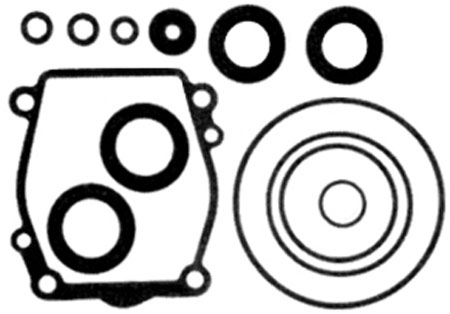

G.C. SEAL KIT
Repl. Suzuki 25700-87D00
18-8335

25700-87D00
Click Image For Larger
$35.00

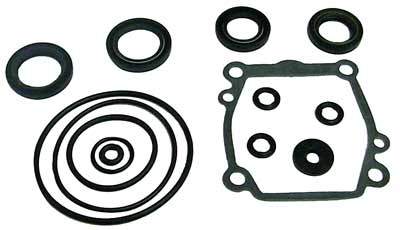

G.C. SEAL KIT
Repl. Suzuki 25700-87E00
18-8336

25700-87E00
Click Image For Larger
$35.00

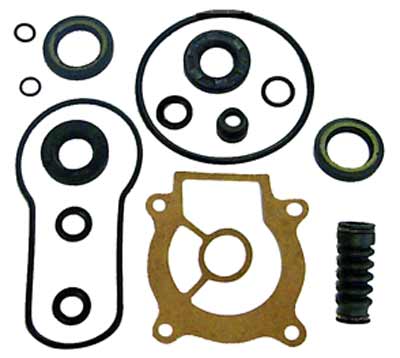

G.C. SEAL KIT
Repl. Suzuki 25700-88L00,
25700-94400
18-8337

25700-88L00
Click Image For Larger
$32.00

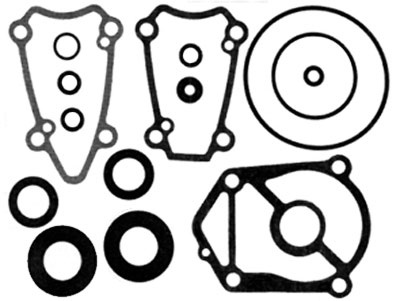

G.C. SEAL KIT
Repl. Suzuki 25700-94500
18-8338

25700-94500
Click Image For Larger
$41.25

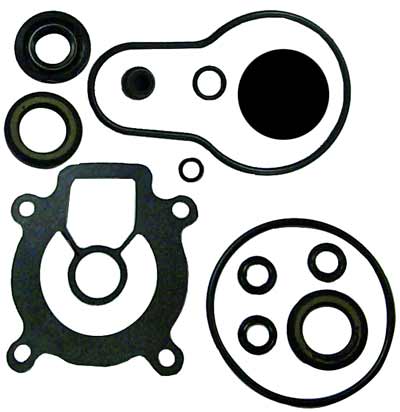

G.C. SEAL KIT
Repl. Suzuki 25700-94700
18-8339

25700-94700
Click Image For Larger
$29.00

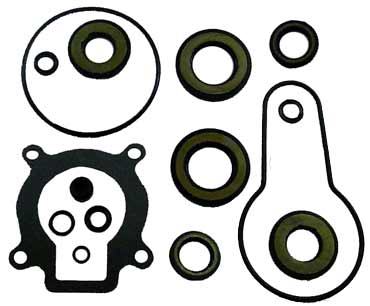

G.C. SEAL KIT
Repl. Suzuki 25700-95500,
25700-95501
18-8340

25700-95500
Click Image For Larger
$39.00

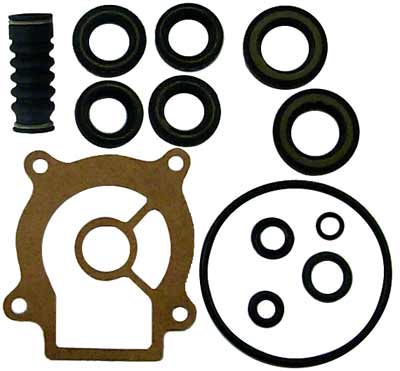

G.C. SEAL KIT
Repl. Suzuki 25700-95D00,
25700-95D01
18-8341


Click Image For Larger
$43.00

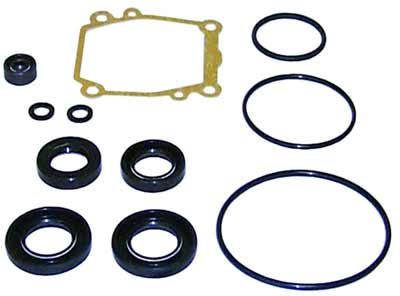

G.C. SEAL KIT
Repl. Suzuki 25700-90J01
18-8373

25700-90J01
Click Image For Larger
$41.50
G.C. SEAL KIT
Repl. Suzuki 25700-92J00
18-8374

25700-92J00
Click Image For Larger
$42.50

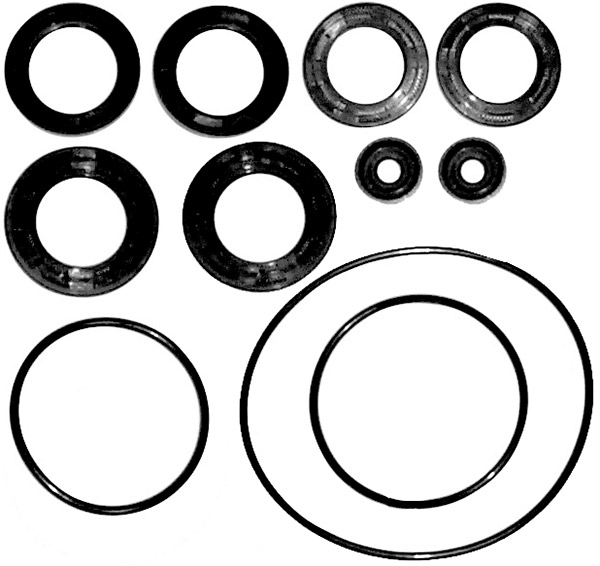

G.C. SEAL KIT
Repl. Suzuki 25700-93J00
18-8380

25700-95J00
Click Image For Larger
$45.00

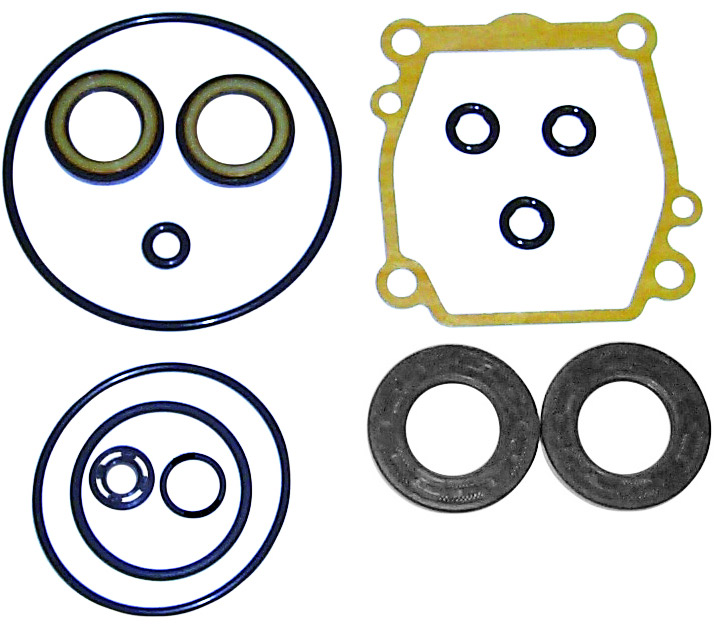

G.C. SEAL KIT
Repl. Suzuki 25700-95J00
18-8381

25700-95J00
Click Image For Larger
$45.50

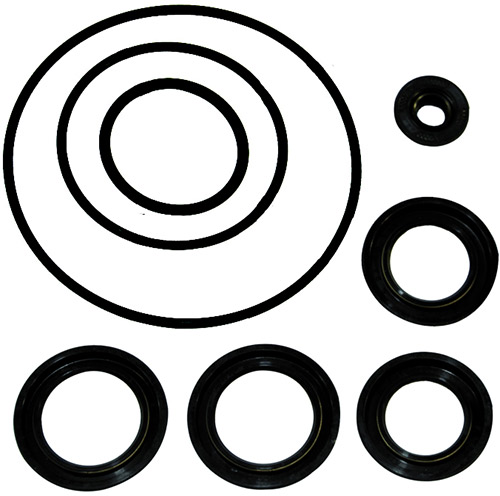

G.C. SEAL KIT
Repl. Suzuki 25700-98J00
18-8386

25700-95J00
Click Image For Larger
$35.50



DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
