MERCURY MARINER LOGO

OUTBOARD STARTERS

Having problems with your starter? Try our starter tips page.

MASTERTECH presents quality electrical components by premier AMERICAN aftermarket manufacturers of marine starters, drives, and associated equipment. I also have the complete line of PERSONAL WATERCRAFT, INBOARD and I/O starters and associated components. Please call for details.

STARTERS LISTED FOR COMMON MODELS, OTHERS AVAILABLE
MASTERTECH RECOMMENDS REPLACING THE STARTER SOLENOID ALONG
WITH THE STARTER TO PROLONG THE LIFE OF THE NEW STARTER.
STARTER SOLENOIDS ARE LISTED HERE


MODEL YEAR or SERIAL IMAGE (click for fullsize) PART NUMBER ORDER
6-15 HP
18-25 HP		 1986-96

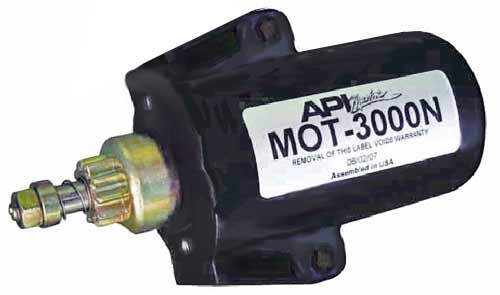

1980-87		 50-90983A, MOT3000N
 MOT3000N
OEM 50-90983A1, 50-8M0033984
10 tooth drive gear 		$99.00
8, 9.9, 13.5, 15 HP
4-STROKE		 thru 1999 50-859168T, 50-852570, MOT3022N MOT3022N
9 tooth drive gear
OEM 50-852570, 50-852570T,
50-857065, 50-859168, 859168T		 $187.00
9.9 & 15 HP
4-STROKE		 2000-UP 689-81800-13, MOT5000N MOT3024N
9 tooth drive gear
OEM 50-859168T		 $196.00
25 HP 1998-UP 50-830308T, 50-856169T, MOT3014N MOT3014N
OEM 50-830308-1, 50-830308T,
50-856169T
$151.00
20-40 HP
Japanese Mariner		 ALL 689-81800-13, MOT5000N MOT5000N-AM
OEM 50-97693M
11 tooth drive gear 		$185.00
25-30 HP
55 HP
30-55 HP		 1956-57
1957
1958-59		 50-67341, 50-58788, 50-48643A 1, MOT3003N MOT3003EN
OEM 50-29105, 50-30842, 50-32411		 $128.00
35-50 HP
(Count teeth)		 1960-82
(roughly)		 50-55601A2, 50-38890A1, MOT3001N MOT3001N
9 tooth drive gear
OEM 50-55601A2, 50-38890A1
NOTE: Merc does not use model years.
This starter and MOT3010N below
are both in the same catalog. Please
count the teeth on yours to verify.
They are identical except for tooth count 		$99.00
35-40 HP 2-CYL
(Count teeth)		 1983-86
(roughly) 		 50-41583, MOT3010N

MOT3010N
OEM 50-41583
10 tooth drive gear
NOTE: Merc does not use model years.
This starter and MOT3001N above
are both in the same catalog. Please
count the teeth on yours to verify.
They are identical except for tooth count

$168.00
30-40 HP 2-CYL 0G055314-UP 50-822462, MOT3012N MOT3012N
OEM 50-822462, 50-822462-1,
50-822462T1
10 tooth drive gear		 $134.00
40-60 3-Cyl
(incl 30/45 Jet)		 0G590000-UP 50-822462, MOT3012N MOT3012N
OEM 50-822462, 50-822462-1,
50-822462T1
10 tooth drive gear		 $134.00
30-60 HP 3-Cyl
4-STROKE		 ALL 50-854636, MOT3015N MOT3015N
9 tooth drive gear
OEM 50-854636, 50-893887T		 $134.00
40-45-50 HP 4-Cyl
"Classic 4"		 ALL 50-73521, MOT3007N MOT3007N
10 tooth drive gear
OEM 50-73521		 $99.00
40-50 4-cyl
4-STROKE CARB		   50-834749, 50-859171T, MOT3018N MOT3018N
9 tooth drive gear
OEM 50-834749, 50-859171T
$145.00
40-60 4-cyl
4-STROKE EFI		   50-859377T, 50-893888T, MOT3023N MOT3023N
9 tooth drive gear
OEM 50-859377T,
50-884044T, 50-888161T,
50-893888T 		$187.00
55-60 MARINER
2-Cyl 2-stroke
Japanese-made		 ALL 697-81800-12, 99999-03249-00, MOT5002N MOT5002N-AM
9 tooth drive gear
OEM 50-97072M. 50-97072T		 $175.00
50-55-60-65-70 HP
3-Cyl
(incl 45 JET)		 Thru 0G589999 50-44369A1, MOT3013N MOT3013N
10 tooth drive gear
OEM 50-44369A1		 $134.00
50-55-60-70 HP
3-Cyl
(incl 45 JET)		 0G590000-UP 50-822462, MOT3012N MOT3012N
10 tooth drive gear
OEM 50-822462, 50-822462-1,
50-822462T1		 $134.00
65 4-Cyl
80 & 85 4-Cyl		 thru 4366801
thru 4366801		 50-67341, 50-58788, 50-48643A 1, MOT3003N MOT3003N
10 tooth drive gear
OEM 50-67341, 50-58788, 50-48643A1 		$128.00
75-90 3-Cyl
65 JET		 A996142-UP 50-60315, 50-65436, 50-66015, MOT3002N MOT3002N
10 tooth drive gear
Repl. Merc # 50-60315, 50-65436,
50-66015, 50-66015-2		 $99.00
75 & 90 4-Cyl
CARB MODELS
4-stroke		 1B172291-1B366822 68V-81800-00, 68V-81800-01, MOT5019N MOT5019N-AM
13 tooth drive gear
OEM 50-881368T2		 $299.00
75 & 90 4-Cyl
EFI MODELS
4-stroke		 1B366822-UP 50-60315, 50-65436, 50-66015, MOT3002N OEM ONLY
50-879345T77		 $450.75
100 HP
4-stroke		 thru 1B226999 879150A85 OEM ONLY
879150A85		 $489.00
1150, 1500, 1750 thru 1977 50-64975, MOT3005EN MOT3005EN
10 tooth drive gear (Large Gear)
OEM 50-64975		 $151.00
90-175 INLINE 6

V-150 (Count teeth)		 1978-UP (see V150 below)
10-tooth drive		 50-72467, MOT3005N MOT3005N
10 tooth drive gear (Large Gear)
OEM 50-64975, 50-72467		 $117.00
V-150 (Count teeth) 8-tooth drive 50-73521, MOT3007N MOT3008N
8 tooth drive gear (Small Gear)
OEM 50-77141, 50-79472, 50-44415		 $99.00
100-125 4-Cyl
115 4-Cyl
125 & 80 JET 4-CYL		 B209468-UP
C100000-UP
D283222-UP		 50-66015-, MOT3004N MOT3004N
8 tooth drive gear
Repl. Merc # 50-66015, 50-66015-2		 $151.00
125 ("1250") 4-Cyl Thru 3293183 50-67341, 50-58788, 50-48643A 1, MOT3003N MOT3003N
10 tooth drive gear
OEM 50-58788A3		 $128.00
150-225 HP V6
using 135-tooth flywheel		 1980's 50-86976, MOT3009N MOT3009N
Small 9-tooth drive gear
OEM 50-86976		 $151.00
135-200 V6 CARB
2.0L & 2.4L CARB		 ALL 50-73521, MOT3007N MOT3008N
8 tooth drive gear (Small Gear)
OEM 50-77141, 50-79472, 50-44415		 $99.00
2.4L EFI
2.5L CARB & EFI		 ALL 50-73521, MOT3007N MOT3008N
8 tooth drive gear (Small Gear)
OEM 50-77141, 50-79472, 50-44415		 $99.00
225-250 3.0L CARB ALL 50-818445, MOT3011N MOT3011N
8 tooth drive gear
OEM 50-818445,
50-818445-2, -3, -5		 $151.00
V6 SPORTJET except 200 DFI ALL 50-832997, MOT3017N MOT3017N
8 tooth drive gear
OEM 50-832997-2		 $151.00
200 SPORTJET ALL 50-834749, 50-859171T, MOT3020N MOT3020N
9 tooth drive gear
OEM 50-834749, 50-859171T,
50-892339T01		 $168.00
2.5L & 3.0L DFI ALL 50-833153, MOT3016N MOT3016N
50-898265008		 $168.00
VERADO 4-STROKE
135-275 HP		 ALL 50-834749, 50-859171T, MOT3020N MOT3020N
9 tooth drive gear
OEM 50-834749, 50-859171T,
50-892339T01		 $168.00
DON'T SEE WHAT YOU NEED? JUST ASK.
