Mercury Mariner outboard motor stators, triggers, switchboxes, regulators, rectifiers, ELECTRICAL Parts for models 55 HP & Larger

¹ Note 1. Models with one rectifier use suffix K1, models with 2 rectifiers use suffix K2
² Note 2. The Regulator/Rectifier conversion kit requires a 4-yellow-wire stator.
If your stator has only 2 yellow wires, use 174-9610A18 instead.

MERC/MARINER ELECTRICAL
DESCRIPTION	PART #	PRICE	SELECT
SWITCHBOX REPLACEMENT UPGRADE	114-2803 Click Image For Larger	SWITCHBOX 95/110 hp Inline 6 $473.00
STATOR	5456-16 Click Image For Larger	STATOR 16A V6 MERC SUP 5860 $313.25
VOLTAGE REGULATOR	194-8825 Click Image For Larger	VOLTAGE REG KIT V6 MERC PRO PARTS $140.25
SWITCHBOX Replacement box & coil design with hardware & install instructions	114-4796 ORIGINAL NO LONGER AVAILABLE FROM MERCURY Click Image For Larger	REPL SWITCHBOX-COIL KIT 18-99290 $399.25
SWITCHBOX	4953-32 Click Image For Larger	SWITCHBOX, LONG WIRE SPORT JET $528.00
SWITCHBOX	114-6866 Click Image For Larger	SWITCHBOX 120 SPORTJET 18-99305 $446.00

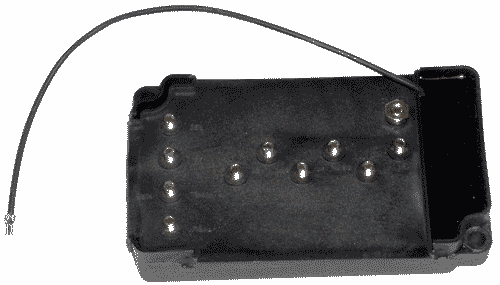

SWITCHBOX	114-7778 Click Image For Larger	SWITCHBOX FORCE MERCURY 18-5775-1 $299.00
CDM Module 4-pin late version	114-7509 Click Image For Larger	MERC CDM w/WIRE 18-99161 $108.72
CDM Module Upgrade Kit, earlier 3-pin to 4-pin conversion	7509K1 Replaces Mercury 827509A12 Click Image For Larger	MERC CDM Module 5776 $220.25
SWITCHBOX	114-9052 Click Image For Larger	SWITCHBOX MERC USE PRO 19052 $422.00
SWITCHBOX	333-3213A3 Click Image For Larger	SWITCHBOX OEM $496.99
STATOR 9 AMP (used with rectifier)	174-8778 GLUED-IN MAGNETS ONLY!! BOLT-ON MAGNETS USE 1-94-5454 Click Image For Larger	STATOR 9A MERC FORCE $335.00
STATOR KIT	9610A18 (lncludes. 174-9610K2 40A Stator & 194-8736K1 Rect/Regulator) Click Image For Larger	STATOR DUAL REG KIT 40A $1019.00
STATOR	2075K2 Click Image For Larger	MERCURY RED STATOR REPLACEMENT 16A $348.00
STATOR	2075K1 Click Image For Larger	MERCURY RED STATOR REPLACEMENT 9A $434.50
STATOR	1-94-5454 Click Image For Larger	MERC STATOR 9A USE 5454P $218.61
STATOR (OEM	398-858404T4 Click Image For Larger	STATOR MERC USE PRO 1-94-8404T4 $533.65
STATOR (RED Coil Only)	174-3175 Click Image For Larger	STATOR, RED COIL $75.00
STATOR (BLUE Coil Only)	174-3176 Click Image For Larger	STATOR BLUE COIL $61.19
STATOR 16 AMP	9873-16 Click Image For Larger	STATOR 16A V6 MERC $327.00
STATOR (2 rectifier system)	9610K2 Click Image For Larger	STATOR 40A DUAL REGULATOR $689.00
STATOR (Repair & Return)	R398-4634	STATOR R&R ONLY $0.00
STATOR (Repair & Return)	R398-2997	STATOR R&R ONLY $0.00
STATOR No Longer Aavailable	R398-3633	NLA	Discontinued
STATOR	1935K2 Repl. Merc 821935A5 Click Image For Larger	STATOR 6-PIN 225 3.0L REPAIR RETURN $0.00
STATOR	1935K1 Click Image For Larger	NLA	Discontinued
STATOR No Longer Aavailable	R398-2188	NLA	Discontinued
TRIGGER (Repair & Return)	R89004	TRIGGER R&R ONLY $0.00
TRIGGER (Repair & Return)	R332-4797 REPAIR AND RETURN ONLY Click Image For Larger	TRIGGER & HSG R&R ONLY $0.00
TRIGGER INCLUDES: (required) 4 & 6 cylinder STEEL trigger disk, oversize spacer, bearings, snap ring, and installation instructions. Improved design uses Hall Effect technology for improved performance and ease of installation. Fits MOST 1970-79 4 & 6 cylinder motors	134-3736 Click Image For Larger	TRIGGER & HOUSING KIT IL4 18-99430 $671.99
TRIGGER	4513-4 Click Image For Larger	TRIGGER 4-CYL MERC 4513-4P $130.00
TRIGGER	4512-3 Click Image For Larger	MERC TRIGGER 3-CYL $132.95
SWITCHBOX	114-2986 Click Image For Larger	UPGRADE SWITCHBOX-COIL 18-99244 $410.00
SWITCHBOX KIT Replaces old style Igniton	2986K1 Click Image For Larger	SWITCHBOX-TRIGGER KIT $878.00
SWITCHBOX Replaces Mercury 18495A26	114-4953 Click Image For Larger	SWITCHBOX MERC L3 18-5790-1 $425.67
SWITCHBOX	ME-75P Click Image For Larger	SWITCHBOX FORCE MERC 4-CYL $218.00
TRIGGER	134-6453 Click Image For Larger	MERC TRIGGER 3-CYL $215.69
TRIGGER	8303-4 Click Image For Larger	TRIGGER, CDM MOTORS $105.99
TRIGGER	9021-3 Click Image For Larger	TRIGGER SHORT ARM 3-CYL USE 1-93-99021 $153.95
TRIGGER	9021-4 Click Image For Larger	TRIGGER MERC 4-CYL $141.25
TRIGGER	7029-3 Replaces Mercury 817029A3, 817029A9	TRIGGER LONG ARM 3-CYL $137.00
TRIGGER	7029-4 Click Image For Larger	TRIGGER LONG ARM 4-CYL $93.80
TRIGGER	PLEASE COMPARE THIS TRIGGER WITH THE ONE BELOW TO MAKE SURE WHICH ONE YOU NEED !! 134-6452 Straight Arm Click Image For Larger	MERC TRIGGER STRAIGHT ARM 28-99390 $134.39
TRIGGER	PLEASE COMPARE THIS TRIGGER WITH THE ONE ABOVE TO MAKE SURE WHICH ONE YOU NEED !! 134-6454 Hooked Arm Click Image For Larger	TRIGGER HOOKED ARM 4-CYL 18-99403 $180.69
TRIGGER	1-93-6456 Click Image For Larger	TRIGGER MERC V6 USE 134-6456 $189.79
TRIGGER	96455A15 Click Image For Larger	TRIGGER SPORTJET V6 $204.50
TRIGGER	6456-18 Click Image For Larger	TRIGGER 6-CYL $239.50
TRIGGER (Repair & Return)	R393-2918 Click Image For Larger	TRIGGER R&R ONLY $0.00
STATOR	174-4793 Click Image For Larger	STATOR INLINE 6 18-99237 $547.49
STATOR	174-5456 Click Image For Larger	STATOR 9A 6 CYL 18-5854-1 $312.79
STATOR 16 AMP (used with regulator)	174-9710 Click Image For Larger	STATOR 16A MERC FORCE $408.61
REGULATOR	194-5279 w/ Bullet Terminals Click Image For Larger	CDI VOLTAGE REG 16A-40A MES $130.00
REGULATOR (need 2 per motor)	2115K1 Click Image For Larger	VOLT REG DOUBLE PLUG 2.5L $255.75
REGULATOR KIT	194-8736 Click Image For Larger	VOLT REG KIT 40A DUAL REPL SINGLE $550.00
RECTIFIER	5707 Click Image For Larger	RECTIFIER 18-5707 $34.00
RECTIFIER	R32177A1 NLA	---	No Longer Available
