TRIM MOTORS
also available are a few
REBUILT TRIM ASSEMBLIES
| YAMAHA TRIM TILT MOTORS |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |
 PT600NM-3
FITS YAMAHA:
115 THRU 200 HP, 1987 - 1996
225 HP, 1990-1991
Repl. YAMAHA 6G5-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
PT600NM-3 |
YAMAHA
PRICE:
753.75
YOUR PRICE:
$302.00 |
|

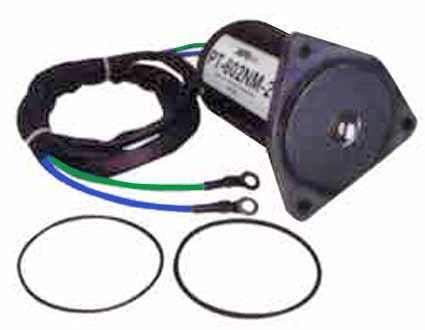

 PT602NM
FITS YAMAHA:
40 HP 1994
50 HP, 1992 - 1995
50 & 60 HP 2000-2001
70 & 90 HP 1992 - 2009
Repl. YAMAHA
# 6H1-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED.
Click Image For Larger |
PT602NM |
YAMAHA
PRICE:
397.90
YOUR PRICE:
$250.00 |
|
 PT603NM-3
FITS YAMAHA 2-STROKE:
225 HP 1994-2003
250 HP 1990-2003
Repl. YAMAHA
61A-43880-01-00,
61A-43880-02-00
4 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
PT603NM-3 |
YAMAHA
PRICE:
787.157
YOUR PRICE:
$460.00 |
|
 PT607NM
FITS YAMAHA:
115 THRU 225 HP, 1997 - 2006
115-v150 2004-2009
F115 & LF115 4-STROKE 2000-2009
150-300 HP 2003-2009
Repl.
YAMAHA 64E-43880-00-00,
64E-43880-01-00
68V-43880-04-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING INCLUDED.
shaft protrudes approximately 3/16"
from base
Click Image For Larger |
PT607NM |
YAMAHA
PRICE:
615.95
YOUR PRICE:
$206.00 |
|
| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please call before ordering! |

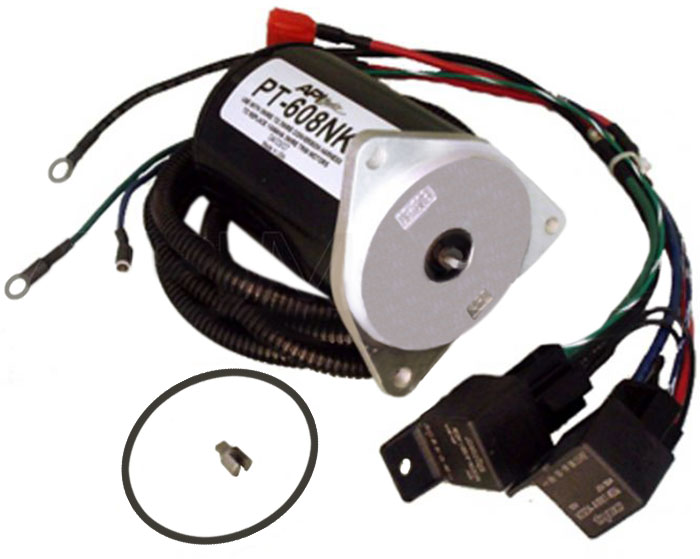

 PT608NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
115 THRU 225 HP, 1987 - 91,
Repl. YAMAHA
6G5-43880-00-00,
6G5-43880-01-00,
6G5-43880-02-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Mounting Flange Diameter Measures 68.3 mm across
Shaft Blade Measures 2 mm Thick
Click Image For Larger |
PT608NK-3
 |
YAMAHA
PRICE:
753.75
YOUR PRICE:
$306.00 |
|
| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please call before ordering! |
 PT609NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
60 THRU 90 HP, 1987-91
Repl. YAMAHA
6H1-43880-00-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Mounting Flange Diameter Measures 70.5 mm across
Shaft Blade Measures 4 mm Thick
Click Image For Larger |
PT609NK-3
 |
YAMAHA
PRICE:
794.95
YOUR PRICE:
$306.00 |
|
| Caution! PT 608NK, PT 609NK, & PT 612NK look very similar. The difference is in the mounting flange diameter & armature shaft flat blade thickness. See here for an explanation of the differences. If you are still confused about your application, then please call before ordering! |
 PT611NM
FITS YAMAHA 40 - 50 HP, 1995 - 2002
Repl. YAMAHA
62X-43880-09-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED.
ALSO SEE PT614NM BELOW
Click Image For Larger |
PT611NM |
YAMAHA
PRICE:
453.15
YOUR PRICE:
$250.00 |
|
 PT612NK-3
Replaces Original 3-Wire Motor With a High-Performance
2-Wire Motor and Harness/Relay Kit
50 THRU 200 HP, 1985 - 1986
Repl. YAMAHA
6E5-43880-01-00,
6E5-43880-02-00,
688-43880-11-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
Mounting Flange Diameter Measures 68.3 mm across
Shaft Blade Measures 4 mm Thick
Click Image For Larger |
PT612NK-3
 |
YAMAHA
PRICE:
807.60
YOUR PRICE:
$306.00 |
|
 PT613NM
40 HP, 1985 - 1997, 50 HP 1985-92
Repl. YAMAHA
6H5-43880-02-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING & COUPLER INCLUDED
Click Image For Larger |
PT613NM |
YAMAHA
PRICE:
531.65
YOUR PRICE:
$274.00 |
|
 PT614NM
4-stroke
F50 2001-2004, F60 2002-2004
2-stroke
40TLR 2001-2006
50TLR 25003-2009
Repl. YAMAHA
CS3-43880-00-00,
62Y-43880-01-00,
69W-43880-00-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING & COUPLER INCLUDED
 LOOKS THE SAME
AS PT611NM
BUT
WITH LONGER
SHAFT (APPROXIMATELY
1-1/2 INCH
FROM OIL SEAL TO
FLAT BLADE)
2 & 4-STROKE MOTORS
Click Image For Larger
|
PT614NM |
YAMAHA
PRICE:
428.99
YOUR PRICE:
$274.00 |
|
 PT615NM
4-stroke MOTORS
F75 & F90 2003-2004
F80 & F100 1999-2003
Repl. YAMAHA
67F-43880-00-00
2 WIRE MOTOR, 4 BOLT MOUNT,
O RING INCLUDED
Click Image For Larger |
PT615NM |
YAMAHA
PRICE:
743.30
YOUR PRICE:
$310.00 |
|
 PT616NM
2002-2009 4-stroke
F200, F225, F250
LF200, LF225, LF250
2002-2009 2-stroke
LZ250, LZ300, Z250, Z300
Repl. YAMAHA
69J-43880-00-00,
69J-43880-01-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
4-STROKE MOTORS
Click Image For Larger |
PT616NM |
YAMAHA
PRICE:
591.35
YOUR PRICE:
$390.00 |
|
 PT625NM
F50 & F60 4-stroke 2005 -2009
Repl. YAMAHA
6C5-43880-01-00
2 WIRE MOTOR, 3 BOLT MOUNT,
O RING INCLUDED
4-STROKE MOTORS
Click Image For Larger
|
PT625NM |
YAMAHA
PRICE:
451.50
YOUR PRICE:
$290.00 |
|

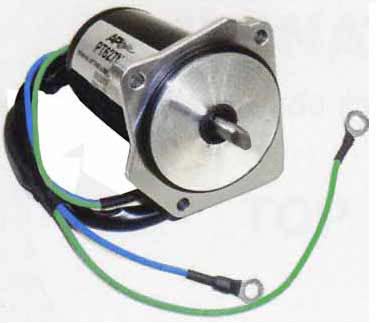

 PT626NM
F75, F90 2005-2006
4-stroke
YAMAHA #
6D8-43880-09-00
short shaft (roughly 3/4")
4 BOLT MOUNT, O-RING INCLUDED
Click Image For Larger |
PT626NM |
YAMAHA
PRICE:
655.20
YOUR PRICE:
$370.00 |
|
 PT627NM
F75, F90 2005-2006
4-stroke
YAMAHA # 6D8-43880-00-00,
6D8-43880-01-00
long shaft (roughly 1-3/8")
4 BOLT MOUNT, O-RING INCLUDED
Click Image For Larger
|
PT627NM |
YAMAHA
PRICE:
655.20
YOUR PRICE:
$250.00 |
|
TRIM ASSEMBLY SUBJECT TO AVAILABILITY
!! NOT AVAILABLE AS OF JUNE 2011 FOR THE REST OF THE YEAR !!
DUE TO SITUATION IN JAPAN. NO PARTS AVAILABLE
|
| YAMAHA REBUILT TRIM/TILT ASSEMBLY |
 |
115-225 |
4-6 |
1987-96 |
$825
Includes Shipping |
|
 |
225 & 250
4-WIRE |
V6 |
1990-05 |
$950
Includes All Shipping
& $50 Core Charge
(refundable on return)
|
|
225 & 250
2-WIRE |
V6 |
1990-05 |
$950
Includes All Shipping
& $50 Core Charge
(refundable on return) |
|
Now that you have found what you need,
please order it using the shopping cart above, the secure
quick order form, or call in your order . We pay the freight out in USA
on all orders over $100.00. Orders less than this amount will have a shipping
and handling charge of $8.75 added. Some bulky and heavy items will incur additional
charges. You will be notified beforehand if this is the case. Remember, all
orders receive free technical support from the MasterTech! |
|
