CARB KITS
FUEL FILTERS
FUEL PUMPS

Need help with your carburetor?
Try our carburetor help pages #1 and #2 or our carb tech data page.


Please Note: Carb kits are 1 per carburetor UNLESS NOTED. If you have more than 1 carburetor then you need more than 1 kit.

YAMAHA 2-STROKE
CARBURETOR KIT APPLICATION


HP YEARS OEM # CARB KIT
2 1984-88 6A1-W0093-01-00 18-7293
3
4
6
8
1988-02
1999-03
1988-96
1984-96
6G1-W0093-00-00 7765
9.9
15
1987-94
1985-92
6E7-W0093-04-00 18-7769
20
25
1996-97
1988-04
6L2-W0093-00-00 18-7739
Kit does both carbs
25
C25
30
C30 (6E7)
1984-87
1990-97
1984-86
1990-92
689-W0093-02-00,
6G0-W0093-00-00
18-7770
C30 (61N) 1993-97 61N-W0093-00-00 18-7737
40 1989-04 6H4-W0093-03-00 18-7768
C40 (DUAL CARB) 1990-93 6E9-W0093-02-00 9-37519
C40 (DUAL CARB) 1994-97 6E9-W0093-03-00 18-7741
40, P40, C40
(TRIPLE CARB)
1998-03 6H4-W0093-03-00 18-7768
P40 1998 6H4-W0093-03-00 18-7768
45 & 50 1984-88 6H4-W0093-01-00 18-7767
50, C50 1998-01 6H4-W0093-03-00 18-7768
P50 1991-96 6H4-W0093-03-00 18-7768
E48
C55
1995-00
1990-95
696-W0093-02-00,
663-W0093-00-00
18-7290
* ONE KIT WILL REBUILD BOTH CARBS *
C60
P60
E60
70
1996-01
1991
1995-00
1984-91
6H3-W0093-02-00 7766
60, 70, P60, C70 1992-UP 6H2-W0093-10-00 7771
C75
C80
1998-99
1997
6H0-W0093-00-00 18-7742
C75
E75
C85
90
1984-96
1995-00
1984-94
1984-91
6H1-W0093-00-00 600-50
90 1992-2005
INCLUDES FLOATS
(for carbs with 2 floats per carb)
6E9-W0093-03-00
600-59
* KIT DOES
1 CARB ONLY*
includes float
115
130
1988-UP
MINOR KIT
NO FLOATS
6E5-W0093-06-00 659306
* KIT DOES
1 CARB ONLY*
115
130
1988-UP
MAJOR KIT
INCLUDES FLOATS
(for carbs with 2 floats per carb)
6E9-W0093-03-00 600-59
* KIT DOES
1 CARB ONLY*
150, 175 1985-86 6G5-W0093-08-00 18-7747
* ONE KIT WILL REBUILD ALL CARBS *

1 float per carb
150, 175, 200
P200
V6 EXCEL
1992-01
1991-99
1987-89
6E5-W0093-06-00 659306
* KIT DOES
1 CARB ONLY*

2 separate floats
per carb
L150
D150
P150, P175, L200
V150
V175
P200 , 225 (2.6L)
1996-01
1997-98
1992-99
2000-01
2000
1996-99
6E5-W0093-06-00 659306
* KIT DOES
1 CARB ONLY*

2 separate floats
per carb
225 (3.1L),
250 (3.1L)
1990-96 61A-W0093-01-00 61A093


YAMAHA FUEL COMPONENTS
OTHER FUEL-RELATED COMPONENTS
DESCRIPTION MODEL COMMENT PART
NUMBER
PRICE SELECT
WATER SEPARATING FUEL FILTER KIT ALL REQUIRES ADDITIONAL FITTINGS TO MATCH YOUR FUEL LINES 7852


CLICK IMAGE FOR LARGER
$38.00
REPLACEMENT FILTER
FOR ABOVE KIT
ALL Small Hole
Mercury Style
7845


CLICK IMAGE FOR LARGER
$8.00
Universal
METAL INLINE FUEL FILTER 5/16" HOSE
ALL - 7856-1
$9.50
Universal
METAL INLINE FUEL FILTER 3/8" HOSE
ALL - 7857-1

$9.50
FUEL FILTER 9.9 HP 90° - 18-7780


CLICK IMAGE FOR LARGER
$16.00
FUEL FILTER MOST OTHER 9.9-225 HP - 18-7781


CLICK IMAGE FOR LARGER
$8.00
FUEL FILTER V6 3.1L - 18-7782


CLICK IMAGE FOR LARGER
$32.50
FUEL FILTER 150 - 300 HP - 68F245


CLICK IMAGE FOR LARGER
$29.50
PLASTIC INLINE FUEL
FILTER  1/4" HOSE
- - 18-7829

$6.00
PLASTIC INLINE FUEL
FILTER  5/16" HOSE
- - 18-7830

$6.75
PLASTIC INLINE FUEL
FILTER  3/8" HOSE
- - 18-7831

$6.00


YAMAHA 2-STROKE FUEL PUMPS
25-90 HP
OE # 6A0-24410-01-00
2441

6A0-24410-01-00
CLICK IMAGE FOR LARGER
$38.00
V4 & V6
OE # 6E5-24410-03-00
24410-1

6E5-24410-03-00
CLICK IMAGE FOR LARGER
$59.25

CARB KITS PRICING
DESCRIPTION PART NUMBER PRICE SELECT
CARB KIT does 2 Carbs 7290


CLICK IMAGE FOR LARGER
$156.75
CARB KIT 600-50


CLICK IMAGE FOR LARGER
$23.50
CARB KIT 18-7293


CLICK IMAGE FOR LARGER
$33.50

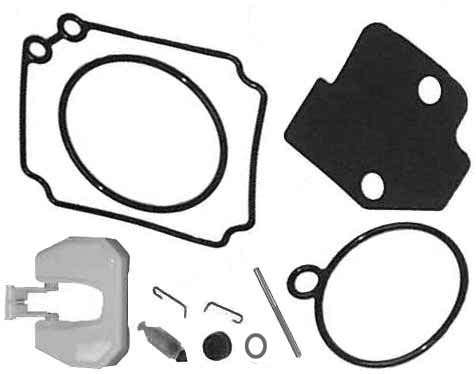

CARB KIT 18-7737


CLICK IMAGE FOR LARGER
$33.00

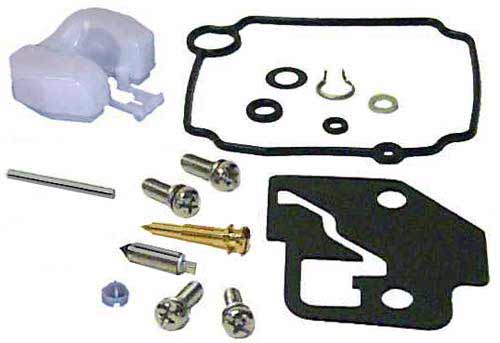

CARB KIT 7738


CLICK IMAGE FOR LARGER
$49.75
CARB KIT does 2 Carbs 18-7739


CLICK IMAGE FOR LARGER
$38.50
CARB KIT 9-37519


CLICK IMAGE FOR LARGER
$59.50
CARB KIT does 2 Carbs 18-7741


CLICK IMAGE FOR LARGER
$77.50
CARB KIT 18-7742


CLICK IMAGE FOR LARGER
$35.00

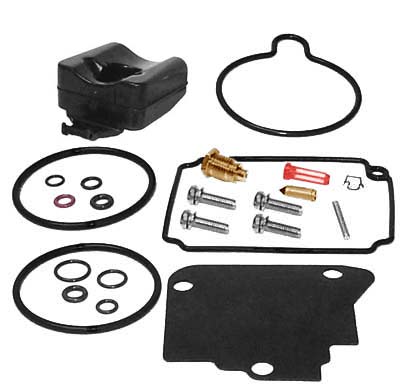

CARB KIT 18-7743


CLICK IMAGE FOR LARGER
$95.00
CARB KIT Does ONE Carb
Though the part numbers are similar this is NOT the same kit as the 1991 and earlier one. The carbs are completely different.
600-59


CLICK IMAGE FOR LARGER
$33.50
CARB KIT Does All 3 Carbs 18-7747


CLICK IMAGE FOR LARGER
$129.00
CARB KIT
!! DOES ONLY 1 CARB
BE SURE TO ORDER ENOUGH KITS
659306


CLICK IMAGE FOR LARGER
$26.00

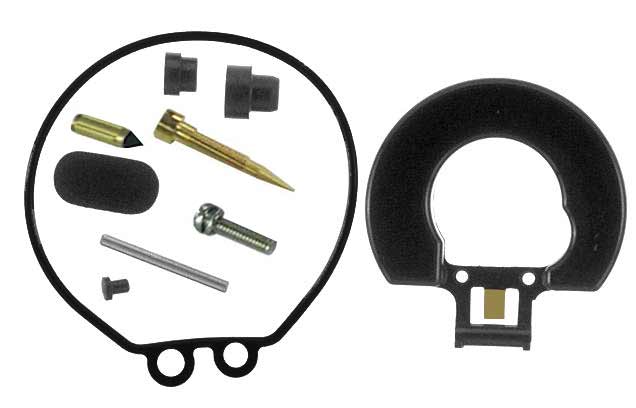

CARB KIT 7765


CLICK IMAGE FOR LARGER
$29.50
CARB KIT 7766


CLICK IMAGE FOR LARGER
$37.75
CARB KIT
!! DOES ONLY 1 CARB
BE SURE TO ORDER ENOUGH KITS

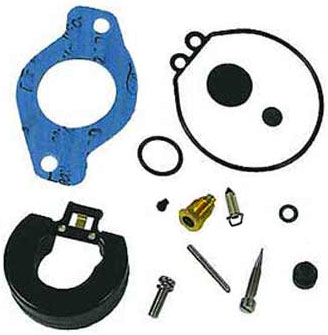

7767


CLICK IMAGE FOR LARGER
$37.00
CARB KIT 7768


CLICK IMAGE FOR LARGER
$51.00
CARB KIT 7769


CLICK IMAGE FOR LARGER
$29.75
CARB KIT 7770


CLICK IMAGE FOR LARGER
$32.75

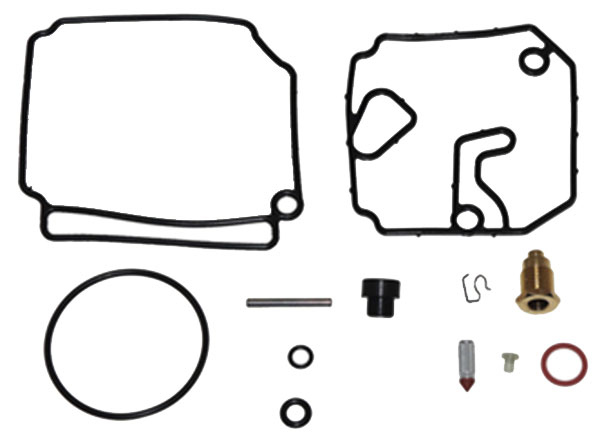

CARB KIT 7771


CLICK IMAGE FOR LARGER
$50.50
CARB KIT 61A093


CLICK IMAGE FOR LARGER
$33.25
DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
