4-STROKE
COOLING SYSTEM PARTS
NOTE: The application information for Yamaha aftermarket parts sometimes conflicts between distributors.
Click on the part number below for your motor's component; you will be taken to the corresponding price/shopping cart section,
which includes a link to the part's picture.
Please compare the picture's contents to what you have in your cooling system
to make sure it's the correct one.
Pictures will open in a new window.
If you are unsure, you may contact us to verify the application.
| YAMAHA 4-STROKE WATER PUMP APPLICATION |
| MODEL HP |
MODEL YEAR |
COMPLETE PUMP KIT |
IMPELLER ONLY |
IMPELLER REPAIR KIT |
| T8 |
2001-02 |
- |
3040 |
- |
| F15 |
1996-04 |
- |
3040 |
18-3433 |
| F25 &
T25 |
2001-04 |
18-3432 |
3068 |
- |
| F30 |
2001-UP |
- |
3068 |
18-3440 |
| F40
& F50 |
1999 |
- |
3069 |
- |
| F40 & F50 |
2000-04 |
- |
3068 |
18-3440 |
| T50 |
1996-02 |
- |
3069 |
- |
| F60 |
2002 |
- |
3069 |
- |
| F75, F80, F90, F100 |
2000-UP |
- |
9-45612 |
- |
| F115
& LF115 |
2000-UP |
3313 |
3071 |
3312 |
| F150 &
LF150 |
2004 |
3396 |
3071 |
3395 |
F200
& LF200
F225 & LF225 |
2002-04 |
3396 |
3071 |
3395 |
| PART YOU NEED
NOT
LISTED? PLEASE CALL |
| YAMAHA 4-STROKE COOLING
COMPONENTS |
| DESCRIPTION |
PART # |
PRICE |
SELECT |
| THERMOSTAT 122° |
F12411

Click Image for Larger |
$37.00 |
|

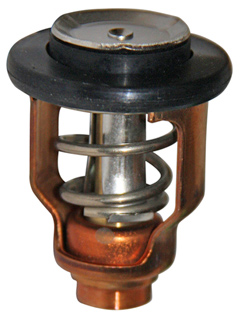

| THERMOSTAT 143° |
F12414

Click Image for Larger |
$33.00 |
|
| THERMOSTAT |
12413

Click Image for Larger |
$40.00 |
|
| IMPELLER |
3040

Click Image for Larger |
$19.50 |
|
| IMPELLER |
3068

Click Image for Larger |
$30.00 |
|
| IMPELLER |
3069

Click Image for Larger |
$30.00 |
|
| IMPELLER |
3071

Click Image for Larger |
$24.00 |
|
| IMPELLER |
9-45612

Click Image for Larger |
$39.00 |
|
| REPAIR
KIT WITHOUT HOUSING |
3395

Click Image for Larger |
$55.50 |
|

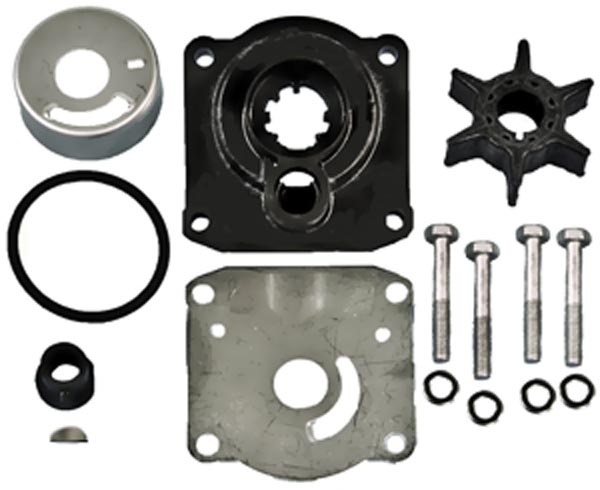

| REPAIR
KIT WITH HOUSING |
18-3432

Click Image for Larger |
$38.00 |
|
| REPAIR
KIT WITHOUT HOUSING |
18-3433

Click Image for Larger |
$35.00 |
|
| REPAIR
KIT WITHOUT HOUSING |
18-3440

Click Image for Larger |
$62.00 |
|
| COMPLETE
PUMP KIT |
3312

Click Image for Larger |
$58.00 |
|
| COMPLETE
PUMP KIT |
3313

Click Image for Larger |
$79.00 |
|
| COMPLETE
PUMP KIT |
3396

Click Image for Larger |
$69.00 |
|
Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech! |
|
| |
Please review our Warranty, Returns & Refunds policies before you place an order.
