VRO & CONVENTIONAL FUEL PUMPS & REPAIR KITS
What do the horn beeps mean?
Look at the VRO Horn Warning Chart
| JOHNSON EVINRUDE VRO PUMPS & KITS |
| MODEL USAGE |
PART # |
PRICE |
SELECT |
4 WIRE PUMP
ALL LATER VRO EQUIPPED EXCEPT 40-50 2 CYLINDER |
5007420 |
$475.00 |
|
4 WIRE PUMP
ALL VRO EQUIPPED 40-50 2 CYLINDER |
5007421 |
$454.25 |
|
REPLACEMENT FOR 3 WIRE PUMP *
ALL EARLY VRO EQUIPPED EXCEPT 40-50 2 CYLINDER |
5007423 |
$441.00 |
|
* IF MOTOR DOES NOT HAVE WIRING FOR "NO OIL WARNING",
ORDER THIS HARNESS ----> |
174710 |
$48.00 |
|
"NO OIL" VRO REPLACEMENT PUMP KIT
(FOR USING OIL/GAS PRE-MIX IN FUEL TANK)
NOTE that you can also use your existing pump as just a fuel pump
(after repairing the fuel side with kit below if necessary) and pre-mixing
by following
the procedure below |
5007422 |
$421.75 |
|
VRO PUMP REPAIR KIT
LOOK!!  FITS ALL VRO PUMPS EVER MADE
including VRO2 and
the
"NO OIL" listed pump above
VRO REPAIR PARTS KIT
(FUEL PUMP SIDE ONLY;
OIL SIDE IS NOT REPAIRABLE -- REPLACE PUMP IF IT FAILS
or cap it off & mix 50:1 in the gas tank -- see below)
PARTS EXPLODED VIEW
CONTENTS OF KIT
TYPICAL HOSE ROUTING
FOR VRO EXPLODED VIEWS, TROUBLE CHECK CHART
AND TECH INSTRUCTIONS, BROWSE TO:
VRO flowchart
VRO warning horn signals
VRO early & late versions images
VRO pump repair tips
The kits do not include the 2 o-rings between the oil mix unit and the body of the VRO pump (between the 2 halves of # 14 in the exploded view. They are not illustrated).
Normally you don't need to remove this piece. If necessary, the o-rings are available separately below.
|
VRO_KIT |
$145.00 |
|
O-ring set between fuel & oil sections.
Only needed if you separate the two;
normally this is not necessary to rebuild the pump |
 |
VRO_O-rings |
$14.75 |
|
YOU MAY ALSO USE THE VRO PUMP STRICTLY AS A FUEL PUMP
(SO
LONG AS THE FUEL SIDE WORKS)
AND PRE-MIX OIL & GAS IN THE FUEL TANK AT 50:1 RATIO.
THERE'S AN EXCELLENT ARTICLE BY JOHN FOSTER ON HOW TO DO THIS HERE |
JOHNSON EVINRUDE ORIGINAL
EQUIPMENT STANDARD FUEL PUMPS
and REPAIR KITS |
| MODEL USAGE |
PART # |
PRICE |
SELECT |

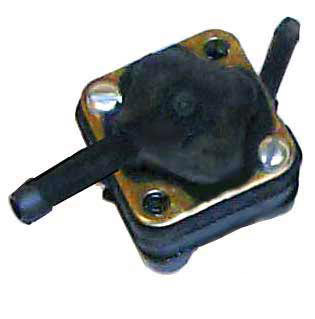

(FITS VARIOUS)
 4, 5.5, 6, 7.5, 10, 18-20-25 HP
1960's THRU 1983
SMALL 2" SQUARE
Click image for larger view
|
388685 |
$99.00 |
|
9.5 HP 1964-73
Click image for larger view |
388833 |
$116.00 |
|
9.9, 15 HP
 1974 - 1980
(2" Square Pump)
Click image for larger view |
391667 |
$99.00 |
|
9.9, 15 HP
 1981 - mid-1987 ALL
1987- 1992 Rope Start
(2" Square Pump)
Click image for larger view |
7839 |
$49.00 |
|

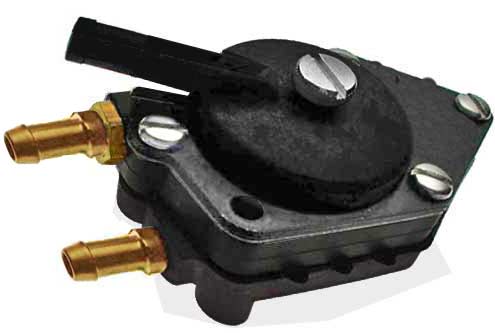

3-HOSE PUMP
 WITH 5/16" PULSE HOSE FITTING
WITH 5/32" FUEL OUT FITTING
(see arrow)
Click image for larger view |
8555 |
$70.00 |
|
3-HOSE PUMP
WITH 5/16" PULSE HOSE FITTING
 WITH 5/16" FUEL OUT FITTING
(see arrow)
Click image for larger view |
8555-X |
$70.00 |
|
2-HOSE PUMP
 WITH 5/32" FUEL OUT FITTING
(see arrow)
Click image for larger view |
8556-X |
$66.00 |
|
2-HOSE PUMP
 WITH 5/16" FUEL OUT FITTING
(see arrow)
Click image for larger view |
8556 |
$66.00 |
|
V6 1977-78 (Upper pump)
Click image for larger view |
393870 |
$109.00 |
|
| PRIMER SOLENOID COVER KIT |
Fits most primer solenoids |
18-0993 |
$16.00 |
|
| CONVENTIONAL
FUEL PUMP KITS |
OLD STYLE OMC WITH GLASS FILTER
BOWL 1958-66
Click image for larger view |
379777
REPAIR KIT
Original Equipment |
$28.00 |
|

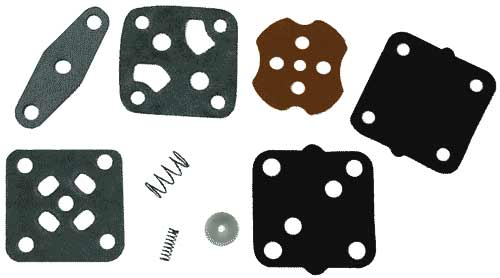

FUEL
PUMP KIT
1960's to 1992
SMALL 2" SQUARE
THRU 25 HP
Click image for larger view |
393088
REPAIR KIT
Original Equipment |
$18.50 |
|
FUEL
PUMP KIT
NON-VRO 20 THRU 50 HP
LATE 1980'S & 1990
Click image for larger view |
43292
REPAIR KIT |
$20.00 |
|
FUEL
PUMP KIT
• 9.9, 15 HP
1992 UP
• 20-50 HP 1990-UP
• 88, 100, 125 1990-2001
(May fit older V4 with this style pump)
• Fits many 1970's-1990's 3-cyl
--Please compare pointed end with 39313 below
Click image for larger view |
18-7800
REPAIR KIT |
$21.50 |
|
FUEL
PUMP KIT
9.9, 15 HP
mid-1987 - 1992 Electric Start
Click image for larger view |
39851
REPAIR KIT |
$20.75 |
|
FUEL
PUMP KIT
20, 25 HP 1977-86
30, 35 HP 1976-86
40, 50 HP 1970-78
55-75 HP 1969-83
Click image for larger view |
39313
REPAIR KIT |
$10.50 |
|
Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order .
We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge
of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case.
Remember, all orders receive free technical support from the MasterTech! |
|
| |
