EVINRUDE JOHNSON TRIM/TILT MOTORS
ALSO
COMPLETE ASSEMBLIES (REBUILT)
SWITCHES & WIRING
MASTERTECH FEATURES TRIM/TILT
PRODUCTS SUPPLIED BY U.S. COMPANIES
| EVINRUDE JOHNSON TRIM TILT MOTORS |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |

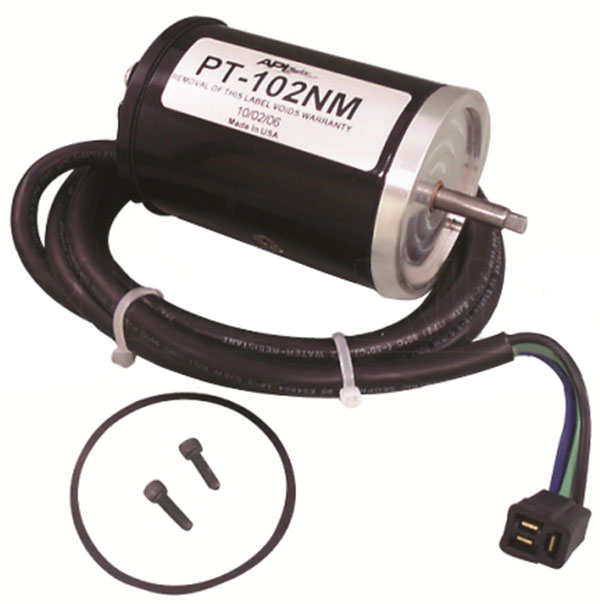

 PT 102NM
Replaces OMC # 172588, 173944,
Prestolite EFT4003, ESZ4015, ESZ4017,
ESI-4001,
OMC Pump Assembly 173946
3-Wire Connection
Click Image for Larger |
PT102NM
FITS THE OLD POWER TILT ONLY
ASSEMBLY LOOKED LIKE THIS
 |
$268.00 |
|
 PT112N
New Design Reservoir -- has an easy-to-install replaceable motor!!
Replaces OMC # 172543, 382715,
Prestolite ESZ4009, ESZ4012, ESZ4014,
ETX4001
3-Wire Connection, O-Ring included
3.5" Diameter reservoir Base |
PT112N
3.5 INCH DIAMETER RESERVOIR BASE
MOTOR/RESERVOIR ONLY!! |
$310.00 |
|
PT112N-NP-3
New Design Reservoir -- has an easy-to-install replaceable motor!!
Replaces OMC # 172543,
382715,
Prestolite ESZ4009, ESZ4012,
ESZ4014,
ETX4001
3-Wire Connection, O-Ring included
3.5" Diameter reservoir Base
Click Image for Larger |
PT112N-NP-3
3.5 INCH DIAMETER RESERVOIR BASE
MOTOR/RESERVOIR/PUMP |
$570.00 |
|

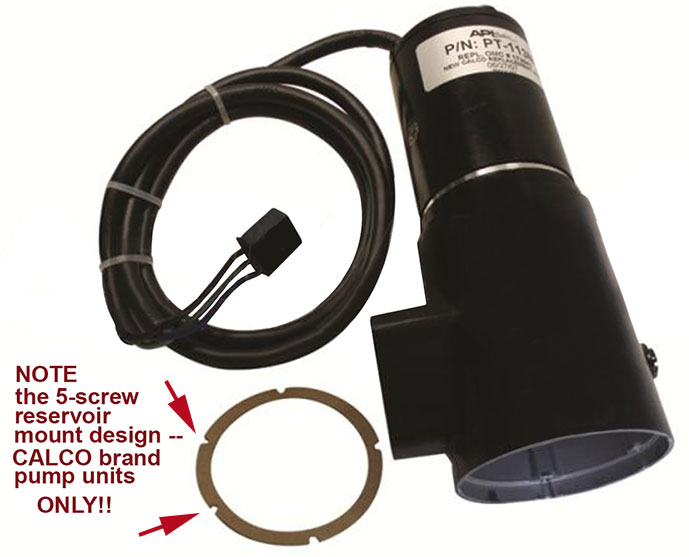

 PT113N
Replaces OMC # 172847
CALCO ORIGINAL UNIT
3-Wire Connection,
WIRES
COME OUT ON TOP
OF MOTOR; PUMP UNIT
MOUNTS TO RESERVOIR
WITH
5 BOLTS.
Click Image for Larger
This replacement requires you to send in
the reservoir section. A custom motor will be machined to
fit it. |
PT113N
YOU MUST SEND IN RESERVOIR
& A NEW MOTOR IS CUSTOM
MACHINED TO FIT IT
SEE # PT114-NPK below
for a complete replacement kit
|
$325.00 |
|

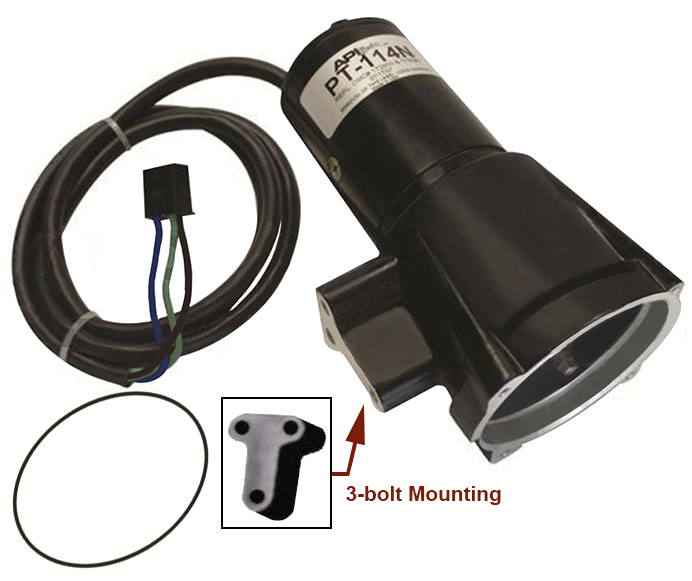

PT114N
Replaces OMC # 172850,
173596,
Prestolite EFT4003, ESQ4006,ESQ4007-1,
ESQ4009S
3-Wire Connection, O-Ring
included. 3-bolt Mounting
4.25" Diameter reservoir Base
Click Image for Larger
|
PT114N
4.25 INCH DIAMETER RESERVOIR BASE
MOTOR/RESERVOIR ONLY!! |
$325.00 |
|
 PT114N-RP
MOTOR/RESERVOIR/PUMP
Replaces OMC # 172850, 173596,
Prestolite EFT4003, ESQ4006,
ESQ4007-1,
ESQ4009S
3-Wire Connection, O-Ring included
4.25" Diameter reservoir Base
Replacement pump unit not available
SEND IN OLD PUMP, IT WILL
BE REBUILT AND INSTALLED ON A
NEW MOTOR-RESERVOIR
UNIT
4.25" Diameter reservoir Base
Click Image for Larger |
PT114N-RP
4.25 INCH DIAMETER RESERVOIR BASE
MOTOR/RESERVOIR/PUMP
EXCHANGE BASIS, OLD
PUMP REQUIRED
UP FRONT |
$528.00 |
|
| PT114N NOTES: PLEASE CHECK THE NUMBER OF SCREWS THAT HOLD THE HYDRAULIC PUMP
TO THE RESERVOIR. IF YOUR PUMP IS INSTALLED WITH 4 SCREWS, IT
IS A PRESTOLITE AND THE ABOVE UNIT IS CORRECT. IF IT IS INSTALLED
WITH 5 SCREWS AND THE WIRES EXIT THE TOP OF THE MOTOR, YOU HAVE
A CALCO PUMP and MUST use the kit below. |

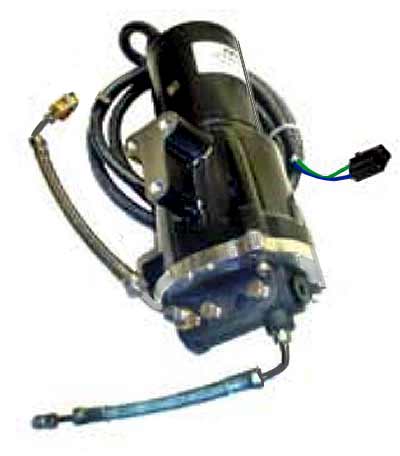

PT114-NPK
Replaces OMC CALCO-made
Trim Pumps
(3-wire motor,
wires through
top of motor).
Original valve body held in
with 5 screws.
Original pump unit discontinued.
Comes with hose & fitting kit to adapt for use
in place of original Calco pump.
ALSO REPLACES PT114-RP PRESTOLITE unit as an assembly (above) if old pump is worn or damaged
since original pump is no longer available
COMPLETE NEW UNIT, NO CORE REQUIRED
Click Image for Larger
|
PT114-NPK
NEW REPLACEMENT UNIT
NO CORE REQUIRED |
$628.00 |
|

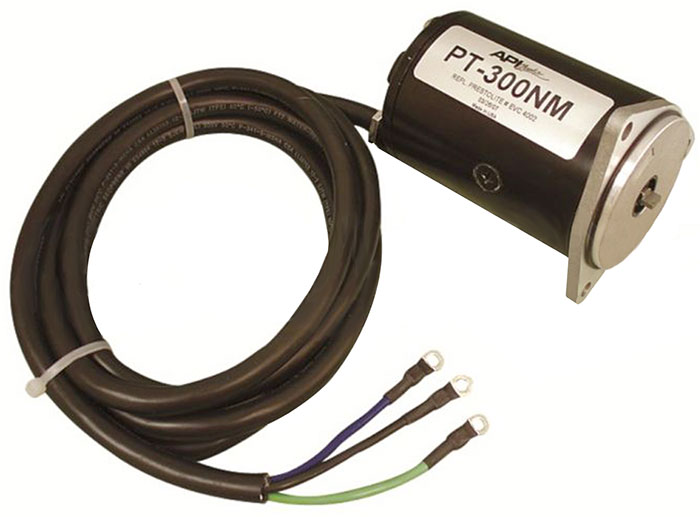

 PT300NM
V4 & V6 1976-80
Replaces OMC # 387277, 582048, 582155
Prestolite EVC4002
3-Wire Connection, O-Ring Included
Click Image for Larger |
PT300NM
FITS ALL INTERNAL MOUNTED 3 WIRE APPS 1976-80 |
$199.00 |
|

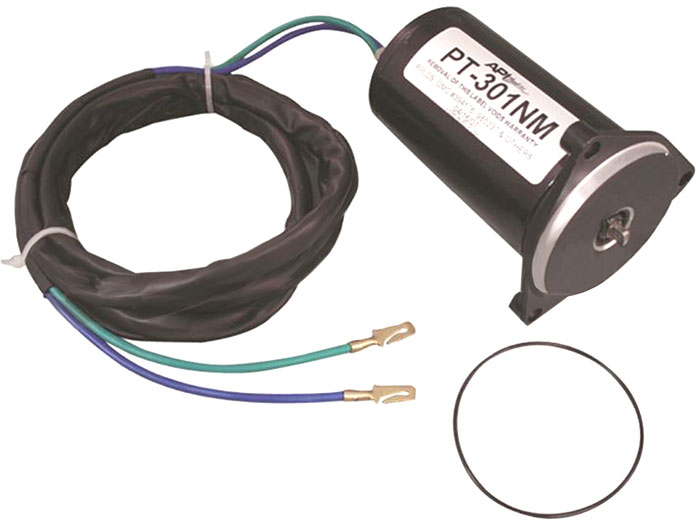

 PT301NM
OMC Sea Drive 1981-92
Replaces OMC # 391264, 393259, 393988,
394176, 435548, 983019, 983446, 985237
Prestolite PMW4002
2-Wire Connection, 3-Bolt Mount,
O-Ring Included
Click Image for Larger |
PT301NM
FITS ALL INTERNAL MOUNTED
NON-FASTRACK 2 WIRE APPS |
$156.00 |
|
 PT302NM
40, 48, 50 HP 1989-UP
Replaces OMC # 433226, 435532, 437801
2-Wire Connection,
4-Bolt Mount,
O-Ring Included
Click Image for Larger |
PT302NM
FITS 40-48-50 HP
1989 UP |
$230.00 |
|

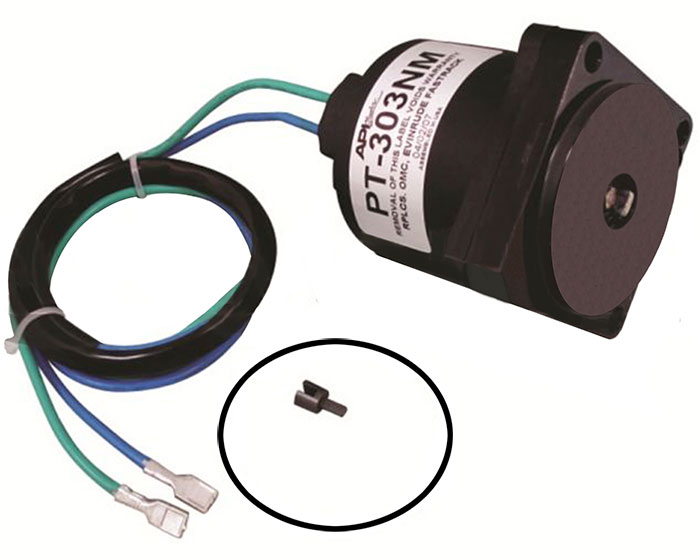

 PT303NM
OMC FasTrak T&T Systems
(60, 70, 90, 115, 150, 175, 200, 225 HP)
1991-UP
120, 140 HP 1991-94
50 HP 3-CYL, 60 HP, V4
1995-UP
Replaces OMC # 434495, 434496, 438529, 438531
2-Wire Connection, 4-Bolt Mount,
O-Ring, Flat Blade Shaft Coupler Included
Click Image for Larger |
PT303NM
FITS FASTRACK AS LISTED |
$199.00 |
|

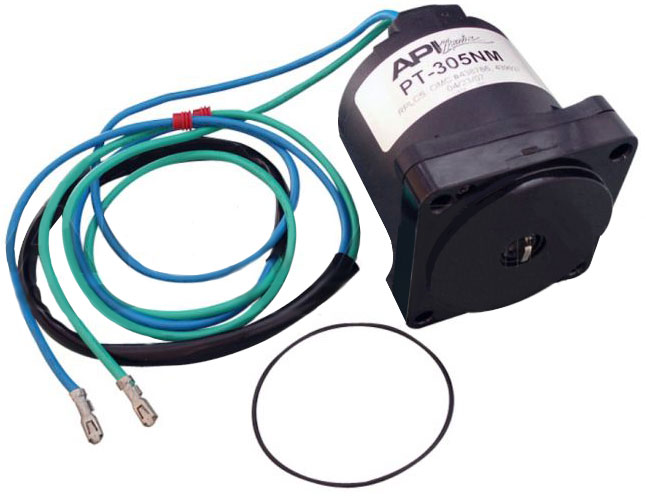

 PT305NM
OMC T&T Systems
75-250 HP FFI MOTORS
1998-UP
Replaces OMC # 438786, 439937, 5005254
FEMALE SEALED TERMINAL ENDS ,
O-Ring Included
Click Image for Larger |
PT305NM
LATE MODEL INJECTED MOTORS |
$199.00 |
|

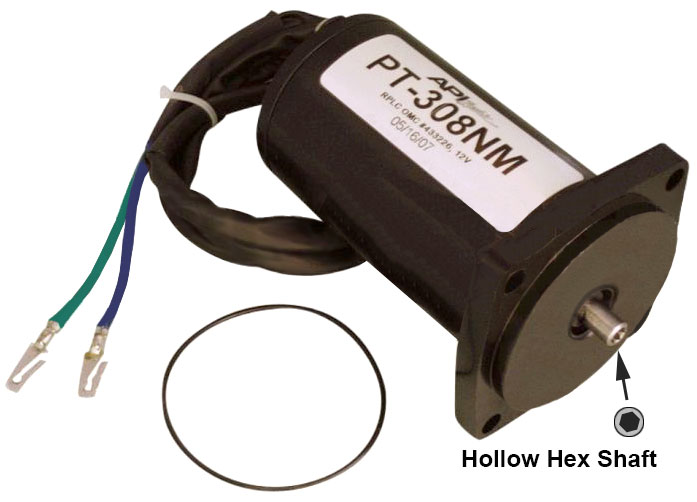

 PT308NM
Evinrude-Johnson
40-50 HP "M" Suffix
1989-92
Replaces OMC # 433226
2-Wire, 4-Bolt
Hollow Hex Shaft,
Male Spade Terminals
O-Ring Included
Click Image for Larger |
PT308NM
40-50 HP "M" Suffix |
$229.00 |
|

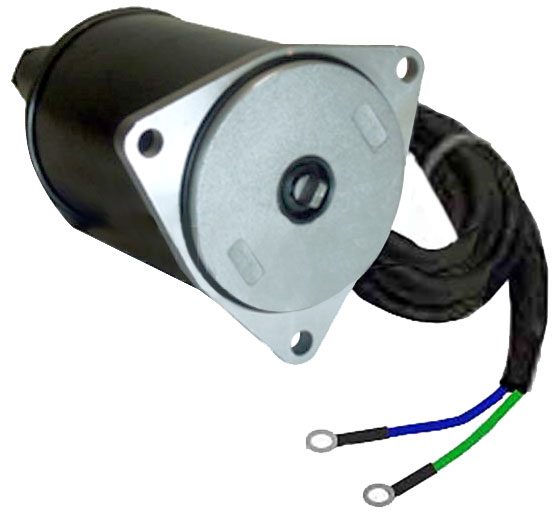

 PT309NM-3
Evinrude-Johnson
MOST V6 1993-94
V8 1993-UP
Replaces OMC # 435548
2-Wire FEMALE SPADE
Terminals
3-Bolt, O-Ring Included
Click Image for Larger |
PT309NM-3
V6, V8 |
$229.00 |
|
GOOD NEWS!!
API IS NOW MANUFACTURING NEW VALVE
BODIES TO REPLACE THE ones below the 112 AND 116 PRESTOLITE STYLE
motor/reservoir units.
NO CORE IS REQUIRED TO PURCHASE THESE HYDRAULIC UNITS.
Yours can be rebuilt instead, with a lead time of up to 4 weeks. CALL for
price |

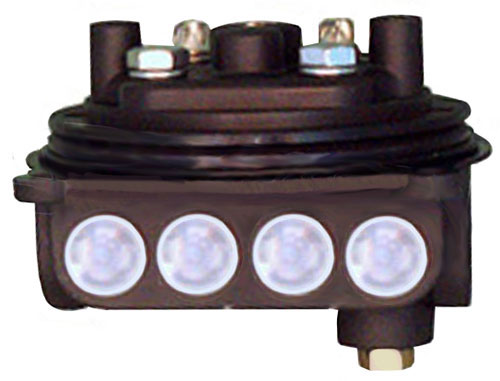

 VB112-4
Fits MANY older Johnson-Evinrude
2-cylinder w/side connections
O-ring Included
Has 4-line Connections
Click Image for Larger |
NOW AVAILABLE
VB112N-4
NEW HYDRAULIC VALVE BODY!
NO CORE REQUIRED! |
$299.00 |
|
TRIM ASSEMBLIES SUBJECT TO AVAILABILITY |
TILT
& TRIM
SYSTEMS 1978-1998 3-CYL & CROSSFLOW
INCLUDING 88 & 120 SPL MODELS 1991-98 |
 |
HORSEPOWER |
TYPE / YEAR |
PRICE |
PURCHASE |
| 60 |
3-CYL 1986-90 |
$825 |
2-WIRE
MOTOR
OM-PT-01-R
|
| 70 |
3-CYL 1979-90 |
| 88, 112 |
CROSSFLOW
1987-98 |
| 90 |
CROSSFLOW
1981-98 |
| 100,115 |
CROSSFLOW
1978-90 |
| 140 |
CROSSFLOW
1978-84 |
| 150-175-200 |
CROSSFLOW
1978-90 |
2-WIRE
MOTOR REPLACEMENT KIT For 3-WIRE
Assemblies, Above Years
Relay box & Harness
Included
(not shown) 1978-81
YOU MUST USE IF REPLACING
ORIGINAL 3-WIRE SYSTEM!! |
$895 |
3-WIRE
MOTOR
REPLACEMENT
OM-PT-01A-R
|
| TILT
& TRIM
SYSTEMS 1985-1990 LOOPER |
 |
HORSEPOWER |
TYPE / YEAR |
PRICE |
PURCHASE |
120-140
200-225 |
LOOPER
1985-90
LOOPER
1986-90 |
$850 |
OM-PT-02-R
|
| FASTRAC® TRIM SYSTEMS 1991-2006 |
 |
HORSEPOWER |
TYPE / YEAR |
PRICE |
PURCHASE |
60-70
90-115 |
3-CYL 1991-01
60° 1995-06 |
$850
incl. $50 Core |
OM-PT-03-R
|
90-115
120-130-140 |
CROSSFLOW
1991-98
LOOPER
1991-01 |
$850
incl. $50 Core |
OM-PT-04-R
|
| 150-175 |
60° 1991-06 |
$850
incl. $50 Core |
OM-PT-05-R
|
| 200-225-250 |
LOOPER
1991-06 |
$850
incl. $50 Core |
OM-PT-06-R
|
| EVINRUDE JOHNSON TRIM TILT ACCESSORIES |
| APPLICATION/DESCRIPTION |
PART # |
PRICE |
SELECT |
R473 Trim Relay
Replaces OMC # 582472, 582473, 586224
12V 30A
|
ARCO R473
OMC 586224 |
$16.00 |
|
 |

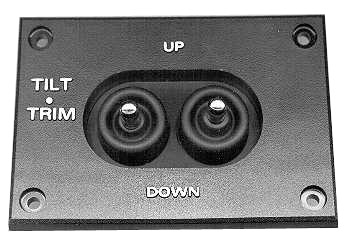

176538
DUAL DASH MOUNT
TRIM SWITCH
TWIN ENGINE |
$115.00 |
|
| SIMILAR
TO ABOVE, FOR SINGLE ENGINE |
176539 |
$87.00 |
|
| TRIM
TILT DASH MOUNT TOGGLE SWITCH ONLY |
976443 |
$29.25 |
|
LOWER ENGINE COVER MOUNT TRIM
SWITCH
(FOR SWITCH ON SIDE OF THE
MOTOR ITSELF) 3 & 4 Cylinder Motors  |
585146 |
$71.00 |
|
LOWER ENGINE COVER MOUNT TRIM
SWITCH
(FOR SWITCH ON SIDE OF THE
MOTOR ITSELF) 6 Cylinder Motors  |
584842 |
$87.00 |
|
TRIM
"Y" CONNECTORS
TO PROVIDE ELECTRICAL CONNECTION TO
"TAP INTO" TRIM
HARNESS WITH A SECOND
SWITCH FOR ANOTHER STATION. |
176534
6"CONNECTOR ONLY |
$41.00 |
|
176560
"Y" CONNECTOR
WITH 13' CABLE
AND
REMOTE TRIM SWITCH |
$71.50 |
|
176588
13' HARNESS, NO SWITCH |
$55.00 |
|
REPLACEMENT
TRIM SWITCH AND LEAD ONLY FOR
OMC STANDARD SURFACE MOUNT CONTROL
BOX
1996-2004
 |
176521 |
$81.00 |
CONTACT US |
REPLACEMENT
TRIM SWITCH AND LEAD ONLY FOR
OMC STANDARD SURFACE MOUNT CONTROL
BOX
1979 THRU 1995
 |
395821
NOW DISCONTINUED.
We have a source that still has a few but the price is way up there |
$133.00 |
CONTACT US |
REPLACEMENT
TRIM SWITCH AND LEAD ONLY
FOR OMC BINNACLE MOUNT CONTROL BOX
1996 AND NEWER
 |
586449 |
$56.00 |
|
REPLACEMENT
TRIM SWITCH AND LEAD ONLY FOR
OMC BINNACLE MOUNT CONTROL BOX
1995 ONLY
 |
176532 |
$52.25 |
|
REPLACEMENT
TRIM SWITCH AND LEAD ONLY FOR
OMC BINNACLE MOUNT CONTROL BOX
1994 AND OLDER
 |
174285 |
$99.00
Discontinued. CHECK with us,
we may be able to find one. |
CONTACT US |
REPLACEMENT
TRIM SWITCH AND LEAD FOR
OMC
CONCEALED SIDE MOUNT CONTROL BOX.
FITS ALL; INCLUDES ADAPTER FOR
PRE-1996
HARNESS (not shown)
|
176530 |
$59.00 |
|
Now that you have found
what you need, please order it using the shopping cart above,
the secure
quick order form, or call
in your order.
We pay the freight out in USA on all orders over $100.00. Orders
less than this amount will have a shipping and handling charge
of $8.75 added. Some bulky and heavy items will incur additional
charges. You will be notified beforehand if this is the case.
Remember, all orders receive free technical
support from the MasterTech!
|
|
