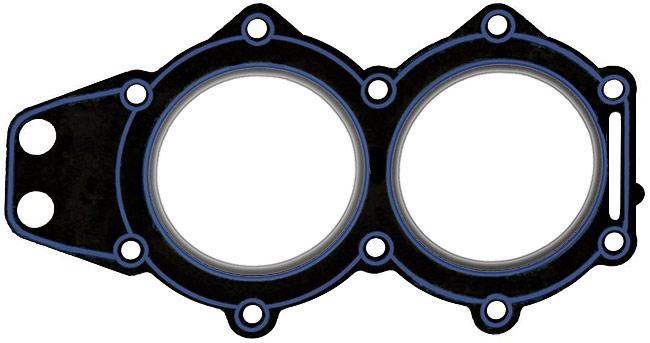

Typical 2-cylinder
Head Gasket

307069 18-2957

Meet the MasterTech!
(click picture)

If your Mfgr. says:

That motor's 7 years old!!
Part is no longer available.
We lose $$ on service!
EPA made me do it!
Part's at central warehouse, you'll get it next month.
We don't make parts for those.
We only do warranty work.
Our techs only fix late models.
No clue what's wrong! So we'll work time & material.

Baloney!!

Contact
the Mastertech!

CYLINDER HEAD GASKETS

NOTE!! You MUST PROVIDE THE MODEL NUMBER in the shopping cart when ordering.
I cannot send you the correct parts otherwise!

60° HEAD O-RINGS

MANY 3 & 4 CYLINDER MOTORS HAVE A WATER JACKET COVER OVER THE HEAD WHICH WILL ALSO
REQUIRE A GASKET SINCE THEY OFTEN GET DESTROYED WHEN REMOVING THE HEAD.
THEY ARE LISTED WITH THE HEAD GASKET FOR YOUR CONVENIENCE.

PRICES LISTED ARE PER EACH
(FOR EXAMPLE, ORDER QTY OF "2" FOR A V4 IF YOU'RE DOING BOTH HEADS)
YOU CAN ADJUST THE QUANTITY AT IN THE SHOPPING CART TIME
Gaskets listed are AFTERMARKET unless noted as OEM (Bombardier Johnson-Evinrude)

V4 GASKETS
V6 GASKETS

1, 2, & 3 CYL GASKETS
APPLICATION DESCRIPTION	GASKETS	SELECT
1.5, 2 HP, "JR", "COLT" 1968-1990	313782 OEM ONLY	$9.00
2.5, 3, 4, 4.5, ULTRA, EXCEL 4 1981-1993	998 OEM 332010	$17.50
3 HP 1952-1968 4 HP 1970-1979	203130 OEM	$9.75
5 HP 1941-1953 TD & TN Series	041336	DISCONTINUED NOT AVAILABLE
5.5 HP 1954-1958	303438 OEM ONLY	$12.00
5 HP 1965-1968 5.5 HP 1959-1964 6 HP 1965-1979	2961 OEM 329103	$23.00
7.5 HP 1953-1958	18-2952	$18.50
5 & 6 HP 1984-1995 7.5 HP 1980-1993 8 HP 1984-1995	3800 OEM 325273	$25.25
9.5 HP 1964-1973	766870 WAS 309612 OEM ONLY	$26.00
10 HP 1955-1958 (motor without thermostat)	301862 OEM ONLY DISCONTINUED, LIMITED AVAILABILITY	$39.00
10 HP 1959-1963 (motor with thermostat)	308394 OEM ONLY	$34.00
9.9, 15 HP 1974-1992 14 HP 1988-1990	2963 OEM 330818 Click Image For Larger	$18.00
9.9, 15 HP 1993-UP	222 OEM 338222	$22.25
15 HP 1954-1958	203247 OEM ONLY	$31.50
18 HP 1957-58	304688 OEM ONLY DISCONTINUED, LIMITED AVAILABILITY	$31.75
18 HP 1959-1973 20 HP 1966-73 25 HP 1969-1976	2962 OEM 322332 Click Image For Larger	$26.75
18 JET 1995-1998 25 HP 1979-2003 28 HP 1986-1996 30 HP 1984-2003 35 HP 1979-1988	3803 WAS 329419 OEM 765012 Click Image For Larger	$14.50
25, 30 HP 1951-55 30 HP 1956	302583 OEM ONLY LIMITED AVAILABILITY	$46.50
25 HP 1977-1978 20 HP 1981-1999 35 HP 1976-1978	2954 OEM 319633	$29.50
33 HP 1965-1970 35 HP 1957-1958	2951 OEM 304720	$24.25
40 HP 1960-1976	2957 OEM 307069	$34.00
35 HP 1987 ONLY 40 HP 1984-1997 48 HP 1987-1997 50 HP 1979-1997 55 HP 1976-1979 60 HP 1980-1985	3802 OEM 335359 Click Image For Larger	$25.25
	992 OEM 315538 HEAD COVER GASKET needed to change thermostat Click Image For Larger	$3.00
50 HP 1971-1975 55 HP 1977-2001	2958 OEM 335359 Click Image For Larger	$32.00
55 HP 1968-1969 60 HP 1970-71 60 HP 1986-88 65 HP 1972-73 65 HP COMMERCIAL 1984-86	505-06 OEM 766871 Click Image For Larger	$14.25
	505-05 OEM 313413 HEAD GASKET Click Image For Larger	$19.75
60 HP 1989-1997 SST 60 1989-1990 65 HP COMMERCIAL 1987-95	3836 OEM 329836 HEAD GASKET Click Image For Larger	$22.50
70 HP 1974-1985 75 HP 1975-1988	505-06 OEM 766871 Click Image For Larger	$14.25
	505-05 OEM 313413 HEAD GASKET Click Image For Larger	$19.75
	505-05KIT HEAD GASKET and COVER GASKET KIT Click Image For Larger	$33.00
V4 GASKETS
65 JET 1991-95 (90 HP POWERHEAD) 80 JET 1991-1996 (115 HP POWERHEAD)	505-09 OEM 318335 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$3.50
	505-08 OEM 318358 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$16.00
	505-08KIT HEAD GASKET and COVER GASKET SET (ORDER 2 PER ENGINE) Click Image For Larger	$19.50
75 HP 1960-1965 80 HP 1966-1967 90 HP 1964-1965 100 HP 1966-1972 115 HP 1969-1970	505-09 OEM 318335 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$3.50
	18-2959 OEM 306048 (ORDER 2 PER ENGINE) Click Image For Larger	$39.00
85 HP 1973-1978	505-09 OEM 318335 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$3.50
85 HP 1973-1978	318662 NLA	NLA
85 HP 1979-1980 85 HP 1991-1995 88 HP 1986-1995 90 HP 1981-1995 100 HP (incl. COMM.) 1979-1995	505-09 OEM 318335 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$3.50
	505-08 OEM 318358 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$16.00
	505-08KIT HEAD GASKET and COVER GASKET SET (ORDER 2 PER ENGINE) Click Image For Larger	$19.50
1600CC 1988 110 HP 1986-1989 115 HP 1973-1999 135 HP 1973-1976 140 HP 1973-1984	505-09 OEM 318335 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$3.50
	505-08 OEM 318358 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$16.00
	505-08KIT HEAD GASKET and COVER GASKET SET (ORDER 2 PER ENGINE) Click Image For Larger	$19.50
120 HP 1985-1987 140 HP 1985-1987	3837 OEM 328623 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$39.50
120 HP 1988-1994 125 COMMERCIAL 1992-1995 130 HP 1995-1998 140 HP 1988-1994	2197 OEM 340115 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$28.00
V6 GASKETS
150 HP 1978-1991 155 COMMERCIAL 1984-1992 2500CC 1988 175 HP 1977-1991 235 1980-1985	763 OEM 321028 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$5.00
	967 OEM 335360 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$36.50
175 HP 1990-1991	763 OEM 321028 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$5.00
175 HP 1990-1991	3801 OEM 335361 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$23.00
2.6L 150, 235 HP 1983-1985	763 OEM 321028 HEAD COVER GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$5.00
2.6L 150, 235 HP 1983-1985	329774 HEAD GASKET (ORDER 2 PER ENGINE)	$59.00
185 HP 1990-1993 200 1988-1993 225 1988-1993	3839 OEM 333670 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$20.00
200 1986-1987 225 1986-1987	3838 OEM 331211 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$36.25
200 1999-2001 225 1999-2001 250 1999-2001	919 OEM 345257 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$34.50
275/3.6L 1985-1987	3840 OEM 329786 HEAD GASKET (ORDER 2 PER ENGINE) Click Image For Larger	$55.25
HEAD O-RINGS 60°, FFI FICHT, and ETEC MOTORS
ALL 60°, FFI FICHT, and ETEC MOTORS with Head O-rings	2745 OEM 335523	$4.00

We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. All orders normally ship via USPS. Remember, all orders receive free technical support from the MasterTech!
