CDI ELECTRONICS

ELECTRICAL PARTS
70 HP thru 85 HP

Rapair/CDI Electronics has grown to be THE source for quality electronic ignition parts for all makes of US outboard motors.
Now supplying some of the OEM manufacturers with selected components. Some components of the outboard electrical system are not available from CDI, in this case we have listed FACTORY or SIERRA parts.

Engine wiring harnesses are also available for most motors. Please CALL US for price & availability.

OMC APPLICATION GUIDE
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
70	-	73	3	113-1726 PP3/6 w/Cover	173-1235	153-3408	133-1251	183-2303
70	-	74-77	3	113-1726 PP3/6 w/Cover	173-1235	153-3408	133-1251	183-2303
70	-	78	3	113-1726 PP3/6 w/Cover	173-1235	153-3408	133-1251	183-2303
70	-	79-84	3	113-2138 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5176
70	-	85	3	113-2705 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
70	EL, TL w/o Trim	86-87	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
70	EL, TL with Trim	86-87	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
70	w/o Trim	88	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
70	with Trim	88	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
70	-	89-90	3	113-3748 CD3 SL 6700	173-4766	153-3408	133-3378	18-5179
70	EL, TL, TX	91	3	113-3748 CD3 SL 6700	173-4766	153-3408	133-3378	18-5179
70	TTL	91	3	113-3748 CD3 SL 6700	173-4766	153-3408	133-3378	18-5179
70	EL, TL, TX	92	3	113-3748 CD3 SL 6700	173-4560	193-4476	133-3378	18-5179
70	TTL	92	3	113-3748 CD3 SL 6700	173-4560	193-4476	133-4558	18-5179
70	EL, TL, TX	93-94	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	TTL	93	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	TTL C & S	94	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
70	TTL	94-95	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	DT, JL, EL, TL	95	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	DT, JL, EL, TL	96	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	RNLB	96	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
70	-	97-00	3	113-4808 CD3 AL 6700	173-4560	193-4476	133-4804	18-5179
75	-	75-76	3	113-1726 PP3/6 w/Cover	173-1235	153-3408	133-1251	183-2303
75	-	78	3	113-1726 PP3/6 w/Cover	173-1235	153-3408	133-1251	183-2303
75	-	79-84	3	113-2138 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5176
75	-	85	3	113-2705 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
75	EC	86-87	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
75	-	88	3	113-2115 CD3/6 No Limit	173-3724	153-3408	133-3378	18-5179
80	SPEEDIFOUR	67	4	N/A	R580650	153-0656	POINTS	379569
80	STARFLITE	67	4	N/A	R580648	193-0076	POINTS	433659
80	Jet	92	4	113-4028 CD4/8 No Limit	173-3536	193-4204	133-3379	18-5179
80	Jet	93-94	4	113-4030 CD4/8 5800	173-3536	193-4204	133-3379	18-5179
80	Jet Tiller	95	4	113-4030 CD4/8 5800	173-3536	OR104	133-3379	18-5179
80	Jet	96	4	113-4030 CD4/8 5800	173-3536	193-4204	133-3379	18-5179
80	Jet	2000	4	113-6292 CD4 OPTICAL	173-4849	193-6048	133-6343	N/A
85	Jet 115 JLE	97	4	113-4030 CD4/8 5800	173-3536	193-4204	133-3379	18-5179
85	V4S SPEEDIFOUR	68	4	113-7123 BATTERY CD	173-0726	153-0705	POINTS	183-2382
85	V4A STARFLITE	68	4	113-7123 BATTERY CD	173-0726	153-0705	POINTS	183-2382
85	-	69	4	113-7123 BATTERY CD	173-0744	153-3408	POINTS	183-2382
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
85	-	70-72	4	113-7123 BATTERY CD	173-0744	153-3408	POINTS	183-2382
85	6 Amp	73	4	113-1731 PP4 w/Cover	173-1225	153-3408	133-1900	183-4632
85	12 Amp	73	4	113-1731 PP4 w/Cover	173-2099	153-3408	133-1900	183-4632
85	6 Amp	74-76	4	113-1731 PP4 w/Cover	173-1225	153-3408	133-1900	183-4632
85	12 Amp	74-76	4	113-1731 PP4 w/Cover	173-2099	153-3408	133-1900	183-4632
85	6 Amp	77	4	113-1731 PP4 w/Cover	173-1225	153-3408	133-1900	183-4632
85	12 Amp	77	4	113-1731 PP4 w/Cover	173-2099	153-3408	133-1900	183-4632
85	-	78-79	4	113-2125 CD4 No Limit	173-3672	153-3408	133-3376	18-5176
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
85	-	80-82	4	113-2125 CD4 No Limit	173-3672	153-3408	133-3376	18-5176
85	-	83	4	113-2125 CD4 No Limit	173-3672	153-3408	133-3376	18-5176
85	TTL	91	4	113-4028 CD4/8 No Limit	173-4766	OR104	133-3379	18-5179
85	TTL	92-95	4	113-4028 CD4/8 No Limit	173-3536	193-4204	133-3379	18-5179
85	TTL w/o Trim	94	4	113-4030 CD4/8 5800	173-3536	OR104	133-3379	18-5179
85	TTL with Trim	94	4	113-4030 CD4/8 5800	173-3536	193-4204	133-3379	18-5179
85	TTL	95	4	113-4028 CD4/8 No Limit	173-3536	193-4204	133-3379	18-5179

CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION	PART #	PRICE	SELECT
POWERPACK	113-1726 Click Image For Larger	Bombardier Price $153.96 OUR PRICE $130.50
POWERPACK	113-1731 Click Image For Larger	Bombardier Price $169.00 OUR PRICE $130.50
POWERPACK	113-2115 Click Image For Larger	Bombardier Price $115.96 OUR PRICE $99.50
POWERPACK	113-2125 Click Image For Larger	Bombardier Price $111.00 OUR PRICE $99.00
POWERPACK	113-2138 Click Image For Larger	$130.00

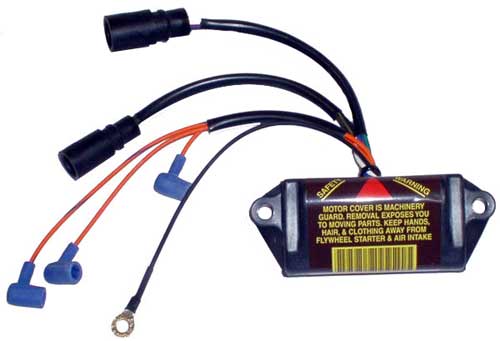

POWERPACK	113-2705 Click Image For Larger	Bombardier Price $148.96 OUR PRICE $129.50
POWERPACK	113-3748 Click Image For Larger	Bombardier Price $149.96 OUR PRICE $130.00
POWERPACK	113-4028 Click Image For Larger	Bombardier Price $140.96 OUR PRICE $122.50
POWERPACK	113-4030 Click Image For Larger	Bombardier Price $161.96 OUR PRICE $144.00
POWERPACK	113-4808 Click Image For Larger	Bombardier Price $292.47 OUR PRICE $270.00
POWERPACK	113-6292 Click Image For Larger	Bombardier Price $295.96 OUR PRICE $264.25
POWERPACK Same as above, but kit with wires	6292K1 Click Image For Larger	Bombardier Does Not Make A Kit OUR PRICE $266.50
POWERPACK	113-7123 Click Image For Larger	Bombardier Price $377.40 OUR PRICE $310.00
TIMER BASE	133-1251 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $288.00
TIMER BASE	133-1900 Click Image For Larger	Bombardier Price $339.97 OUR PRICE $290.00
TIMER BASE	133-3376 Click Image For Larger	Bombardier Price $281.63 OUR PRICE $234.00
TIMER BASE	133-3378 Click Image For Larger	Bombardier Price $242.47 OUR PRICE $207.00
TIMER BASE	133-3379 Click Image For Larger	Bombardier Price $251.63 OUR PRICE $215.00
TIMER BASE	133-4558 Click Image For Larger	Bombardier Price $200.80 OUR PRICE $180.00
TIMER BASE	133-4804 Click Image For Larger	Bombardier Price $210.80 OUR PRICE $180.00
OPTICAL SENSOR	133-6343 Click Image For Larger	Bombardier Price $76.63 OUR PRICE $65.00
RECTIFIER	153-0656 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $85.00
RECTIFIER	153-0705 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $77.75
RECTIFIER	153-3408 Click Image For Larger	Bombardier Price $49.96 OUR PRICE $41.00
STATOR	173-0726 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $224.50
STATOR	173-0744 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $224.50
STATOR	173-1225 Click Image For Larger	Bombardier Price $403.30 OUR PRICE $355.50
STATOR	173-1235 Click Image For Larger	Bombardier Price $234.13 OUR PRICE $205.25
STATOR	173-2099 Click Image For Larger	Bombardier Price $384.13 OUR PRICE $344.00
STATOR	173-3536 Click Image For Larger	Bombardier Price $275.80 OUR PRICE $236.75
STATOR	173-3672 Click Image For Larger	Bombardier Price $265.80 OUR PRICE $237.50
STATOR	173-3724 Click Image For Larger	Bombardier Price $195.80 OUR PRICE $174.75
STATOR	173-4560 Click Image For Larger	Bombardier Price $259.13 OUR PRICE $221.25
STATOR	173-4766 Click Image For Larger	Bombardier Price $284.13 OUR PRICE $229.50
STATOR	173-4849 Click Image For Larger	Bombardier Price $373.30 OUR PRICE $312.50
STATOR	R580648 REPAIR & RETURN ONLY Click Image For Larger	$178.50
STATOR	R580650 REPAIR & RETURN ONLY	$153.00
IGNITION COIL	183-2303 Click Image For Larger	Bombardier Price $45.96 OUR PRICE $40.00
IGNITION COIL	18-5176 Click Image For Larger	Bombardier Price $47.96 OUR PRICE $35.00
IGNITION COIL	183-2382 Click Image For Larger	Bombardier Price $51.96 OUR PRICE $49.00
IGNITION COIL	379569 OEM ONLY	$145.00
IGNITION COIL	18-5179 Click Image For Larger	Bombardier Price $34.00 OUR PRICE $26.00
IGNITION COIL	183-4632 Click Image For Larger	Bombardier Price $47.96 OUR PRICE $38.00
IGNITION COIL	433659 OEM ONLY	$86.00
REGULATOR	193-0076 Click Image For Larger	Bombardier No Longer Makes This OUR PRICE $227.00
RECTIFIER- REGULATOR	193-4204 Click Image For Larger	Bombardier Price $108.95 OUR PRICE $98.00
RECTIFIER- REGULATOR	193-4476 Click Image For Larger	$216.00
RECTIFIER- REGULATOR	193-6048 Click Image For Larger	Bombardier Price $246.63 OUR PRICE $229.00
IGNITION COIL	18-5179 Click Image For Larger	Bombardier Price $34.00 OUR PRICE $28.50
