CDI ELECTRONICS

ELECTRICAL PARTS
150 HP thru 175 HP

Flywheel Magnets Came Off Your V4 or V6 35-Amp Charging System (90° Motors Only) ??
Don't buy a new flywheel; Get magnet kits HERE

Rapair/CDI Electronics has grown to be THE source for quality electronic ignition parts for all makes of US outboard motors.
Now supplying some of the OEM manufacturers with selected components. Some components of the outboard electrical system are not available from CDI,
in this case I have listed the in this case I have listed the FACTORY part in its place in the shopping cart.

Engine wiring harnesses are also available for most motors. Please CALL US for price & availability.

OMC APPLICATION GUIDE
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
150	-	79-83	6	113-2138 CD3/6 No Limit	173-3672	193-5204	133-3377	18-5176
150	TL/TX	84	6	113-2138 CD3/6 No Limit	173-3672	193-5204	133-3377	18-5176
150	AN/ST 10 Amp	84	6	113-2138 CD3/6 No Limit	173-3672	193-5204	133-3377	18-5176
150	AN/ST 35 Amp	84	6	113-2138 CD3/6 No Limit	173-3668	193-5204	133-3377	18-5176
150	TL/TX	85	6	113-2651 CD3/6 5800	173-3672	193-5204	133-3377	18-5176
150	ST 10 Amp	85	6	113-2651 CD3/6 5800	173-3672	193-5204	133-3377	18-5176
150	ST 35 Amp	85	6	113-2651 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
150	TL/TX	86-87	6	113-3114 CD3/6 5800	173-3672	193-5204	133-3377	18-5176
150	ST	86-87	6	113-3114 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
150	TL/TX	88	6	113-3114 CD3/6 5800	173-3837	193-4204	133-3377	18-5176
150	ST	88	6	113-3114 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
150	TL/TX	89	6	R584044* CD6SL 5800	173-3837	193-4204	N/A	18-5176
150	SL/ST	89-90	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
150	TL/TX	90	6	R584044* CD6SL 5800	173-3837	193-4204	N/A	18-5176
150	ST	90	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
150	GL, EL, EX, NX 60°	91	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	18-5176
150	TL, TX, CX, JL	91	6	584044 CD6SL 5800	173-3837	193-4204	133-6343 (OPTICAL SENSOR)	18-5176
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
150	SL, ST	91	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
150	-	92-93	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	without VRO	94	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	with VRO	94	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	-	95	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	-	96-05	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-6048	133-6343 (OPTICAL SENSOR)	3740
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
150	Commercial w/o VRO	93	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	Commercial with VRO	93	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	Commercial w/o VRO	95	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
150	Commercial with VRO	95	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
150	Commercial	2000	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-6048	133-6343 (OPTICAL SENSOR)	3740
155	Commercial 36 Amp	84	6	113-2138 CD3/6 No Limit	173-3668	193-5204	133-3377	18-5176
155	Commercial	85	6	113-2651 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
155	Commercial	86-87	6	113-3114 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
155	Commercial	88	6	113-3114 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
155	Commercial 10 Amp	89-90	6	584044 CD6SL 5800	173-3672	193-4204	N/A	18-5176
155	Commercial 35 Amp	89-90	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
155	Commercial	91	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
155	Commercial	92	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
175	-	77-78	6	113-1726 PP3 w/Cover	173-3837	153-3408	133-1486	183-2303
175	-	79-83	6	113-2138 CD3/6 No Limit	173-3672	193-5204	133-3377	18-5176
175	TL, TX	85	6	113-2651 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
175	TL, TX	86-87	6	113-2651 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
175	TL, TX, ST	88	6	113-2651 CD3/6 5800	173-3668	193-5204	133-3377	18-5176
175	-	89-90	6	113-3865 CD6AL 5800	173-4292	193-5204	133-3853	18-5176
175	GL, EL, EX, NX, TX	91	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
175	105 Jet	92-93	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
HP	MODEL	YEAR	CYL	POWER PACK & RPM LIMIT	STATOR	RECTIFIER/ REGULATOR	TRIGGER (TIMER BASE)	IGNITION COIL
175	without VRO	94	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
175	with VRO	94	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
175	105 Jet	95	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-4093	133-6343 (OPTICAL SENSOR)	3740
175	105 Jet	96-98	6	113-4985 CD6AL 6100 (also see kit 113-6367K1 w/Wires,Sensor)	173-4981	193-6048	133-6343 (OPTICAL SENSOR)	3740

CDI ELECTRONICS IGNITION COMPONENTS
DESCRIPTION	PART #	PRICE	SELECT
POWERPACK	113-1726 Click Image For Larger	Bombardier Price $169.00 OUR PRICE $133.50
POWERPACK	113-2138 Click Image For Larger	$130.00
POWERPACK	113-3114 Click Image For Larger	Bombardier Price $149.96 OUR PRICE $135.00
POWERPACK	113-3114 Click Image For Larger	Bombardier Price $149.96 OUR PRICE $135.00
POWERPACK	113-3865 Click Image For Larger	Bombardier Price $289.96 OUR PRICE $260.00
POWERPACK	113-4041 Click Image For Larger	Bombardier Price $259.96 OUR PRICE $230.50

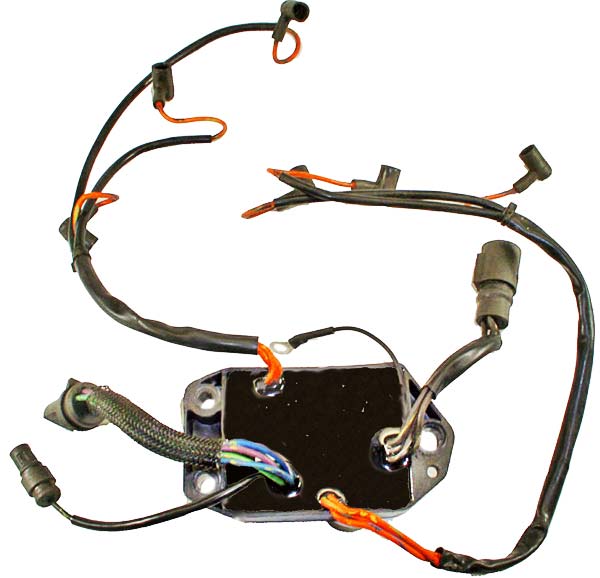

POWERPACK	584044 ORIGINAL EQUIPMENT Click Image For Larger	$206.00
POWERPACK	113-4985 Click Image For Larger	Bombardier Price $259.96 OUR PRICE $237.75

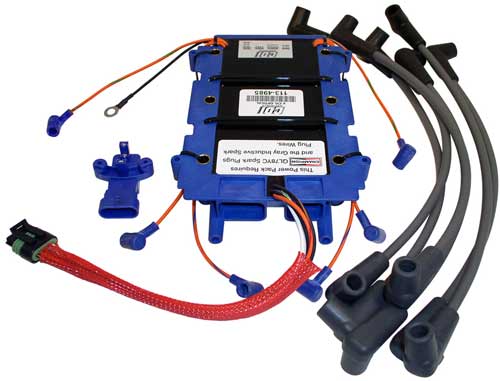

POWERPACK KIT with WIRES & SENSOR	113-6367 Click Image For Larger	Bombardier Price $348.96 OUR PRICE $326.00
STATOR	173-3410 Click Image For Larger	Bombardier Price $286.63 OUR PRICE $247.00
STATOR	173-3668 Click Image For Larger	Bombardier Price $409.13 OUR PRICE $368.75
STATOR	173-3672 Click Image For Larger	Bombardier Price $265.80 OUR PRICE $238.50

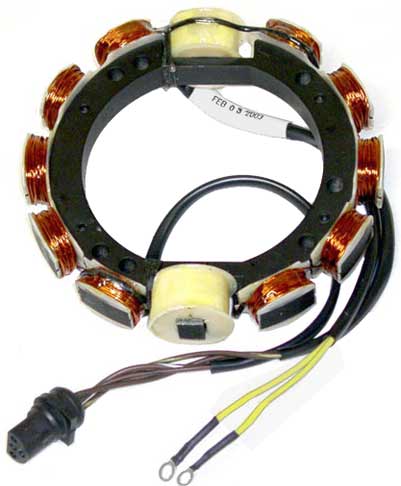

STATOR	173-3837 Click Image For Larger	Bombardier Price $269.13 OUR PRICE $241.75

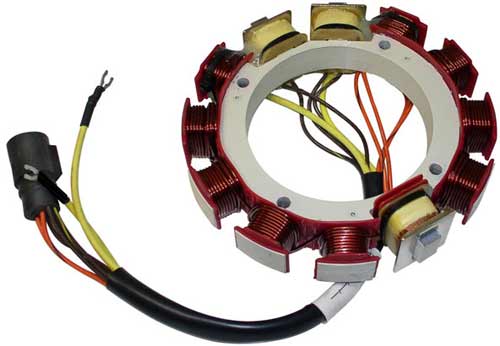

STATOR	173-4292 Click Image For Larger	Bombardier Price $447.47 OUR PRICE $400.50
STATOR	173-4981 Click Image For Larger	Bombardier Price $354.13 OUR PRICE $298.25
RECTIFIER	153-3408 Click Image For Larger	Bombardier Price $49.96 OUR PRICE $38.00
RECTIFIER/REGULATOR	193-4093 Click Image For Larger	Bombardier Price $272.47 OUR PRICE $244.00
RECTIFIER- REGULATOR	193-4204 Click Image For Larger	Bombardier Price $108.95 OUR PRICE $98.00
RECTIFIER- REGULATOR	193-4205 Click Image For Larger	Bombardier Price $103.96 OUR PRICE $90.00
RECTIFIER- REGULATOR	193-5204 Click Image For Larger	Bombardier Price $295.96 OUR PRICE $264.75
RECTIFIER- REGULATOR	193-6048 Click Image For Larger	Bombardier Price $246.63 OUR PRICE $229.00
TIMER BASE	133-1486 Click Image For Larger	No Longer Made by Bombardier OUR PRICE $256.50
TIMER BASE	133-3377 Click Image For Larger	Bombardier Price $323.30 OUR PRICE $288.75
SENSOR	133-3508 Click Image For Larger	Bombardier Price $279.97 OUR PRICE $250.00

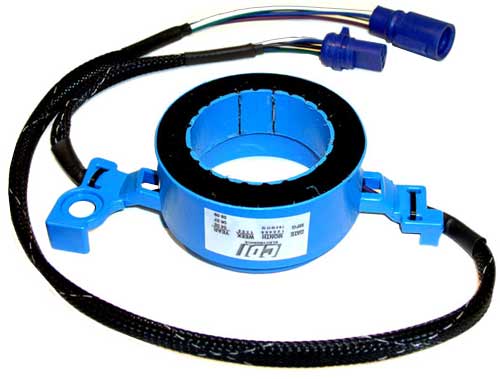

TIMER BASE	133-3853 Click Image For Larger	Bombardier Price $398.30 OUR PRICE $347.00
OPTICAL SENSOR	133-6343 Click Image For Larger	Bombardier Price $76.63 OUR PRICE $68.00
IGNITION COIL	183-2303 Click Image For Larger	Bombardier Price $45.96 OUR PRICE $40.00
IGNITION COIL	18-5176 Click Image For Larger	Bombardier Price $47.96 OUR PRICE $32.00
IGNITION COIL	3740 Click Image For Larger	Bombardier Price $47.00 OUR PRICE $40.00
V4, V6, V8 Magnet Kit for 35 AMP Alternators. Includes magnet, epoxy kit REPLACES ONE MAGNET WILL NOT FIT 60° MOTORS!!!	Click for Larger Image	$26.00 Per Magnet
