CARB KITS

Need help with your carburetor?
Try our carburetor help pages #1 and #2 or our carb tech data page.

ALL KITS ARE ORIGINAL EQUIPMENT
  ALL OUR ORIGINAL EQUIPMENT KITS INCLUDE FLOATS & NEEDLE / SEATS
Most aftermarket kits do not!

  Please Note: Carb kits are 1 per carburetor. If you have more than 1 carburetor then you need more than 1 kit.

CARBURETOR KIT APPLICATION
HP & NOTES YEAR PART NUMBER
1.5, 2, Junior 1968-90 398532
2, 2.3, 3.3 HP 1991 thru- 5007029
Ultra, Excel 4, 2.5 HP 1989-UP 439070
3 HP 1952-67 439071
3 HP 1968 398532
3 HP 1987-90 439070
4 HP 1965-67 439071
4 HP 1969-78 398532
4 HP (external fuel tank) 1979-80 439072
4 HP, 4BR (integral fuel tanks) 1980-83 439070
4.5 HP (external fuel tank)
4BRH, 4 Deluxe (external fuel tank)
1980-83
1984-UP
439072
5 HP
5.5 HP
6 HP
1965-67
1954-79
1954-79
439071
6 HP 1980-85 439072
6 HP 1986-UP 439073
7.5 HP 1954-58 439071
7.5 HP
8 HP
1980-85 439072
8 HP 1986-UP 439073
9.5 HP 1964-73 382048
9.9, 15 HP
One-piece Carb Body ONLY
1974-88 398453
9.9, 15 HP
Two-piece Carb Body ONLY (Plastic Top)
1988-UP
439073
10 HP 1954-63 439071
15 HP
18, 20 HP
1953-56
1957-68
439071
18, 20, 25 HP
1969-UP 396701
Old Big Twins
22, 25, 28, 33, 35
1951-71 439074
28, 30, 35 HP 1976-UP 396701
25-30 HP 1951-57 439074KIT
40 HP 1951-63 & 1971 439074
40 HP 1964-70
1972-78
439075
40 Commercial 1979-UP 396701
40, 45, 48, 50, 55, 60 HP    2 cylinder 1971-UP 396701
Old V4 CROSSFLOW (Fat 4's)
50 HP
60 HP
75 HP
80 & 85 HP

1958-59
1964-67
1960-65
1966-68
436959
55, 60 HP 1968-71 396701
50, 60, 65, 70, 75 HP  3 cylinder 1972-UP 396701
V4 Crossflow  85-140 HP 1969-98 439076
V6 Crossflow  150-235 HP 1976-92 439076
120 HP V4 Looper 1985 Only 439078
130 HP ("P" suffix ONLY in 1995) 1995-99 437327
120, 140 HP Looper 1986-UP 439079
V4 & V6 Looper 90° EXCEPT 200TX* 1991-96 439079
*200TX 1986-94 439078
90 & 115 HP Looper 60° 1995-2006 438996
V6 Looper EXCEPT 150 & 175 HP 1991-UP 439076
150 & 175 HP Looper 60° 1991-2006 438996
V6 90° 200 GT, XP
V6 90° 225 HP
1986-UP 439079
200 & 225 HP Looper
250 HP Looper
1997 ONLY
1998-99
437327
V6 200-250 HP 2000-2001 437327
V8 1985 ONLY 439078
V8 1986-UP 439079
DON'T SEE WHAT YOU NEED?
You can use our
QUICK QUOTE FORM
or CALL US





CARBURETOR KITS PRICING
DESCRIPTION PART # & PICTURE PRICE SELECT
CARB KIT 5007029



Click Image for Larger Size
$69.00

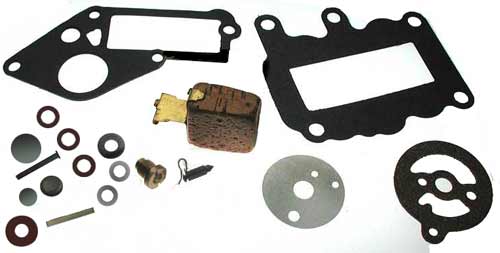

CARB KIT 382048



Click Image for Larger Size
$29.00

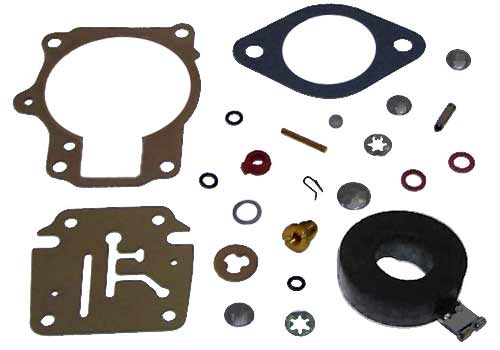

CARB KIT

This kit fits a multitude of very similar carbs. Older versions have 1-piece bodies and will not use the brown gasket (upper left in picture) between the upper plastic cover and the rest of the carb. Otherwise, the carbs take the same parts internally.
396701



Click Image for Larger Size
$33.00

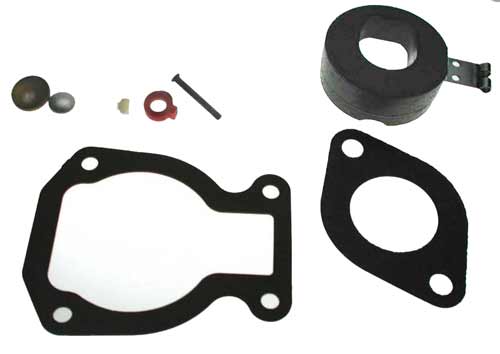

CARB KIT 398453



Click Image for Larger Size
$19.50
CARB KIT 398532



Click Image for Larger Size
$18.50

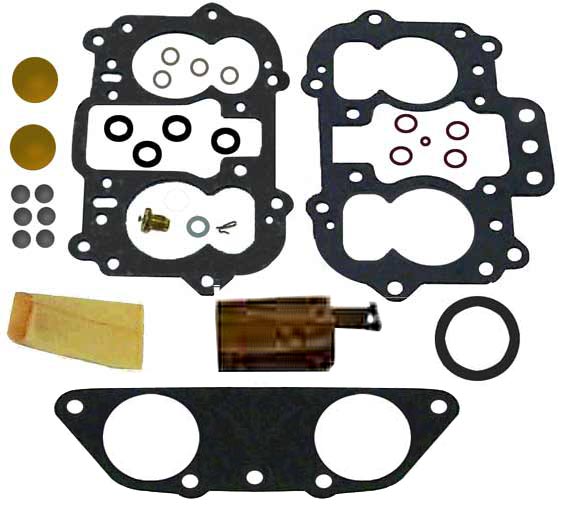

CARB KIT 436959



Click Image for Larger Size
$55.00
CARB KIT 437327



Click Image for Larger Size
$27.00

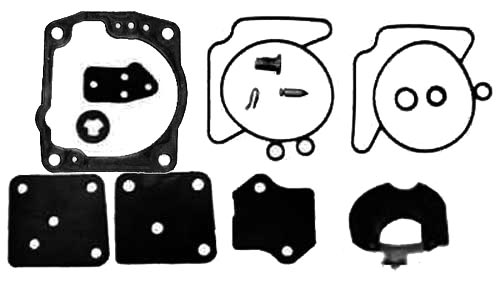

CARB KIT 438996



Click Image for Larger Size
$24.50

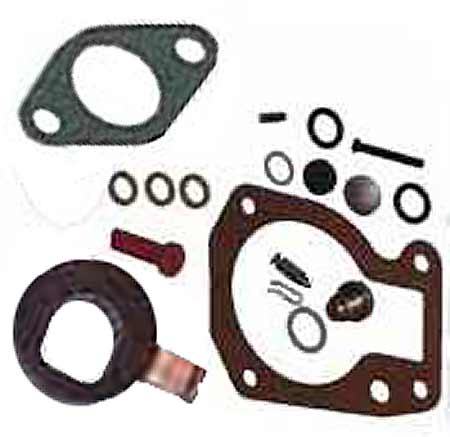

CARB KIT 439070



Click Image for Larger Size
$18.50

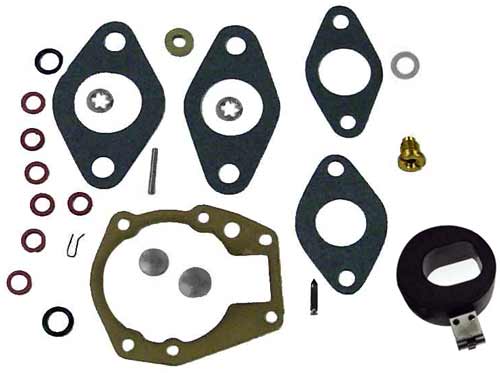

CARB KIT 439071



Click Image for Larger Size
$28.50

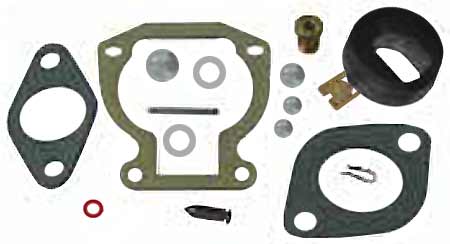

CARB KIT 439072



Click Image for Larger Size
$19.50

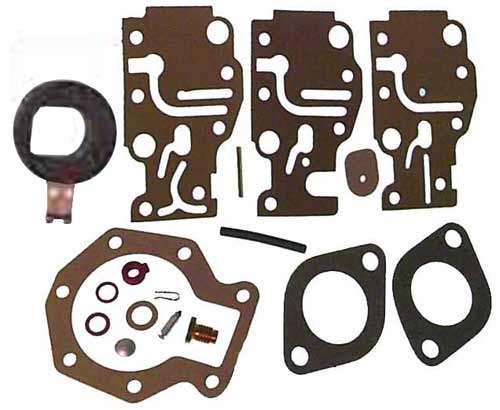

CARB KIT 439073



Click Image for Larger Size
$35.25

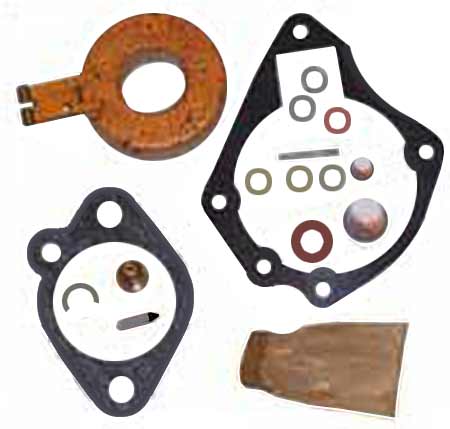

CARB KIT 439074



Click Image for Larger Size
$30.00

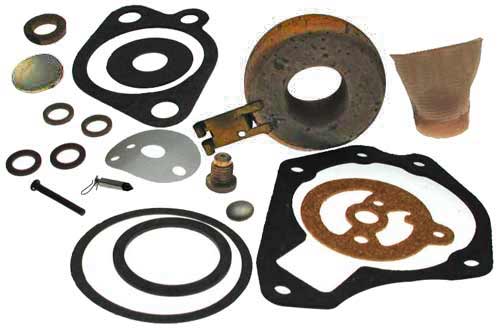

CARB KIT 439075



Click Image for Larger Size
$28.00

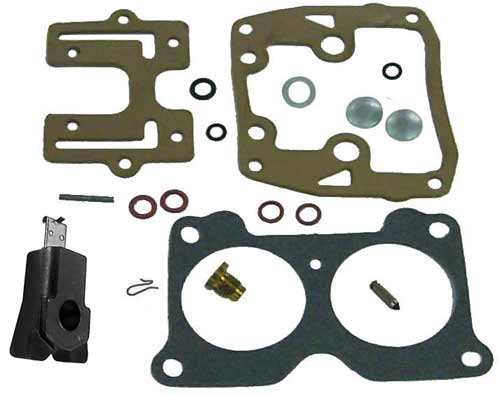

CARB KIT 439076



Click Image for Larger Size
$23.00

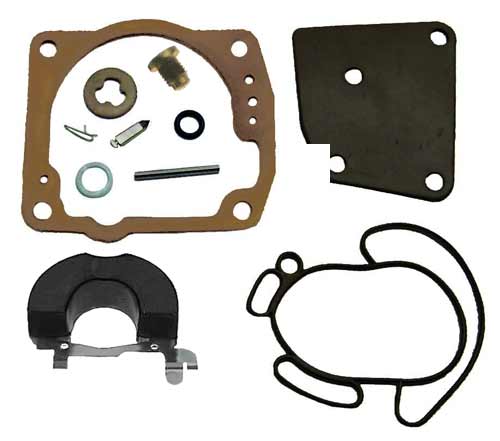

CARB KIT 439078



Click Image for Larger Size
$31.00

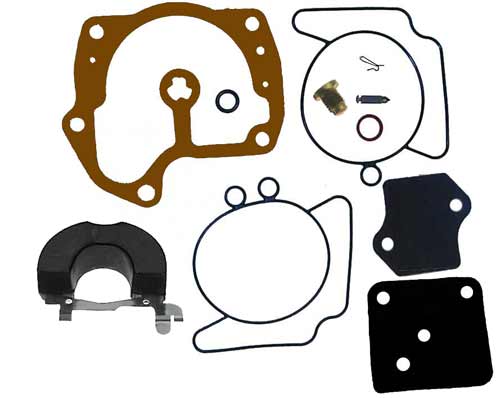

CARB KIT 439079



Click Image for Larger Size
$33.00
DON'T SEE WHAT YOU NEED?
Then use the
QUICK QUOTE FORM
or CALL US
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
