Mercury Mariner cooling

WATERPUMP KITS & IMPELLERS
2-STROKE MOTORS

4-STROKE KITS ARE HERE

Below is a section of the most popular Mercury Outboard water pump impellers & kits.
If yours is not represented please CALL or use our Quick Quote form
and we'll be happy to find the parts needed for your motor.

Concerned about your gearcase or water pump? Try our gearcase tips page.

To install impeller, flip the housing upside down and turn impeller down into housing in direction shown:
impeller orientation
(lubricate inside of housing first with a film of outboard oil or other lubricant)
  then flip housing right side up and slide down driveshft. Rotate the driveshaft CLOCKWISE until the keyway
mates with the impeller so housing slides all the way down and install housing to gearcase.

Impellers are impeller only, no gaskets, unless noted.

MERCURY MARINE WATERPUMP PARTS
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
2.2 HP
2.5, 3 HP
8075603 & UP
A855907 - UP
N/A
(on prop shaft)
95289-2
3.5 HP
3.6 HP
4 HP (MODEL 40)
4.5 HP
6202173 & UP
5404657 & UP
5589202 & UP
* see shaft diameter
note to the right
NO KIT 3054
* (fits .438" SHAFT
DIAMETER
ONLY )
4.5 HP * see shaft diameter
note to the right
3239
(Plate, O-ring, & Impeller Only)

or

3446
(Complete Kit)
3039
* (fits .456"SHAFT
DIAMETER
ONLY )
4 HP (1-CYL)
4.5 HP (1-CYL)
2498136 - 4107219
4107220 - 5595531
3239
(Plate, O-ring, & Impeller Only)
3039
4 HP (1-CYL)
5 HP (1-CYL)
A809601 & UP 16159A03 3098
3.9 (MODEL 39) 1-CYL
9.8 HP (MODEL 110)
ALL
1474328 - 1865778
NO PARTS AVAILABLE
EXCEPT IMPELLER ---»
3012
6 & 8 HP (2 stroke) A197112 & UP 4208 3062
6 HP 2-CYL
7.5 HP
1408611 - 2529894
2529895 - 4131609

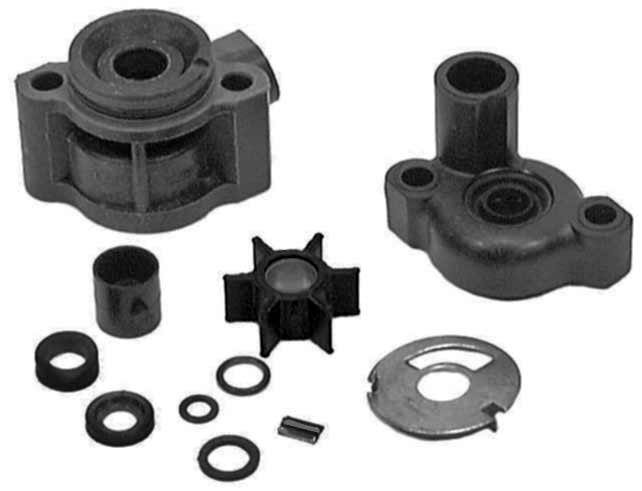

3447
(Complete Kit)
3039
7.5 HP (Model 75) 4131610 - 5206549
( .456" shaft)
3239
(Plate, O-ring,& Impeller Only)

or

3446
(Complete Kit)
3039
7.5 HP 5206550 & UP
( .456" shaft only)
3239
(Plate, O-ring,& Impeller Only)

or

3446
Complete Kit
3039
* (fits .456" SHAFT
DIAMETER
ONLY )
7.5 HP 5206550 & UP
( .438" shaft only)
NO KIT 3054
* (fits .438" SHAFT
DIAMETER
ONLY )
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
8 HP (4 stroke) G760300 & UP 47-803748K02 3062
9.8 HP (MODEL 110) 1865779 - 5206549 3239

(Plate, O-ring, & Impeller Only)
3039
9.8 HP 5206550 & UP * NO KIT 3054
* (fits .438" SHAFT
DIAMETER ONLY )
9.8 HP 5206550 & UP * 3239

(Plate, O-ring, & Impeller Only)
3039
* (fits .456" SHAFT
DIAMETER
ONLY )
9.9 HP (2 stroke)
9.9 HP (4 stroke)
XR10 SeaPro
15 HP
15 SeaPro
A197112 & UP
G760300 & UP
D038000 & UP
B292414 & UP
G044365 & UP
4208 3062
18 HP 5837437 & UP 3215

(Gaskets, O-rings, & Impeller)
3057
20 HP 2827677 - 6443972 3252
(Gaskets, Seals, & Impeller)

or

3448
Complete Kit
3052
20 HP
25, 25XD, 25 SeaPro
2-stroke only
25 HP (3-CYL)
2-stroke only
6443973 & UP
5705532 & UP


E268781 & UP
3215
(Gaskets, O-rings, & Impeller)

or

99157T2
Complete Kit
3057
25 HP 4-stroke EFI 0R106999 & UP 853792A07 16154-1
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
30 JET C159200 - G589999 3207

(Gaskets, O-rings, & Impeller)
3007
30 JET

30 (2-CYL except
      430cc Lightning)
G590000 & UP

G053314 & UP
NO KIT
3219

Impeller with gaskets only
3057
30 (2-CYL
      430cc Lightning)
G575500 & UP NO KIT 3098
35 HP 157114 & UP 3507

(Impeller, Gaskets, Seals,
Upper Housing )
3007
40 HP (2-CYL, Model 402)
2874704 - 4860102 3507

(Impeller, Gaskets, Seals,
Upper Housing )
3007
40 HP (2-CYL)

40 HP (4-CYL)
4860103 - G053313
C159200 & UP
3324
Complete Kit

or

3507
Same Kit Minus Base
3007
40 HP (2-CYL)
40 HP (3-CYL)


40 HP (4 stroke)
 Standard gearcase
3-cyl  1.83:1
G053314 & UP
G531301 & UP
Standard models
G231123 - G760299
3219

Impeller with gaskets only
3057
40 HP (4 stroke)
Standard gearcase
4-cyl  2.1:1
G760300 - T408999 3219

Impeller with gaskets only
3056
40 HP (4 stroke)
 BIGFOOT
4-cyl  2.31:1
G760300 - T408999 3570 3056
40 HP (4-CYL  4 stroke
    1.83:1  RATIO)

40 HP (4 stroke EFI
    1.83:1  RATIO)
T228405 & UP



T409000 & UP
NO KIT 8900
40 HP (4-CYL  4 stroke
    2.31:1 RATIO)
40 HP (4 stroke EFI
    2.31:1  RATIO)
T178500 - T589999


T409000 & UP
3214

Impeller with gaskets only
3056
40 4-Stroke Carb
Standard gearcase 1.83:1
40 4-Stroke Carb
Standard gearcase 2.1:1
G231123 - G760299


G760300 - T408999
3219

Impeller with gaskets only
3057
40 4-Stroke Carb
Standard gearcase 1.83:1
T228405 & UP 3529 8900

45 (2 STROKE CARB) 1279685 & UP 3324
(FROM  S# 5531630  ONLY)

or

Same Kit Minus Base
3507
3007
45 JET (3-CYL) D000750 & UP NO KIT 8900
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
45 (4 Stroke Std)
50 (4 Stroke Std)
G231123 & UP NO KIT 3057
45 (4 Stroke BigFoot)
50 (4 Stroke BigFoot)
50 (2 Stroke 3-CYL)
G231123 & UP
G231123 & UP
D000750 - G589999
3214
Impeller with gaskets only
3056
50 (2-CYL) 1421113 - 4962055 3323
Complete Kit
(FROM S# 4357640 ONLY)

or

Same Kit Minus Base
3507
3007
50 (4 Stroke 1.83:1 ratio)

• Carb T178500 & UP
• EFI T409000 & UP
3214
Impeller with gaskets only
8900
50 (4 Stroke 2.31:1 ratio)

• Carb T178500 & UP
• EFI T409000 & UP
3214
Impeller with gaskets only
3056
50 (4-CYL) Thru 2514919 Kit Minus Base
3507
3007
65 (3-CYL)
50 (4-CYL)
3293184 - 4382056
2514919 - 4357639
3322

or

Same Kit Minus Base
3507
3007
50 (4-CYL)


70 (3-cyl)
4357640 - 5531629


4571652- 4977156
3323

or
Same Kit Minus Base
3507
3007
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
50 (4-CYL)
50 (3-CYL)
60
65 (3-CYL)
70 (3-CYL)
5531630 & UP
6428681 - D000749
6428681 - D000749
4382057 & UP
4977157-B110053
3324
Complete Kit

or

Same Kit Minus Base
3507
3007
(IMPELLER ONLY)
or

3207
(
GSKTS, O-RINGS,
& IMPELLER)
65 (4-CYL)
1542745 - 3293183
3217 18-3017
60 (3-CYL) D000750-UP
EXCEPT BELOW
3529 8900
60   SeaPro
        Marathon
        BigFoot

60   BigFoot 4 Stroke
70
75 (3-CYL)
80 (3-CYL)
80 JET
90 (3-CYL)
100 (4-CYL)
115 (3-CYL) DFI
115 (4-CYL) ALL
125  (4-CYL)
D000750 & UP



0T178500 & UP
B110054 & UP
ALL
A996142 & UP
0D283222 & UP
0A996142 & UP
ALL
ALL
ALL
0D283222 & UP
3214

Impeller with gaskets only
3056
80 (4-CYL)
115 (6-CYL)
1542745 - 3293183
UP TO 4694236
3217 18-3017
85 (4-CYL)
4590511 & BELOW
3517

with Upper Housing ONLY
18-3017
75 (4-CYL)
80 (4-CYL)
85 (4-CYL)
90 (6-CYL)
115  (6-CYL)
6432901 & UP
4831999 - 6432900
4590512 & UP
4845301 & UP
4694237 & UP
3314
with Upper &
Lower Housings

or

3517
with Upper Housing ONLY
18-3017
125  (6-CYL)
135 (6-CYL)
140 (6-CYL)
MODEL 1400

150 (6-CYL)
2314956 - 3253111
2839369 - 3293233
3293234 -4865677
3502806 - 4121434
3217 18-3017
140 (6-CYL)
150 (6-CYL)
4865678- UP
4121435 - 4868647
3314
with Upper &
Lower Housings

or

3517
with Upper Housing ONLY
18-3017
75 & 90 (3-CYL & 4 Stroke) ALL 3570 8900
135 (V6)
150 (V6)
175 (V6)
200 (V6)
225 (V6)
ALL
A904645 & BELOW
6618750 & BELOW
6618750 & BELOW
ALL
3316

with Upper & Lower Housings
18-3017
150 (V6 2.5L)
175 (V6 2.5L)
200 (V6 2.5L) )
220 (V6 2.5L)
XR4 Magnum II
(V6 2.5L)
A904646 & UP
6618751 & UP
6625221 & UP
ALL
ALL
3319

with Upper & Lower
PLASTIC PUMP HOUSING
18-3017
HP SERIAL# BLOCK WATERPUMP KIT
(incl. housing except as noted)
IMPELLER
V6 3.0L ALL with
STAINLESS STEEL
PUMP HOUSING
IMPORTANT
Please check this first
or email us with
SERIAL NUMBER
of motor if you don't know the motor size
3214
Impeller with gaskets only

DOES NOT INCLUDE HOUSING
3056
V6 3.4L ALL NO LONGER AVAILABLE, INDIVIDUAL PARTS ONLY
CONTACT US
IF YOUR MOTOR WAS NOT LISTED HERE, OR YOU ARE UNSURE OF THE APPLICATION,
PLEASE
CONTACT US
Mercury has gone nuts with late model 3.0L V6 motors and there are several possible gearcase designs
QUICK SECURE ORDER FORM
You may use this secure form in lieu of the shopping cart to order directly.





WATER PUMP KIT & IMPELLER PRICING
PART # DESCRIPTION PRICE ORDER NOW
95289-2 IMPELLER47-95289, 47-95289   2,95289 $29.50
3012 IMPELLER47-22748, 18-3012 $15.25
3054 IMPELLER
FITS .438" SHAFT DIAMETER ONLY!!47-89980, 18-3054
$14.75
3239 IMPELLER/GSKT KIT 18-3239, 47-89981 $16.50
3039 IMPELLER
FITS .456" SHAFT DIAMETER ONLY!! 47-89981, 18-3039
$11.75
3098 IMPELLER47-16154, 18-3098 $17.00
3062 IMPELLER 47-42038, 18-3062 $18.75
16154-1 IMPELLER
16154  1OEM only
4-stroke
$23.00
3214 IMPELLER/GASKET KIT
47-43026Q, 47-43026T, 18-3214

(Click image for Larger)
$35.75
3215 IMPELLER/GASKET KIT
47-85089Q, 18-3215

(Click image for Larger)
$28.00
3217 IMPELLER/GASKET KIT
46-96148A, 18-3217

(Click image for Larger)
$39.75

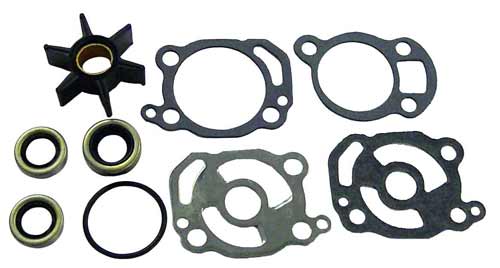

3252 WATER PUMP KIT
47-89982T, 18-3252

(Click image for Larger)
$29.75
3052 IMPELLER
47-89982, 18-3052

(Click image for Larger)
$16.50
3057 IMPELLER
47-85089, 18-3057

(Click image for Larger)
$19.00
3207 IMPELLER/GASKET KIT
47-89983Q, 18-3207

(Click image for Larger)
$37.00
3007 IMPELLER
47-89983T, 18-3007

(Click image for Larger)
$15.00
8900 IMPELLER
47-19453T, 18-8900

(Click image for Larger)
$29.50
3056 IMPELLER
47-43026T 2, 18-3056
(Click for Larger image)
$19.50
18-3017 IMPELLER
47-89984T, 18-3017

(Click image for Larger)
$18.00
803748K02 IMPELLER
803748K02

(Click image for Larger)
$63.75
3314 WATERPUMP KIT
      18-3314, 96148A8

(Click for Larger image)
$58.00
3316 WATERPUMP KIT
      18-3316
(Click for Larger image)
$51.50

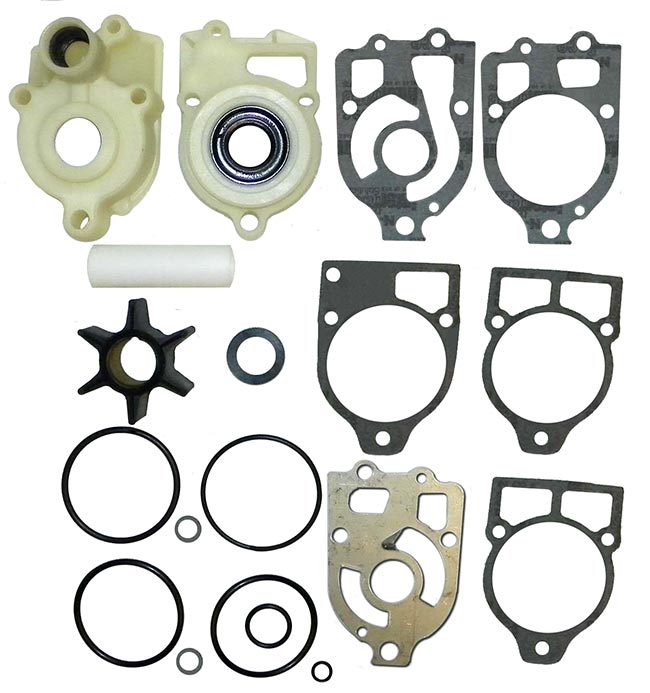

3319 WATERPUMP KIT
       18-3319
(Click for Larger image)
$42.00
3322 WATERPUMP KIT
       46-77516A, 18-3322
(Click for Larger image)
$88.50
3323 WATERPUMP KIT
       46-73640A, 18-3323
(Click for Larger image)
$86.75
3324 WATERPUMP KIT
    46-77177A, 18-3324
(Click for Larger image)
$70.00
3406 WATERPUMP KIT
             46-70941A, 18-3446

(Click for Larger image)
$81.00
3446 WATERPUMP KIT
             46-70941A, 18-3446

(Click for Larger image)
$68.50
3447 WATERPUMP KIT
               46-46893A, 18-3447

(Click for Larger image)
$78.50
3448 WATERPUMP KIT
46-48744A, 18-3448
(Click for Larger image)
$106.00
3507 WATERPUMP KIT
46-60366Q, 18-3507
(Click for Larger image)
$45.00
3517 WATERPUMP KIT
46-60367A, 18-3517
(Click for Larger image)
$39.50
3529 WATERPUMP KIT
812966A11
(Click for Larger image)
141.50
3570 WATERPUMP KIT
46-43024A
(Click for Larger image)
$65.00
3219 WATERPUMP KIT
821354A
(Click for Larger image)
$45.50
4208 WATERPUMP KIT
46-42089A
(Click for Larger image)
$86.75
99157T2 WATERPUMP KIT
46-99157T
(Click for Larger image)
$75.00
16159A03 WATERPUMP KIT
16159A03
$39.00
853792A07 WATERPUMP KIT
853792A074-stroke
OEM only
$40.00
DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.

DISCLAIMER

The information provided on these pages is correct to the best of my knowledge, however the MasterTech makes no warranty, express or implied, regarding the use of, results of, or liability created from, application of this data. This information is disseminated in good faith, however MasterTech assumes NO LIABILITY whatsoever in regard to this service. The information, software, products, and services published on this web site may include inaccuracies or typographical errors. Changes are periodically added to the information herein. Mastertech may make improvements to this site at any time. Parts ordered from this website may or may not be in dealer stock at the time of order. Thank you for reading.
