NEW & REBUILT GEARCASES

3 & 4 Cylinder

NEED A GEARCASE V6 2.0L - 2.5L MERC? FIND IT HERE
NEED A GEARCASE V6 3.0L MERC? FIND IT HERE

Concerned about your gearcase or water pump? Try our gearcase tips page.

NOTE!! You MUST PROVIDE THE SERIAL NUMBER when ordering. I cannot send you the correct parts otherwise!
BE SURE to specify shaft length (measure from top of gearcase to top of driveshaft)

Please take the time to enter the serial number of your motor in the shopping cart!
Please also supply the foLlowing information. Thanks!

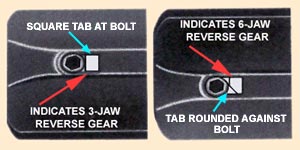

HOW TO TELL THE NUMBER OF REVERSE GEAR JAWS:
EXAMINE TAB AGAINST TRIM FIN SCREW

Driveshaft length is measured from the gearcase top to the top of the driveshaft. This length will be 2" shorter than the one you order,
e.g. your driveshaft measures 23" so the lower unit you need is listed as 25".

NEW and Rebuilt units carry a 1 (one) year warranty. This is a supplier warranty. Most units have core value (included in price).
Return shipping for cores is prepaid, if you have a repairable unit. MasterTech will remit the core credit after evaluation by the rebuilder.

ALL SHIPPING CHARGES ARE INCLUDED (Continental US Only)
PLEASE NOTE: OVERSEAS SHIPMENTS (INCLUDING HAWAII, ALASKA, & U.S. TERRITORIES) REQUIRE EXTRA SHIPPING CHARGES.
CORE CHARGES FOR THESE GEARCASES ARE NOT REFUNDABLE AND NO CORE IS REQUIRED. THE PRICE REMAINS THE SAME.

Rebuilt and new gearcases are subject to availability.

MERCURY/U. S. MARINER GEARCASES
CYL	DESCRIPTION	CORE	PRICE	PURCHASE
3	Mercury/Mariner Rebuilt Lower	NO CORE REQUIRED	ME-G3-04-R $1,906
3	Mercury/Mariner Rebuilt Lower	$200	ME-G3-05-R $1,906
3	Mercury/Mariner Rebuilt Lower 70-90 HP 1987-1997 3-Jaw	NO CORE REQUIRED	ME-G3-06-R $1,906
3	Mercury/Mariner NEW Lower 6-Jaw 70-90 HP 1987-1997 ORIGINALLY 3-Jaw NOTE: 3-Jaw units thru 1997 are not available NEW. Updating to this NEW 6-Jaw unit requires an updated shift rod (available from MasterTech thru Mercury)	NO CORE REQUIRED	ME-G3-06-N $2,146
3	Mercury/Mariner Rebuilt Lower 75-90 HP 1998-2006 6-Jaw	$200	ME-G3-07-R $1,906
3	Mercury/Mariner New Lower 75-90 HP 1998-2006 6-Jaw	$200	ME-G3-07-N $2,146
3	Mercury New Lower 75-90 HP OPTIMAX 2004-2006	NO CORE REQUIRED	ME-G3-09-N $2,265
CYL	DESCRIPTION	CORE	PRICE	PURCHASE
4	Mercury New Lower 75-90 HP 2000-2002 4 Stroke EFI SERIAL # 0G960500 - 0T598999	$200	ME-G4-08-N $2,265
4	Mercury REBUILT Lower 75-90 HP 2000-2002 4 Stroke EFI SERIAL # 0G960500 - 0T598999	$200	ME-G4-08-N $2,026
4	Mercury New Lower 75-90 HP 2003 ONLY 4 Stroke EFI SERIAL # 0T599000 - 0T800999	$200	ME-G4-08A-N $2,265
4	MercuryREBUILT Lower 75-90 HP 2003 ONLY 4 Stroke EFI SERIAL # 0T599000 - 0T800999	$200	ME-G4-08A-R $2,026
4	Mercury New Lower 75-90 HP 2004-2006 4 Stroke EFI SERIAL # 0T599000 - 0T800999	$200	ME-G4-09-N $2,265
4	MercuryREBUILT Lower 75-90 HP 2004-2006 4 Stroke EFI SERIAL # 0T599000 - 0T800999	$200	ME-G4-09-R $2,026
4	Mercury/Mariner New Lower 110-115-125 HP 1988-1997 20" Original 3-Jaw replaced by 6-Jaw lower NOTE: 3-Jaw units thru 1997 are not available NEW. Updating to this NEW 6-Jaw unit requires an updated shift rod (available from MasterTech thru Mercury)	NO CORE REQUIRED	ME-G4-02-N $2,146
4	Mercury/Mariner Rebuilt Lower 110-115-125 HP 1988-1997 20" Original 3-Jaw gearcase	NO CORE REQUIRED	ME-G4-02-R $1,906
4	Mercury/Mariner New Lower 110-115-125 HP 1988-1997 25" Original 3-Jaw replaced by 6-Jaw lower NOTE: 3-Jaw units thru 1997 are not available NEW. Updating to this NEW 6-Jaw unit requires an updated shift rod (available from MasterTech thru Mercury)	NO CORE REQUIRED	ME-G4-03-N $2,146
4	Mercury/Mariner Rebuilt Lower 110-115-125 HP 1988-1997 25" Original 3-Jaw gearcase	NO CORE REQUIRED	ME-G4-03-R $1,906
4	Mercury/Mariner New Lower 110-115-125 HP 1998-2003 20" 6-Jaw	$200	ME-G4-04-N $2,146
4	Mercury/Mariner Rebuilt Lower 110-115-125 HP 1998-2003 20" 6-Jaw	$200	ME-G4-04-R $1,906
4	Mercury/Mariner New Lower 110-115-125 HP 1998-2003 25" 6-Jaw	$200	ME-G4-05-N $2,146
4	Mercury/Mariner Rebuilt Lower 110-115-125 HP 1998-2003 25" 6-Jaw	$200	ME-G4-05-R $1,906
CYL	DESCRIPTION	CORE	PRICE	PURCHASE
4	Mercury New Lower 115 HP 2001-2003 4 Stroke Serial # 0T178500 - 0T800999	$200	ME-G4-06-N $2,266
4	Mercury Rebuilt Lower 115 HP 2001-2003 4 Stroke Serial # 0T178500 - 0T800999	$200	ME-G4-06-R $2,026
4	Mercury New Lower 115 HP 2004-2006 4 Stroke Serial # 0T801000 and up	$200	ME-G4-07-N $2,266
4	Mercury Rebuilt Lower 115 HP 2004-2006 4 Stroke Serial # 0T801000 and up	$200	ME-G4-07-R $2,026
4	Mercury New Lower 115 HP 2008-UP 4 Stroke 20"	NO CORE REQUIRED	ME-G4-07A-N $2,266
4	Mercury New Lower 115 HP 2008-UP 4 Stroke 25"	NO CORE REQUIRED	ME-G4-07A-N $2,266
4	Mercury New Lower 115 HP OPTIMAX 2004-2006 20"	$200	ME-G4-13-N $2,266
4	Mercury Rebuilt Lower 115 HP OPTIMAX 2004-2006 20"	$200	ME-G4-13-R $2,146
4	Mercury New Lower 115 HP OPTIMAX 2004-2006 25"	$200	ME-G4-14-N $2,266
4	Mercury Rebuilt Lower 115 HP OPTIMAX 2004-2006 25"	$200	ME-G4-14-R $2,146

DON'T SEE WHAT YOU NEED? JUST ASK. QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order. Prices iinclude shipping by UPS 3 day within the 48 contiguous United States only. Some bulky and extremely heavy items may incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!

Please review our Warranty, Returns & Refunds policies before you place an order.
