GASKET KITS 100 HP & UP

Gaskets for Mercury engines    90 HP and Smaller

Gaskets for Mercury SPORTJETS

MERCURY & U.S.- MADE MARINER
GASKET KIT/HEAD GASKET APPLICATION 100 HP UP
HP MODEL YEAR SERIAL NUMBER
BLOCK		 GASKET
KIT		 HEAD
GASKET		 CRANK
SEAL KIT
75-115 HP
4-STROKE		 ALL 0G960500 - UP 8043 8041 2020
100, 115 L4 1988 UP B209468 UP 005 - 2017
115 1975-88 6 INLINE 3525441- 4855152 437 - 2016-3
115 DFI   3 CYL - 0T801000 - UP

27-879855A04

 - -
115 DFI  2.5L  V6 - 0G960500 - 0T178499

2689-1

 9772 2016-3
125 L4 1994 UP D283222 UP 005 - 2017
140
150		 1978-81 6 INLINE
1974-78 6 INLINE		 3293234-3502805
35402806-4868997		 437 - 2016-3
135 2.0L V6 1986-90 V6 A904646-C239552 667 542-1 2016-3
135 2.0L V6 1991-01 C239553 UP 2689 ¹ 785-1 2016-3
135 2.5L V6  DFI
150 2.5L V6  DFI		 - 0G590000 - 0G960499 2689 ¹ 8525 2016-3
135 2.5L V6  DFI
150 2.5L V6  DFI		 - 0G960500 - UP 2689 ¹ 9772 2016-3
150 1978-82 V6 2L 4868648-6042945 1715 ³ 583 -1 2016-3
150 1983-90 V6 2L 6042946-C329552 667 542-1 2016-3
150 1991-05 C329553 UP 2689 ¹ 785-1 2016-3
150 XR4 1988-91 2.4L B242885-C239552 668 ² 246-1 2016-3
175 1976-84 V6 2L 4301235-6618750 1715 ³ 583-1 2016-3
175 1985-91 2.4L 6618751-C239552 2689 ¹ 246-1 2016-3
175 1992-02 V6 2.5L C329553 UP 2689 ¹ 844-1 2016-3
175 2.5L V6  DFI - 0T178500 - UP 2689 ¹ 9772 2016-3
200
225		 1978-81 2.4L
1987-88 2.4L		 4839034-5363917
5628028-D280812		 1716 ³ 3872 2016-3
200 1982 2.4L 6073192-6203990 1716 ³ 246-1 2016-3
200 1983-1991 2.4L 6203991 UP 669 246-1 2016-3
200, XR6 1992 UP 2.5L 0D082000 UP 2689 ¹ 844-1 2016-3
200 ProMax V6 2.5L - 0D935000-0G610079 2687 844-1 2016-3
200 ProMax V6 2.5L - 0G857000 - UP 2687 844-1 2016-3
200 3.0 DFI/Optimax V6 3L 0G386496-0G589999 4312-1 8573 2018
200 3.0 DFI /Optimax V6 3L 0G590000-0G960499 4312-2 8573 2018
200 3.0 DFI /Optimax V6 3L 0G960500-up 4312-3 8573 2018
220 V6 2.4L 1987-88 0B117316 - UP 2377 246-1 2016-3
 ¹  2689 HAS NO HEAD GASKETS, ORDER 2.0L, 2.4L OR 2.5L AS REQUIRED FOR YOUR ENGINE
  ²  2.4L BLOCKS WITH DOWEL PINS USE 2689 KIT AND 786 HEAD GASKETS
  ³  NO HEAD GASKETS IN KIT, ORDER SEPARATELY.


SPORT JET GASKETS
HP MODEL YEAR SERIAL NUMBER
BLOCK		 GASKET
KIT		 HEAD GASKET CRANK SEALS
UPPER LOWER
90 HP 1993-1995 ALL   (FORCE POWERHEAD)      2874-4 369 2141 2141
95 HP 1996-1997 ALL   (FORCE POWERHEAD)     2874-4 369 2105 2141
120 HP 1995 ALL   (FORCE POWERHEAD)     2875-2 476 2141 2141
120 HP 1996-2000 ALL   (FORCE POWERHEAD)     2875-2 476 2105 2141
175 HP 1997-99 (MERCURY POWERHEAD)
THRU SERIAL # 0E369299 		3364 NONE 230 230
(NEED QTY 2)
175 hp 2000-UP (MERCURY POWERHEAD)
FROM SERIAL # 0E369300		 3365 NONE 230 230
(NEED QTY 2)
200 DFI ALL ALL (MERCURY POWERHEAD)   3370 NONE 230 230
(NEED QTY 2)
210 CARB ALL ALL (MERCURY POWERHEAD)   3375 NONE 230 230
(NEED QTY 2)
240 EFI 2000-2001 ALL (MERCURY POWERHEAD)
THRU SERIAL # 0E406399    		 804986A1 NONE 230 230
(NEED QTY 2)
240 EFI 2002-UP ALL (MERCURY POWERHEAD)
FROM SERIAL # 0E406400  		 3380 NONE 230 230
(NEED QTY 2)
250 EFI 2002-UP ALL (MERCURY POWERHEAD) 3385 NONE 8364 8365
(NEED QTY 2)
NOTE: ALL MERCURY V6 MOTORS REQUIRE ONE UPPER CRANK SEAL AND 2 LOWER SEALS



GASKET PRICING
TYPE PART # PRICE SELECT

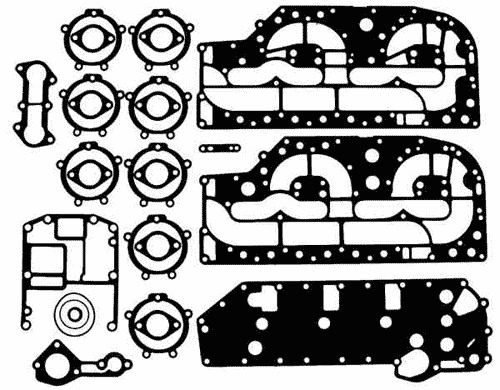

GASKET SET 005
PHOTO 		 $109.00
GASKET SET 437
PHOTO 		 $67.00

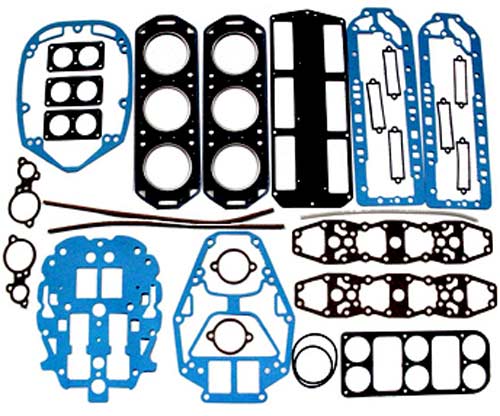

GASKET SET 667
PHOTO 		 $109.00

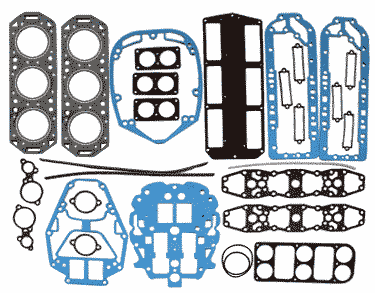

GASKET SET 668
PHOTO 		 $109.00
GASKET SET 669
PHOTO 		 $99.00

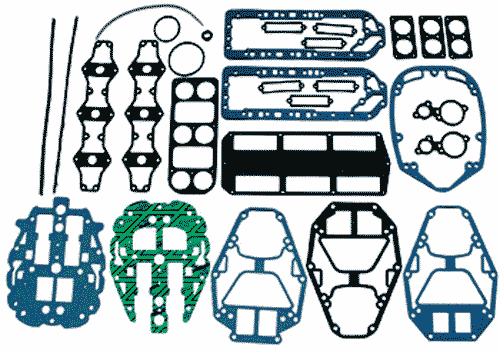

GASKET SET
NO HEAD GASKETS ,
ORDER SEPARATELY 		1715
PHOTO 		 $121.00
GASKET SET
NO HEAD GASKETS ,
ORDER SEPARATELY 		1716
PHOTO 		 $115.00

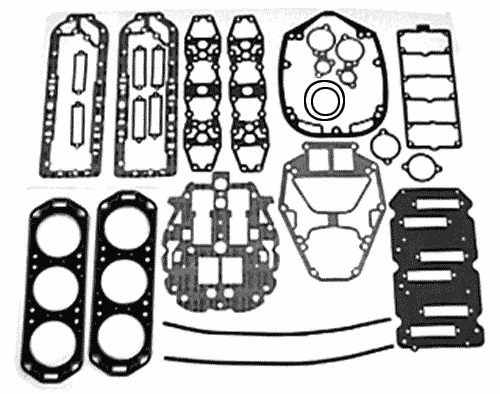

GASKET SET 2377
PHOTO 		 $84.00

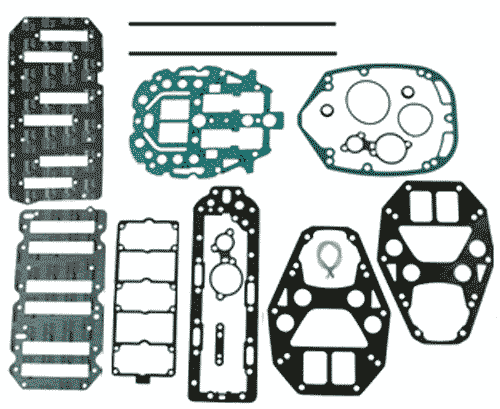

GASKET SET
NO HEAD GASKETS ,
ORDER SEPARATELY 		2687
PHOTO 		 $99.00
GASKET SET
NO HEAD GASKETS 		2689
PHOTO 		 $94.00

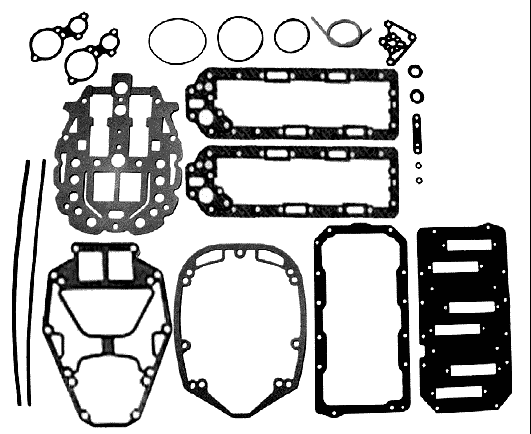

GASKET SET
NO HEAD GASKETS 		2689-1
PHOTO 		 $125.00

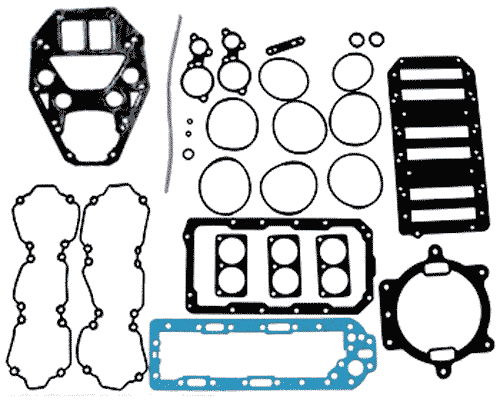

GASKET SET 3380
PHOTO 		 $210.00

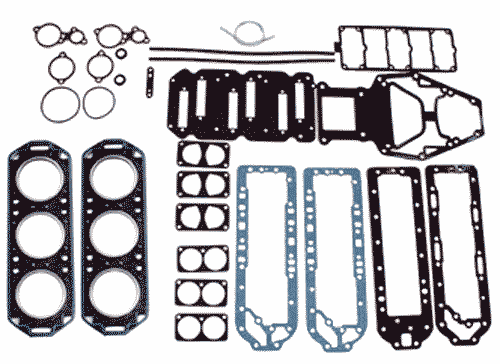

GASKET SET 3364
PHOTO 		 $233.00
GASKET SET 3370
PHOTO 		 $140.00

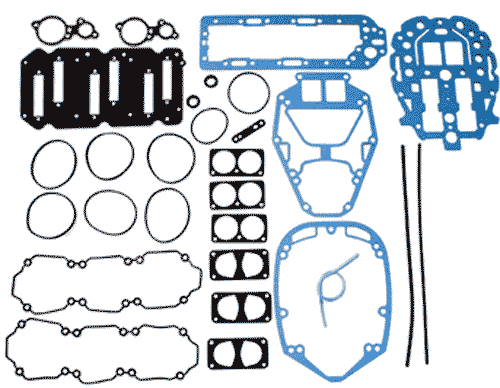

GASKET SET 3375
PHOTO 		 $233.00

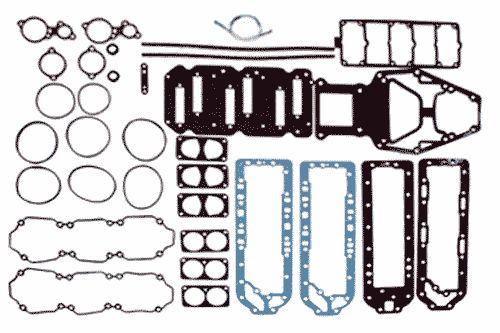

GASKET SET 3365
PHOTO 		 $233.00

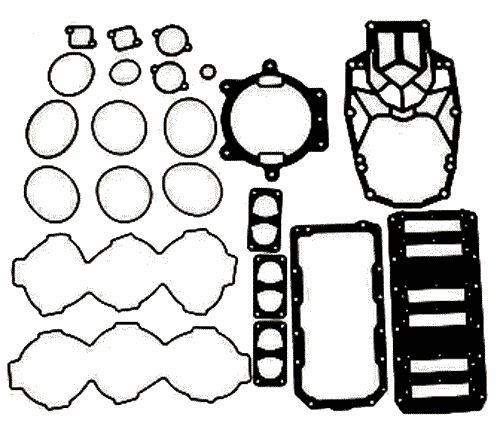

GASKET SET 3385
PHOTO 		 $140.00

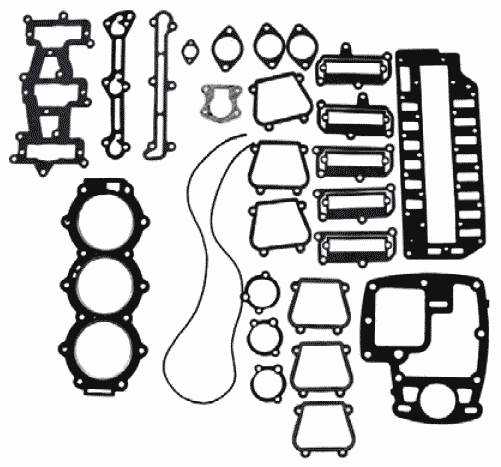

GASKET SET 2874-4
PHOTO 		 $95.00

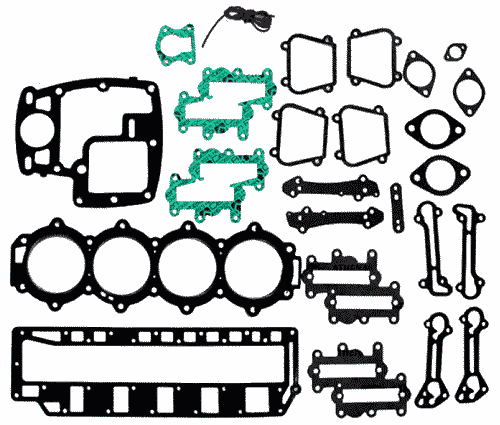

GASKET SET 2875-2
PHOTO 		 $153.00

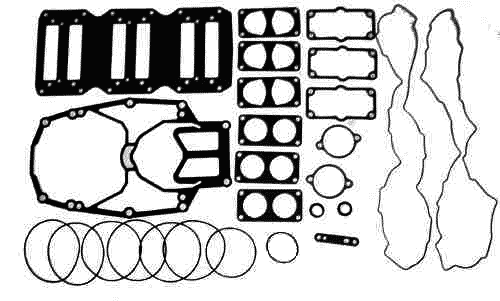

GASKET SET 4312
PHOTO 		 $109.00

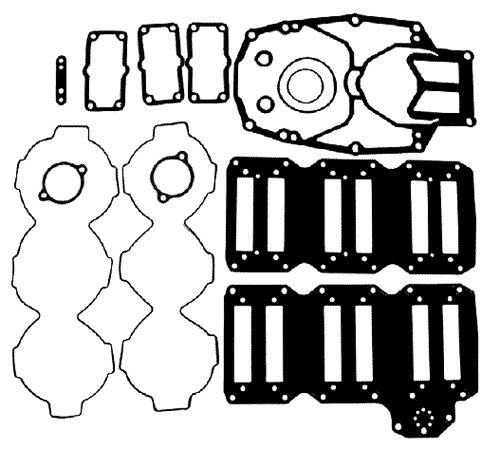

GASKET SET 4312-1
PHOTO 		 $150.00
GASKET SET 4312-2
PHOTO 		 $109.00

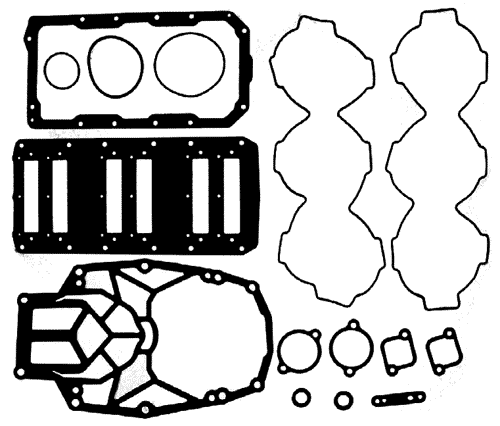

GASKET SET 4312-3
PHOTO 		 $99.00
GASKET SET 804986A1
(PHOTO  NOT AVAILABLE) 		$281.00
GASKET SET 879855A04
PHOTO 		 $75.00
CRANK SEAL 230
PHOTO 		 $9.00
CRANK SEAL 2105
PHOTO 		 $12.00
CRANK SEAL 2141
PHOTO 		 $11.00
CRANK SEAL 8364
PHOTO 		 $17.00
CRANK SEAL 8365
PHOTO 		 $13.00
SEAL SET OF 3 2016-3
PHOTO 		 $24.00
SEAL SET OF 2 2017
PHOTO 		 $22.00
SEAL SET OF 3 2018
PHOTO 		 $40.00
2 SEAL KIT 2020
PHOTO 		 $15.00
GASKET SET 8043
PHOTO 		 $267.00
HEAD O-RING 9772
PHOTO 		 $6.00
HEAD GASKET 8041
PHOTO 		 $73.00
HEAD GASKET 8525
PHOTO 		 $336.00
HEAD GASKET 369
PHOTO 		 $29.00
HEAD GASKET 476
PHOTO 		 $29.00
V6 HEAD GASKET SHOPPING:
DEFAULT ORDER IS 2 GASKETS.
IF YOU DESIRE A DIFFERENT QUANTITY CHANGE SAME IN THE SHOPPING CART
HEAD GASKET
2 LITRE EARLY		 583-1
PHOTO 		 $23.00
HEAD GASKET
2 LITRE LATE 1984-90		 542-1
PHOTO 		 $20.00
HEAD GASKET
2 LITRE WITH DOWEL PINS 		785-1
PHOTO 		 $25.00
HEAD GASKET
2.4 LITRE WITH DOWEL PINS 		3871
PHOTO 		 $24.00
HEAD GASKET
2.4 LITRE EARLY, PRE '83 		3872
PHOTO 		 $35.00
HEAD GASKET
2.4 LITRE LATE 1984-91 		246-1
PHOTO 		 $20.00
HEAD GASKET
2.5 LITRE 		844-1
PHOTO 		 $25.00
HEAD GASKET
2.5 LITRE HI COMPRESSION
RACING MOTOR 		844R1
PHOTO 		 $35.00
HEAD GASKET "O-RING"
3.0 LITRE V-6 		8573
PHOTO 		 $8.00
DON'T SEE WHAT YOU NEED? JUST ASK.
