FUEL PUMP KITS
THRU 100 HP

(Mercury & U.S. Mariner Only)

115 HP AND LARGER ARE HERE

MOST MODELS NOT LISTED HAVE A CARB-MOUNTED FUEL PUMP.
THE CARB KIT USUALLY INCLUDES THE GASKETS/DIAPHRAGMS FOR THE FUEL PUMP,
ALTHOUGH SOME DO NOT.  PLEASE CHECK THIS ON THE CARB KITS PAGES.
YOU MAY ALSO CALL US IF UNSURE.

PLEASE COMPARE YOUR PUMP CONTENTS WITH THE KIT PICTURE BEFORE ORDERING

MERCURY/U.S. MARINER FUEL PUMP APPLICATIONS
STAND-ALONE FUEL PUMPS ONLY
For Carb-mounted pumps see Carb Kit listings

HP YEARS or TYPE SERIAL NUMBER BLOCK FUEL PUMP
KIT
4 & 4.5 HP 1-CYL 5270783 & BELOW
(ONLY pump with 90° fittings;
some late pumps with straight fittings
are sealed 1-piece, no kit made)
53245A1
6 HP (Model 60) -- 2387383 & BELOW 31503A1
7.5 HP (Model 75) -- 3801457 & BELOW 53245A1
9.8 HP (Model 110) -- 2798056 & BELOW 31503A1
9.8 HP (Model 110) -- 2798057 & UP 53245A1
10 HP (Model 100) All -- 109
15 HP (Model 150) All -- 109
20 HP -- 3537530 & BELOW 31503A1
30 & 40 HP 3-CYL - 0G055314-UP 1812
30 HP 4-CYL   ALL 109
35 HP 1984-1989 ALL 112
40 HP 2-CYL 1970-1983 ALL THRU SERIAL # 0G055313 110
40 HP 2 CYL
40 & 50 HP 3 CYL
40 & 45 HP 4 CYL
1984-UP
(MANUAL FUEL PUMP)
ALL FROM SERIAL # 0G055314
ALL FROM SERIAL # 0G590000
ALL
1812
45 4-CYL
65 4-CYL
THRU 1983
THRU 1971
ALL 109
40, 45, 65, 80 JET - ALL 1812
50 HP 4-CYL Thru 1975 Thru SERIAL # 4357639
109
60 HP 3-CYL EARLY THRU SERIAL # 0B122929 112
60 HP 3-CYL LATE FROM SERIAL # 0B122930 1812
65 HP 3-CYL 1972-75 ALL 110
70 & 85 HP 6-CYL - ALL 109
70 HP 3-CYL - THRU SERIAL # 6428680 112
70 HP 3-CYL
75 HP 3-CYL



80 HP 3-CYL
- 0A996142-UP

THRU SERIAL # 0D283221
WITH 90° CHECK VALVE
ON CARB
ALL
2721
75 HP 3-CYL





ALL WITH INLINE
CHECK VALVE
2721
75 HP 4-CYL MOST with SQUARE FUEL PUMP 2721
80 HP 4-CYL
100 HP 6-CYL
DUAL FUEL PUMPS ALL 109
(DOES 1 PUMP)
80 & 85 HP 4-CYL SINGLE FUEL PUMP ALL 111
90 HP 6-CYL
95 HP 6-CYL
- THRU SERIAL # 1869775
ALL
109
90 HP 6-CYL LATE MODELS 4845301 - UP
TRIANGULAR PUMP
115
90 HP 6-CYL LATE MODELS THRU SERIAL # 6436122
SQUARE PUMP
2721
90 HP 3-CYL NO CHECK VALVE
ON OIL INPUT HOSE
6436123 - UP
SQUARE PUMP
2721
90 HP 3-CYL WITH CHECK VALVE
ON OIL INPUT HOSE
6436123 - UP
SQUARE PUMP
1812
100 HP 4-CYL - THRU SERIAL # 0D283221
WITH 90° CHECK VALVE
ON CARB
2721
100 HP 4-CYL - ALL WITH INLINE
CHECK VALVE
2721
    AGAIN, IF YOU ARE UNSURE & THE PICTURES DON'T MATCH YOUR PUMP, PLEASE CONTACT US
QUICK ORDER FORM



FUEL PUMP KIT PRICING
USAGE PART # PRICE SELECT
FUEL PUMP KIT
109
$6.50
FUEL PUMP KIT
110
$6.00
FUEL PUMP KIT
111
$6.00
FUEL PUMP KIT
112
$6.00
FUEL PUMP KIT
115
$10.00
FUEL PUMP KIT

NOTE:
Modification of Holes
in Fuel Pump Body
Necessary in Older Pumps.
SEE HERE and HERE
(This needs to be done
with factory kits also)
1812

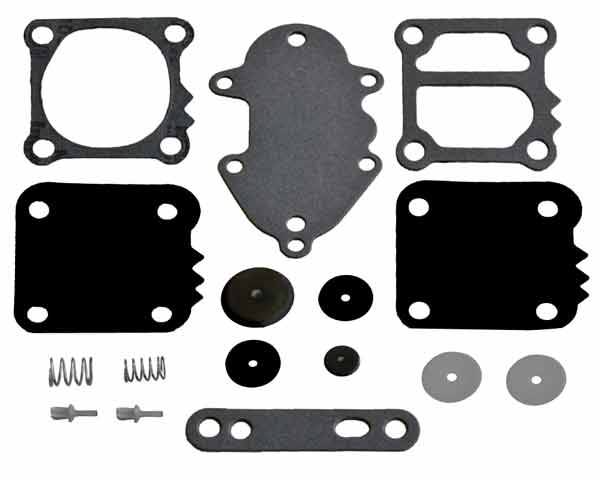

Click Image for Larger


$13.50
FUEL PUMP KIT
7815
$8.00
FUEL PUMP KIT

NOTE:
Modification of Holes
in Fuel Pump Body
Necessary in Older Pumps.
SEE HERE and HERE
(This needs to be done
with factory kits also)
2721
$13.00
FUEL PUMP KIT 18-7815 $8.00
FUEL PUMP KIT 31503A1 $5.50
FUEL PUMP KIT 53245A1 $5.25
DON'T SEE WHAT YOU NEED? JUST ASK.
