REPLACEMENT POWER TRIM MOTORS

MASTERTECH FEATURES API MARINE REPLACEMENT UNITS, THE FINEST IN THE BUSINESS.

FIND THE ITEM YOU NEED IN THE TABLE BELOW. I HAVE PROVIDED PICTURES OF COMPLETE TRIM UNITS TO AID
YOU IN DETERMINING WHICH MOTOR IS CORRECT FOR YOUR OUTBOARD.

FORCE TRIM MOTORS
, RELAYS, and FORCE NEW VALVE BODIES



Hydraulic Line Connections for PT112 & PT116 series
(Prestolite systems)

Click drawings for full-size

Models with TILT ONLY
Models with both TILT and TRIM


FORCE TRIM MOTORS
DESCRIPTION / PHOTO NOTES PRICE ADD TO CART
ME-PT-03-R
Remanufactured
Complete Unit

Mid to Late 1990's
90 & 120 HP Mercury
Style Trim Systems
90 & 120 HP
late models
$795
FITS SMALL FORCE MODELS AS WELLPT498NM
Fits Late Model 25-50 HP
Force Outboards
Replaces Force/Mercury #827675A1




2- wire Connection

PT498NM $166.00
FITS SMALL FORCE MODELS AS WELLPT112N MOTOR ONLY
Fits Many Early Force & Chrysler thru 1985-86
Replaces Force/Chrysler #449541-1, 455541, F17563, F17556, FK654541
Prestolite # ESZ4014, ESZ4012, ESZ4014, ETX4001
O-ring included

3- wire Connection

PT112N

3 WIRE CONNECTION
MOTOR & RESERVOIR ONLY!! NO VALVE BODY!!
NOT AVAILABLE
FROM MERCURY


$230.00
FITS SMALL FORCE MODELS AS WELLPT112N-NP-4  MOTOR AND VALVE BODY
Fits Many Force/Chrysler
Replaces Force/Chrysler #449541-1, 455541, F17563, F17556, FK654541
Prestolite # ESZ4014, ESZ4012, ESZ4014, ETX4001

O-ring included

 3- wire Connection

PLEASE SPECIFY NUMBER OF HYDRAULIC LINES
INTO THE PUMP ON THE BOTTOM WHEN ORDERING
PT112N-NP-4

3 WIRE CONNECTION
COMPLETE ASSEMBLY INCLUDING HYDRAULIC PUMP AND VALVE BODY.
NOT AVAILABLE
FROM MERCURY


$399.00
PT116N-3 MOTOR/RESERVOIR ONLY
FORCE 85-150 1986-91Fits 85-150 HP 1986-91
Replaces Force #820545,
F694541-1, F694541-2

O-ring Included








 2- wire Connection

PT116N-3

LATER MODEL FORCE WITH PRESTOLITE TYPE ROUND MOTOR/RESERVOIR
2 WIRE CONNECTION
MOTOR & RESERVOIR ONLY! NO VALVE BODY!!
NOT AVAILABLE
FROM MERCURY


$212.00
FORCE 85-150 1986-91PT116N-NP-4 MOTOR AND VALVE BODY
Fits 85-150 HP 1986-91,
Also Some Late Model Chrysler
Replaces Force #820545,
F694541-1, F694541-2



O-ring Included


 2- wire Connection

PT116N-NP-4

CHRYSLER & FORCE WITH PRESTOLITE TYPE ROUND MOTOR/RESERVOIR
2 WIRE CONNECTION
COMPLETE MOTOR AND HYDRAULIC ASSEMBLY!
NOT AVAILABLE
FROM MERCURY


$418.00
If Your Trim Motor Is a 2-wire unit and Looks Like Any of These,
Use
PT 497NK;
Otherwise use
PT 495NK-2
Which Is An Upgrade Kit To Use The Newer Style 2-wire Motor and
Relay System Instead of Solenoids (Relays and Harness Included).
FORCE SINGLE RAM 3 WIRE MOTOR.PT495NK-3
Fits Force Single Ram Trim Systems
Replaces Force #824051


PICTURE IS OF NEW CONFIGURATION WITH ROUND
2-WIRE MOTOR AND RELAY/HARNESS KIT TO REPLACE SOLENOIDS.
PT495NK-3
REPLACES OLDER MERC/MARINER/FORCE
SINGLE RAM, 3 WIRE SQUARE OR ROUND MOTOR
WITH HEX BOLTS.
CLICK TO ENLARGE
CLICK TO ENLARGE
NOT AVAILABLE
FROM MERCURY


$286.00
6276
Fits Force 2-Ram Trim Systems
70 & 90 HP

FORCE SINGLE RAM 3 WIRE MOTOR. Replaces #811674, 811699, 813447, 809885A1, A2
Includes Coupler Kit, O-ring, S.S. Bolts


PICTURE IS OF NEW CONFIGURATION

2- wire Connection
6276
LATE MODEL FORCE WITH 2-WIRE
2 1/4"ROUND MOTORS WITH TEARDROP SHAPED HOUSING..
ALSO FITS 2-RAM 2-WIRE EXTERNAL MOUNT WITH 3 3/4" ROUND MOTOR. THERE ARE ADAPTER SHAFTS WITH THIS TO FIT SEVERAL MODELS.
MOTOR & RESERVOIR ONLY!!
FOR LATE MODEL FORCE 70 & 90 HP
$348.00
PT497NK
Fits Force 2-Ram Trim Systems
EXCEPT 70 & 90 HP
FOR 70 & 90 HP
USE # 6276
ABOVE


FORCE SINGLE RAM 3 WIRE MOTOR. Replaces #811674, 811699, 813447, 809885A1, A2
Includes Coupler Kit, O-ring, S.S. Bolts


PICTURE IS OF NEW CONFIGURATION

with Bullet Connectors



2- wire Connection
PT497NK
LATE MODEL FORCE WITH 2-WIRE
2 1/4"ROUND MOTORS WITH TEARDROP SHAPED HOUSING..
ALSO FITS 2-RAM 2-WIRE EXTERNAL MOUNT WITH 3 3/4" ROUND MOTOR. THERE ARE ADAPTER SHAFTS WITH THIS TO FIT SEVERAL MODELS.

MOTOR & RESERVOIR ONLY!!

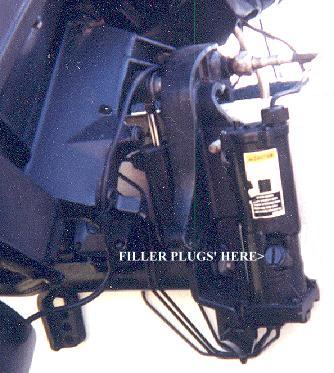

UNSURE?
USED ON THIS TRIM
$228.00

PLEASE NOTE THE FOLLOWING INFORMATION!! THERE HAS BEEN A LOT OF CONFUSION REGARDING THE CONFIGURATION OF THE TRIM MOTORS AND VALVE BODIES

THE MOTORS COME WITHOUT A HYDRAULIC VALVE BODY. IF YOU HAVE A HYDRAULIC VALVE BODY PROBLEM,  YOU MAY REPLACE IT WITH ONE OF THESE NEW VALVE BODIES TO REPLACE THE 112 AND 116 PRESTOLITE UNITS.
NO CORE IS REQUIRED TO PURCHASE THESE HYDRAULIC UNITS.

VB112N-4
Fits Chrysler/Force; O-ring Included.
4-line Connection Replaces Both Types
in Right-hand Picture Below

VB112N-4
NEW HYDRAULIC VALVE BODY!
NO CORE REQUIRED!

$217.00

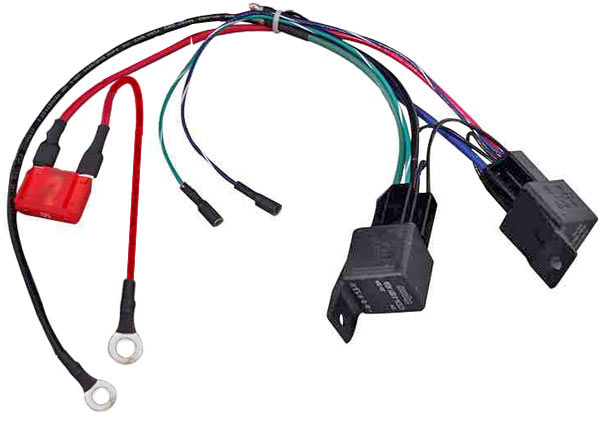

Conversion Harness

WH476, WH 476 Converts original 3-wire units to newer 2-wire system





CLICK IMAGE FOR FULL-SIZE
ME-R100 $50.00
R040 Trim Relay
Replaces Chrysler/Force  F660917, 87-803632T
Also Standard Replacement for Above Harness

R040 $21.00
882751A1 RELAY
USED ON LATE MODEL FORCE 2-CYLINDER
with MERCURY TILT/TRIM 1995 - UP
and SOME 1994
Harness has bullet connectors, no circuit breaker
USE IN PLACE OF # 821509
882751A1 $16.00
8M0052578 RELAY
USED ON LATE MODEL FORCE 2-CYLINDER
with MERCURY TILT/TRIM THRU 1994
with flat terminals and circuit breaker
8M0052578
old # 819509T
$16.00
5819 SOLENOID
USED ON MID-90'S FORCE
starter number 3000nwith MERCURY TILT/TRIM
REPLACES 89-818997A1, A2, T1




CLICK Image for Larger
5819 $33.50
DON'T SEE WHAT YOU NEED? JUST ASK.
QUICK QUOTE FORM
QUICK SECURE ORDER FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!




Please review our Warranty, Returns & Refunds policies before you place an order.
