Force Outboards

COOLING SYSTEM PARTS

Concerned about your cooling system? Try our cooling system tips page.


To install impeller, flip the housing upside down and turn impeller down into housing in direction shown:
Impeller orientation
(lubricate inside of housing first with a film of outboard oil or other lubricant)
  then flip housing right side up and slide down driveshft. Rotate the driveshaft CLOCKWISE until the keyway
mates with the impeller so housing slides all the way down and install housing to gearcase.

Impellers are impeller only, no gaskets, unless noted.
FORCE IMPELLERS & THERMOSTATS
Impellers are impeller only, no gaskets, unless noted.
HP/TYPE YEAR IMPELLER THERMOSTAT
9.9, 15 1985-1997 8903 NONE
9.9, 15 1998 3062 NONE
25 1989 F433065-2 NONE
25 1996-1998 3057 1042
35 1986-88 NEED MODEL I.D
CONTACT US 		NONE
40 1992-94 F433065-2 895338
40 1995-1999 3057 895338
50 1984-1994 F433065-2 895338
60 1984-1985 F474065-1 69078
25,40,50 1995-1997 3057 1042
70-75 1991-98 8900 F664068
75 1999 3056 F664068
85 1979-1989  with 1-piece driveshaft MTM-3065 F528068KIT
85 "D" & "E" Models 1989 with 2-piece driveshaft MTM89984 3559-125
85 L DRIVE-ALL 1989 MTM89984 F664068
90 1990-1994 MTM89984 F664068
90 1995 UP 3056 F664068
SPORT JET 90,
95, 120		 1995-1997 none F664068
120 ALL 1990-1994 MTM89984 F664068
120 ALL 1995 UP 3056 F664068
120 L-DRIVE ALL 1990 MTM89984 F664068
125 1984-1989   with 1-piece driveshaft MTM-3065 F528068KIT
125 "D" & "E" Models 1989 2-piece driveshaft MTM89984 3559-125
125 L-DRIVE ALL 1989 MTM89984 F664068
150 ALL 1989-1990 MTM89984 F664068
FORCE WATER PUMP KITS
EARLY STYLE GEARCASES thru 1994
WATER PUMP KIT
WITH HOUSING		 FORCE 3.5, 5 HP 1984 UP
NO LONGER
AVAILABLE
WATER PUMP KIT
WITH HOUSING		 FORCE 7.5 HP 1988 - 89
FORCE & SEARS 9.9 & 15 HP 1988 - 97		 NO LONGER AVAILABLE
WATER PUMP KIT
WITH HOUSING		 FORCE 35 1986 - 88 NO LONGER AVAILABLE
WATER PUMP KIT
'[WITH HOUSING		 FORCE 25 HP 1989
FORCE 35 HP 1988 - 91
FORCE 40 HP 1992 - 94
FORCE 50 HP 1984 THRU 1994		 FK1073
WATER PUMP KIT
WITH HOUSING		 FORCE 60 HP 1984 - 85 FK1128
CHRYSLER/FORCE
WATER PUMP KIT
WITH HOUSING		 FORCE 85, 125 HP 1983-89
(MODELS WITH 1 PIECE DRIVESHAFT)		 750-115
FORCE WATER PUMP
KIT WITH HOUSING		 1989 85 L-DRIVE, 125 HP OUTBOARD
(MOTORS WITH 2 PIECE DRIVESHAFT)		 FK1202
FORCE WATER PUMP
KIT WITH HOUSING		 90 & 120 (incl. L-DRIVE) ALL 1990-94
(MOTORS WITH 2 PIECE DRIVESHAFT )
150 HP 1989-94		 FK1204-1
FORCE with MERCURY GEARCASES
FORCE IMPELLER KIT
WITH HOUSING		 9.9, 15 HP 1998 4208
FORCE IMPELLER KIT
WITHOUT HOUSING		 25 HP  1996-98 3215
FORCE IMPELLER KIT
WITHOUT HOUSING		 40 & 50 HP 1995-99 3219
FORCE IMPELLER KIT
WITH HOUSING		 70 HP   1991-UP
75 HP  1996-98		 3529
FORCE IMPELLER KIT
WITHOUT HOUSING		 70 HP   1991-UP
75 HP  1996-98		 MTM-19453Q2
FORCE WATER PUMP
KIT WITH HOUSING		 75 HP 1999
90 & 120 HP  1995 - UP		 MTM-3570
or
MTM-3214
Impeller Kit

FORCE COOLING PARTS
DESCRIPTION PART # PRICE SELECT
F474065-1 IMPELLER
Original was a 10-vane impeller,
replacement is 6-vane
F474065-1
$43.00
MTM89984 IMPELLER F694065, 89984T
For plastic housing
w/Stainless Cup
$11.25
3056 IMPELLER 43026, 43026T
$17.50
3057 IMPELLER 47-42038, 18-3062
$17.50
3062 IMPELLER 47-42038, 18-3062
$20.25
MTM-3065 IMPELLER 803630T, F523065-1
1" tall vanes
$14.25
F433065-2 IMPELLER F436065-2, 18-8903
$25.50
8900 IMPELLER 19453T
$39.00
8903 IMPELLER
F436065-2, 18-8903
$15.50
750-115/ 2011 WATERPUMP KIT FK1069
$99.75
3215 IMPELLER/GASKET KIT
47-85089Q, 18-3215
Click Image For Larger

$34.00
3219 WATERPUMP KIT
821354A
Click Image For Larger

$39.50
3529 WATERPUMP KIT 812966A11
$165.50
FK1073 WATERPUMP KIT FK1073
$313.00
FK1202-1 WATERPUMP KIT FK1202-1
$105.75
No Longer Available
FK1204-1 WATERPUMP KIT FK1204-1
$111.00

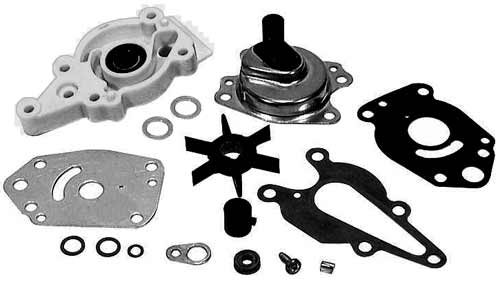

4208 WATERPUMP KIT
46-42089A
Click Image For Larger

$37.50

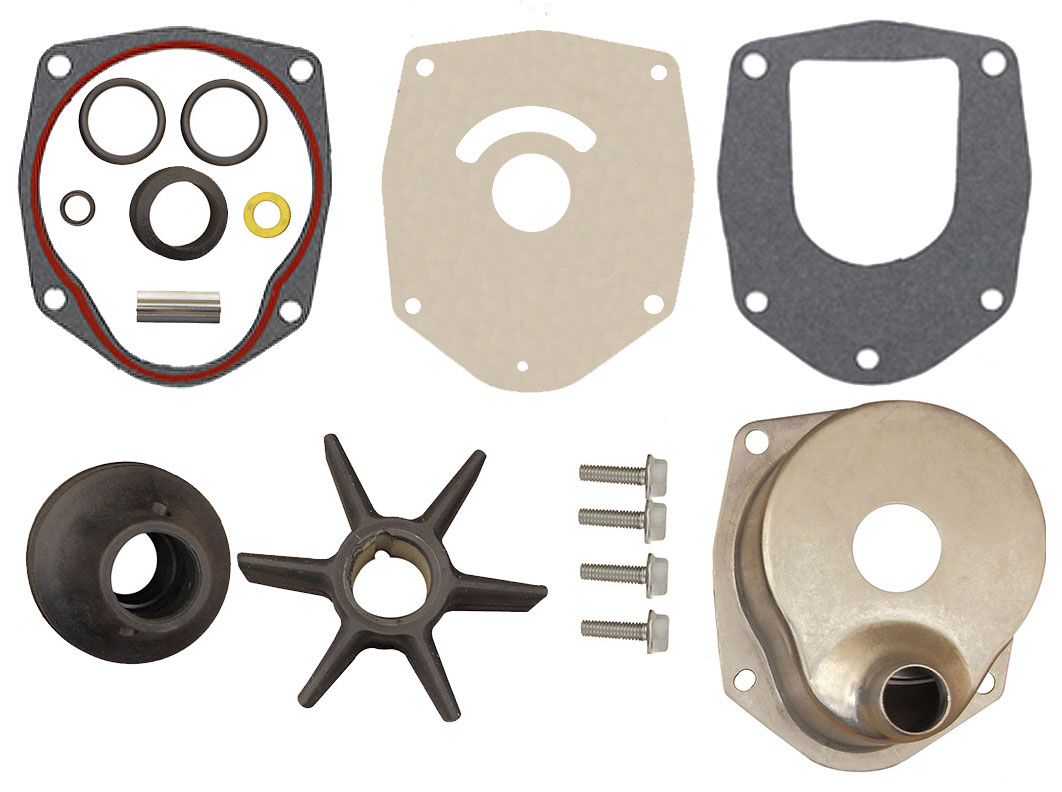

MTM-3570 WATERPUMP KIT
Click Image For Larger

$73.00

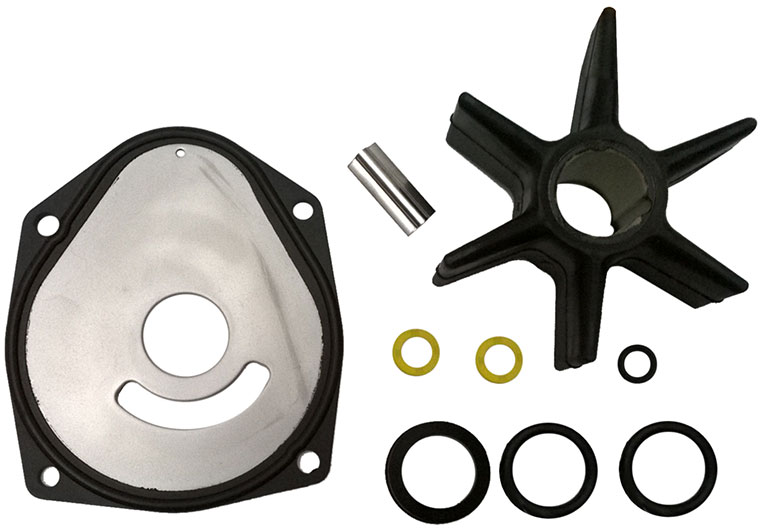

MTM-3214 IMPELLER KIT
as above (MTM-3570), but no housing
Click Image For Larger

$39.00

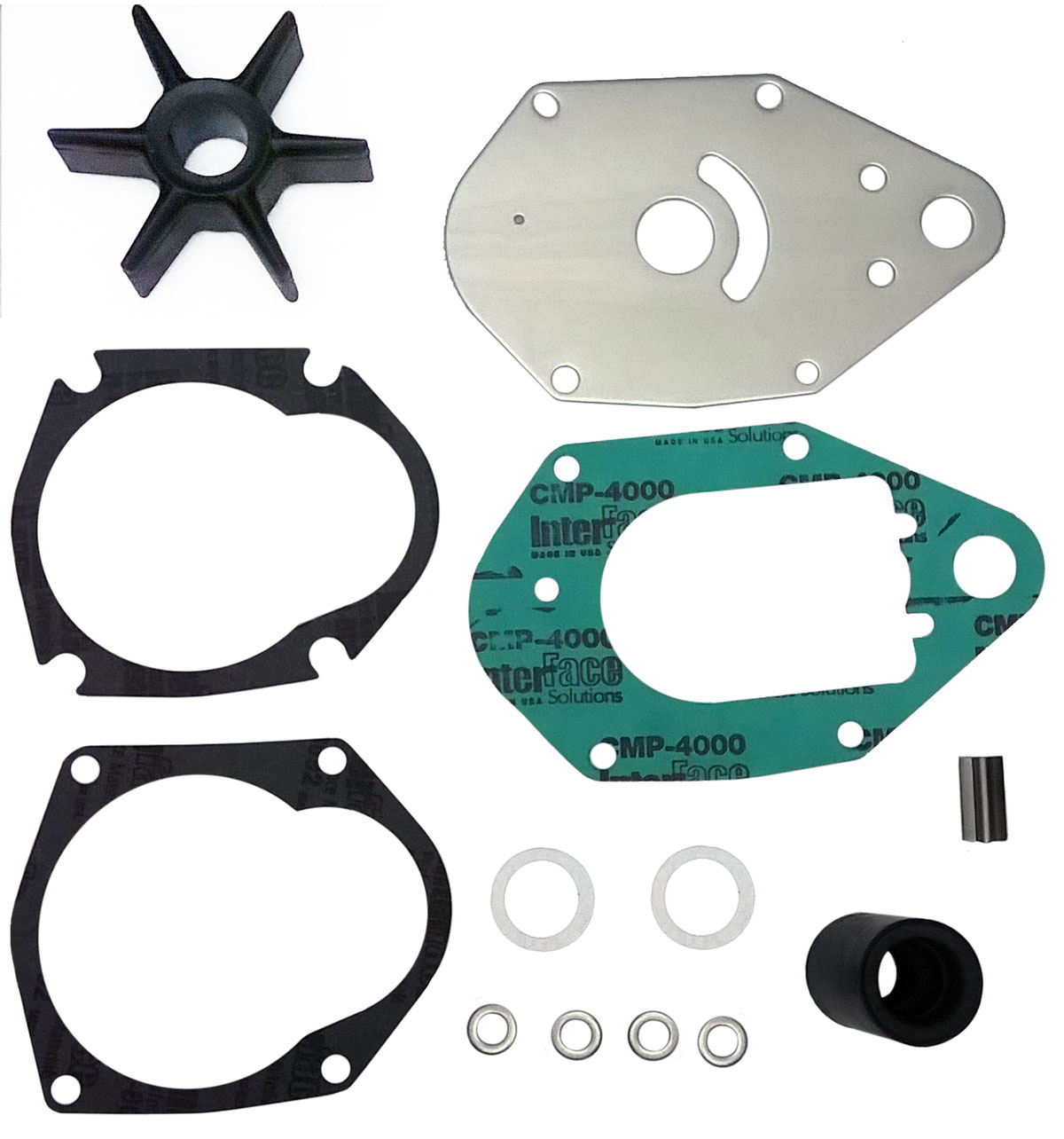

MTM-19453Q2 WATERPUMP KIT
Click Image For Larger

$49.50
FK1128 WATERPUMP KIT
FK1128 No Longer Made.
LIMITED QUANTIY AVAILABLE!
$88.00
1042 THERMOSTAT 130° 895338, 18-3556, F97068
$34.00
F528068KIT THERMOSTAT KIT 110°
CHRYSLER-FORCE
3 & 4 CYLTHRU 1989
EXCEPT 1989 85-125 "D" &"E" MODELS F528068 + gaskets, 18-3559
$53.75
3559-125 THERMOSTAT KIT 110°
1989 FORCE 85 & 125 "D" &"E" MODELS F528068 + gaskets, 18-3559
$59.00
18-3549 THERMOSTAT 18-3549, 14586






$26.25
F664068 Kit F664068 THERMOSTAT KIT 130°
$52.00

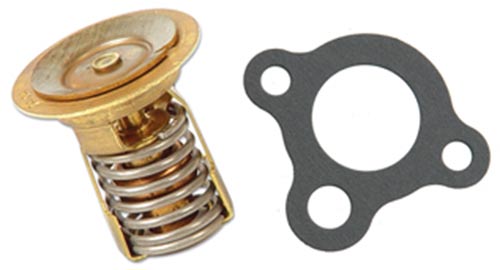

69078 THERMOSTAT KIT 140° F664068
$35.75
895338 Kit THERMOSTAT KIT 130° 895338
$39.00
0854 Extra Gasket
for above 27-828319
$2.00
F658504 Grommet for most
later 2-cylinder thermostats F658504
$5.25
F84504 Grommet for most
early 2-cylinder Chrysler thermostats
F658504 Groove inside, fits around thermostat
$9.90
18-0417 HOUSING GASKET
for Housings using
impeller # F438065-1 F84031
$2.00
27-819377 T-STAT GASKET
Many older 2-cylinder Chrysler 27-819377
$2.00
