CARB KIT, FUEL PUMP, and
GEARCASE SEAL KIT PARTS

Need help with your carburetor?
Try our carburetor help pages #1 and #2 or our carb tech data page.

Concerned about your gearcase or water pump? Try our gearcase tips page.
    Please Note: Carb kits are 1 per carburetor. If you have more than 1 carburetor
 then you need  more than 1 kit

CHRYSLER/FORCE CARBURETOR KIT APPLICATION
Many models not listed are no longer available.
Please call if there is any doubt which kit to use.

HP CARBURETOR MODELS
# CYLS
CARB KIT
3.6 THRU 105 HP (CHRYSLER) USING
TILLOTSON MODELS CO,WB,TC
—> WILL NOT FIT CARBS WITH PRESSED-IN NEEDLE SEATS! <— SEE BELOW
1 THRU 4

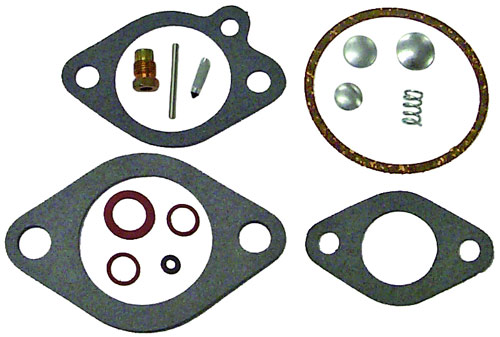

7037
(OEM # F10020, FK10004
FK10005, FK10108
FRK739)
55 THRU 90 HP  (FORCE) USING CARBURETORS WITH CORK BOWL GASKET
—> WILL NOT FIT CARBS WITH PRESSED-IN NEEDLE SEATS! <— SEE BELOW
3, 4

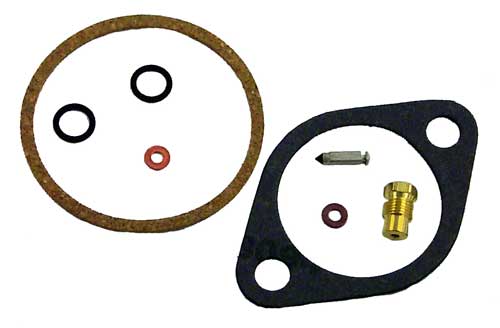

7033

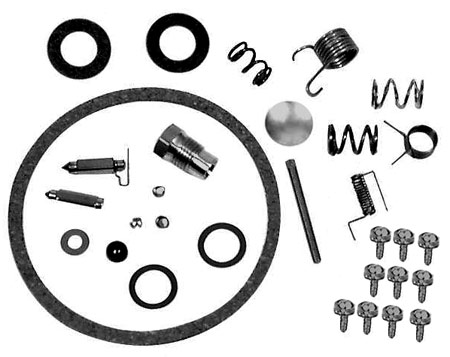

(OEM # FK10003, FK10026
FK10053, FK10102-1)
50 HP FORCE 1988-89
85 HP FORCE 1979-84
"WB-21" series carbs
SCREW-IN NEEDLE SEAT
Complete kit minus float
—> WILL NOT FIT CARBS WITH PRESSED-IN NEEDLE SEATS! <— SEE BELOW
3
7033
(OEM # FK10003, FK10026
FK10053, FK10102-1)
85 HP FORCE 1983-85
"WE-4" series carbs (bottom jet style)
PRESSED-IN NEEDLE SEAT
Complete kit minus float
3
85 HP FORCE 1985-86
"WE-9" series carbs (side jet style)
PRESSED-IN NEEDLE SEAT
Gaskets Only
3
85 HP FORCE 1987-89 & 1989 L-Drive
"WE-18" series carbs (side jet style)
PRESSED-IN NEEDLE SEAT
Complete kit minus float
3
125 HP FORCE ALL MODELS ALL YEARS
PRESSED-IN NEEDLE SEAT
Complete kit minus float
4
90 HP FORCE ALL MODELS ALL YEARS
Gaskets Only
3
90 HP FORCE ALL MODELS ALL YEARS
Complete kit minus float
3
120 HP FORCE 1990-1995
Gaskets Only
4
120 HP FORCE 1990-1995
Complete kit minus float
4
120 HP FORCE 1996-1997
Gaskets Only
4
120 HP FORCE 1990-1995
Complete kit minus float
4
120 HP FORCE 1998-1999
Gaskets Only
4
120 HP FORCE 1998-1999
Complete kit minus float
4
150 HP FORCE ALL MODELS ALL YEARS
5
NLA
COMPONENTS PARTS
ONLY


CHRYSLER/FORCE GEARCASE SEAL KIT APPLICATION

HP ENGINE MODEL YEAR
# CYLS
GEARCASE SEAL KIT
3.5 80-85
2
4 79-86
2
5 88-98
2
6 Long Shaft 79-80
2
N/A -- Component Parts Only
6 Short Shaft 79-82
2
7.5 Long Shaft 79-84
2
N/A -- Component Parts Only
7.5 Short Shaft 79-85
2
9.9 Long Shaft 79-84
2
N/A -- Component Parts Only
9.9 Short Shaft 79-84
2
12 Long Shaft 79
2
15 Short Shaft 79-84
2
N/A -- Component Parts Only
15 84-98
2
20 79-82
2
HP ENGINE MODEL YEAR
# CYLS
GEARCASE SEAL KIT
25 72-84
2
25 89
2
25 96-98
2
30 79-82
2
35 Short Shaft 79-82
2
35 Long Shaft 83-88
2
35 88-91
2
40 92-94
2
40 95-99
2
Mercury Marine 823547A2
45 79-84
2
50 Chrysler 81-83
2
50 Force 84-94
2
HP ENGINE MODEL YEAR
# CYLS
GEARCASE SEAL KIT
50 95-99
2
Mercury Marine 823547A2
55 74-82   (2-piece Case)
2
55 1983   (1-piece Case)
2
60 1984   (2-piece Case)
2
60 1985   (1-piece Case)
2
65 1978   (1-piece Case)
2
70 91-95
3
70-75 1979   (2-piece Case)
3
75 75-81   (2-piece Case)
3
75 82-84   (1-piece Case)
3
75 96-98
3
75 1999
3
HP ENGINE MODEL YEAR
# CYLS
GEARCASE SEAL KIT
85 79-88
3
85 1989 "A,B,C,E" Models
3
85 1989 "D,F,G,H" Models
3
90 83-84
3
90 91-94
3
90 95-99
3
100 79-84
4
105 82-83
4
115 79-84
4
120 90-94
4
120 95-99
4
HP ENGINE MODEL YEAR
# CYLS
GEARCASE SEAL KIT
125 81-88
4
125 1989   except "D" models
4
125 1989   "D" models
4
140 1979
4
140 83-84
4
150 89-94
5
L-DRIVE ALL
3 & 4


CHRYSLER FUEL PUMP KIT APPLICATION

HP YEAR
# CYLS
FUEL PUMP KIT
4.5 THRU 20HG ALL YEARS
2
35
35
45
45
55		 350 THRU 355HA,HC,HD
356/357HA,HB
450 THRU 457HA,HC,HD
458/459HA,HB
551HA, 554 THRU 559HA,HD,HF
2
70 706/707HA,HC,HD,HE
3
85
105
120
120
130
135
150		 856/857HA,HC,HD
1056/1057HA,HB,HC,HD
1206/1207HA,HB,HC,HD
1208HA,HB,HC
1306/1307HA
1358HA,HB,HC
1508HA
4



FORCE FUEL PUMP KIT APPLICATION

HP YEAR
# CYLS
FUEL PUMP KIT
5 88-98
2
7.5 1985
2
9.9 & 15 84-98
2
25 1989
2
35 thru 91
2
40/50 1992 "C" models THRU E065371
2
40/50 92-94 E065372-E093669
2
40/50 1995, 1997-99
E093700 - UP
2
50 84-91, 92 "A"{
2
60 84-85
2
70 91 "B", 92 "C" S#E000001-E039023 ("8"-shaped pump)
3
70 92-95 square fuel pump
2
75 96-99
3
85 83-89 incl. 85 HP L-Drive
3
HP YEAR
# CYLS
FUEL PUMP KIT
90 1990 ("8"-shaped pump)
3
90 91 (ALL) & 92 A,B,C models ("8"-shaped pump)
3
90 92 up (square pump)
3
90 L-Drive 90-91
3
90/95 Sport Jet 93-97
3
120 90 "A"-91 "C"
4
120 91 "D" thru 1999
4
120/125 L-Drives & 120 Sport Jet 89-92
4
125 84-89
4
150 89-92 (thru S#E065371)
4
150 93 up
4

GASKETS, CARB AND GEARCASE SEAL KITS
DESCRIPTION
PART #
PRICE
 SELECT
CARB KIT
7033
$22.00
CARB KIT
7037
$15.00
CARB KIT
7023
$5.00
CARB KIT
FK10125
$22.00
CARB KIT
FK10139
$5.00
CARB KIT
FK10177
$21.00
CARB KIT
FK10103-2
$54.00
CARB KIT
FK10220
$25.00
CARB KIT
Gaskets Only
27-809736A1
$5.00
CARB KIT
Complete kit minus float
27-809735A1
$33.00
G.C. SEAL KIT
2624
$59.00
G.C. SEAL KIT
2626
$60.00
G.C. SEAL KIT
1909
$27.00
G.C. SEAL KIT
1910
$35.50
G.C. SEAL KIT
1911
$53.00
G.C. SEAL KIT
1908
$43.50
G.C. SEAL KIT
2635
$41.00
G.C. SEAL KIT
2636
$15.00
G.C. SEAL KIT
2637
$33.00
G.C. SEAL KIT
2638
$27.00
G.C. SEAL KIT
2639
$28.00
G.C. SEAL KIT
2640
$65.00
G.C. SEAL KIT
823547A2
(OEM ONLY)
$64.00
FUEL PUMP KIT
1812
$12.00
FUEL PUMP KIT
7805
$5.00
FUEL PUMP KIT
7806
$17.00
DON'T SEE WHAT YOU NEED? JUST ASK.
 QUICK QUOTE FORM

Now that you have found what you need, please order it using the shopping cart above, the secure quick order form, or call in your order . We pay the freight out in USA on all orders over $100.00. Orders less than this amount will have a shipping and handling charge of $8.75 added. Some bulky and heavy items will incur additional charges. You will be notified beforehand if this is the case. Remember, all orders receive free technical support from the MasterTech!
